Category |
Isolators
Optoisolators
Logic Output Optoisolators
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Number of Channels |
2
|
|
|
Inputs - Side 1/Side 2 |
1/1
|
|
|
Voltage - Isolation |
3750Vrms
|
|
|
Common Mode Transient Immunity (Min) |
20kV/µs
|
|
|
Input Type |
Logic
|
|
|
Output Type |
Push-Pull, Totem Pole
|
|
|
Current - Output / Channel |
10 mA
|
|
|
Data Rate |
15Mbps
|
|
|
Propagation Delay tpLH / tpHL (Max) |
60ns, 60ns
|
|
|
Rise / Fall Time (Typ) |
6.5ns, 6.5ns
|
|
|
Voltage - Forward (Vf) (Typ) |
-
|
|
|
Current - DC Forward (If) (Max) |
-
|
|
|
Voltage - Supply |
3V ~ 3.6V, 4.5V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 110°C
|
|
|
Mounting Type |
Surface Mount
|
|
|

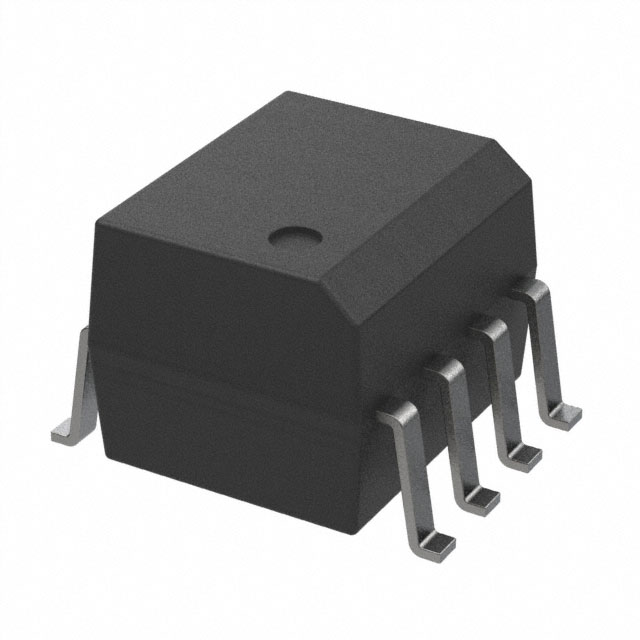

Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SOIC
|
|
|
Base Product Number |
FOD8012 |
