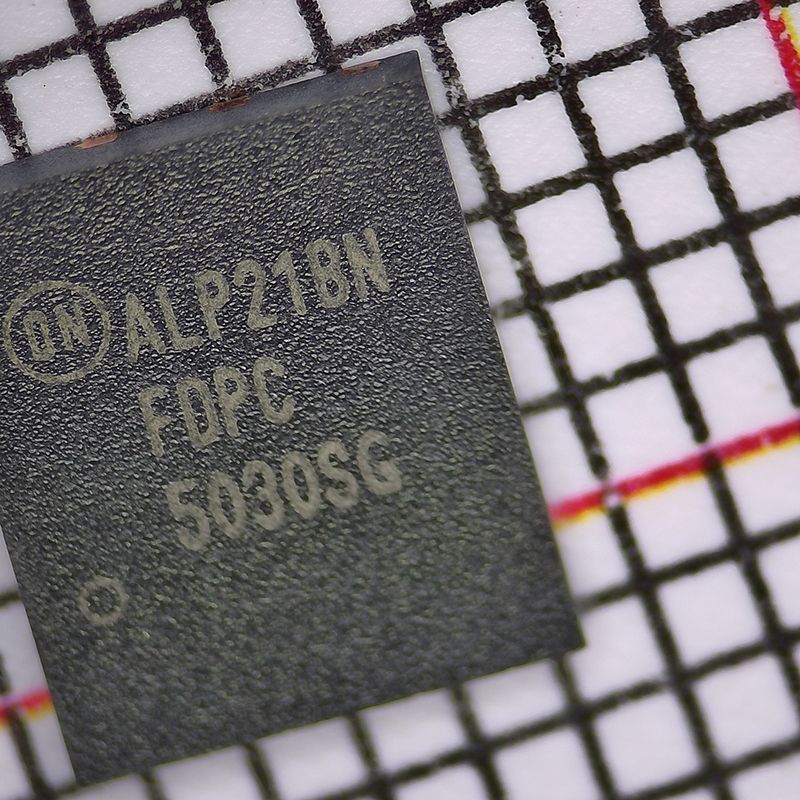

FDPC5030SG
零件编号：
FDPC5030SG
产品分类：
固态继电器（SSR）
制造商：
ADDA USA
描述：
MOSFET 2N-CH 30V 17A PWRCLIP56
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
PowerTrench® |
|
|
Packaging |

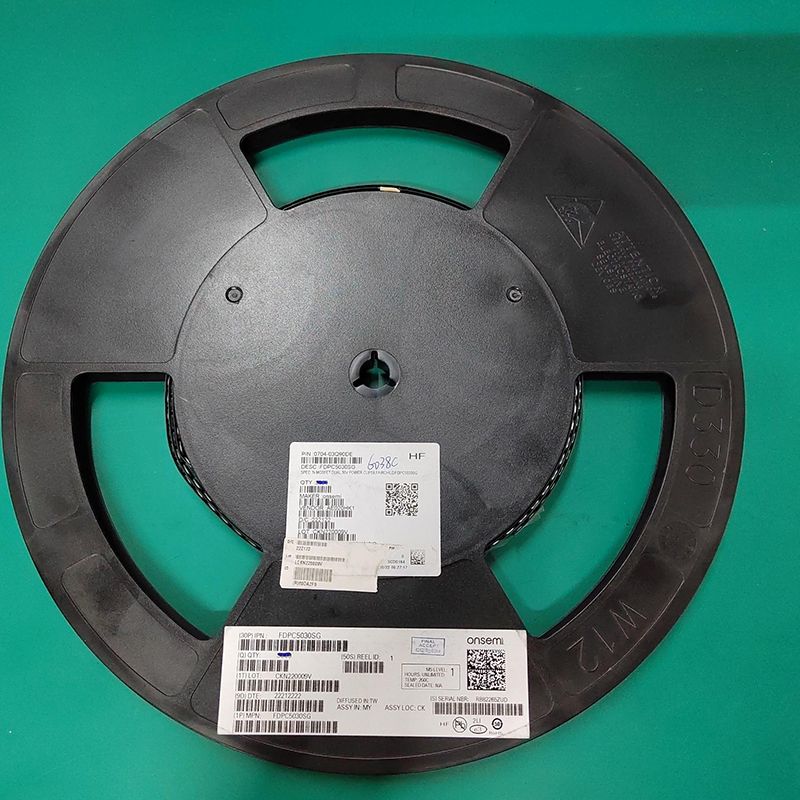

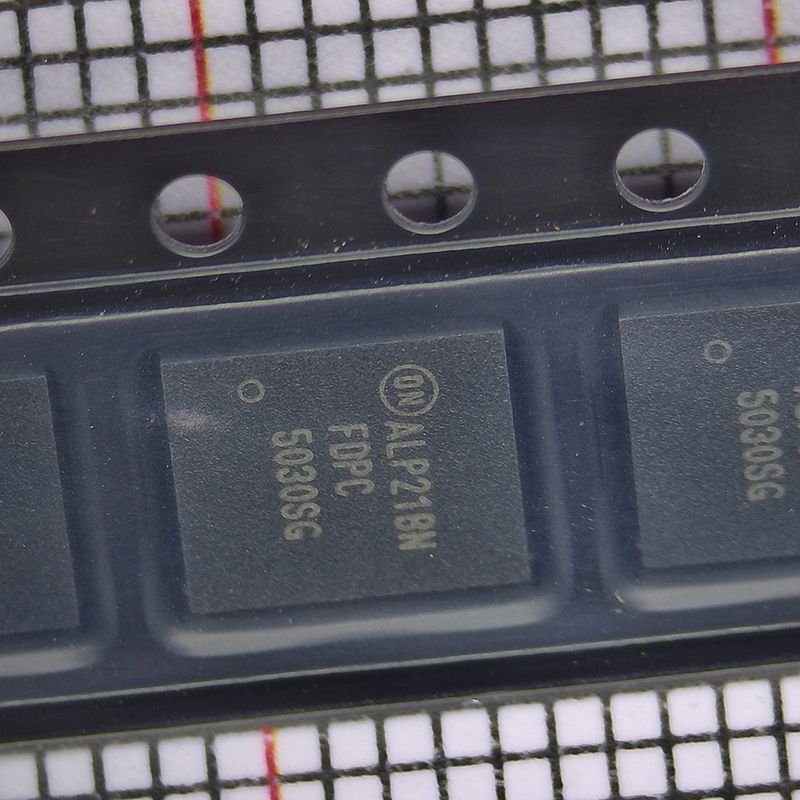

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual) Asymmetrical
|
|
|
FET Feature |
-
|
|
|
Drain to Source Voltage (Vdss) |
30V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
17A, 25A
|
|
|
Rds On (Max) @ Id, Vgs |
5mOhm @ 17A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
24nC @ 10V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
1715pF @ 15V
|
|
|
Power - Max |
1W, 1.1W
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

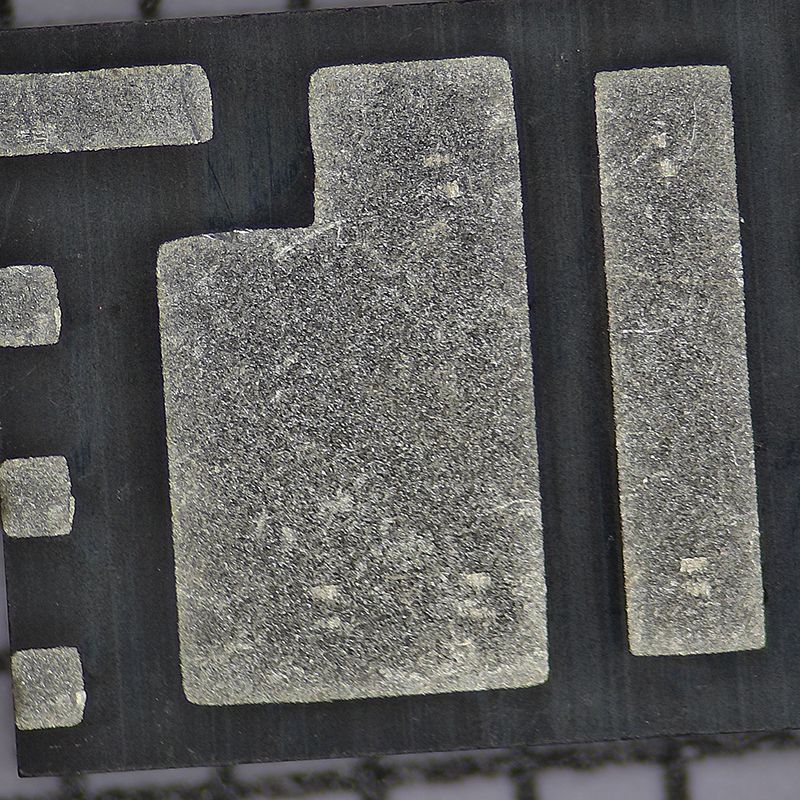

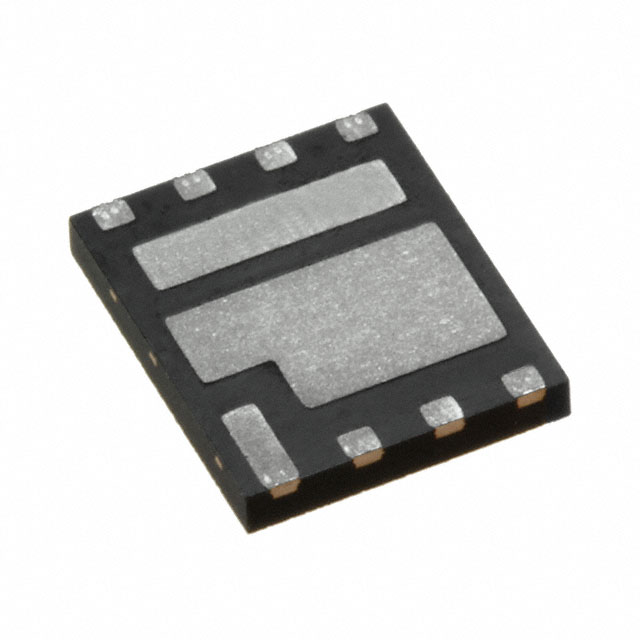

8-PowerWDFN
|
|
|
Supplier Device Package |
Power Clip 56
|
|
|
Base Product Number |
FDPC5030 |
