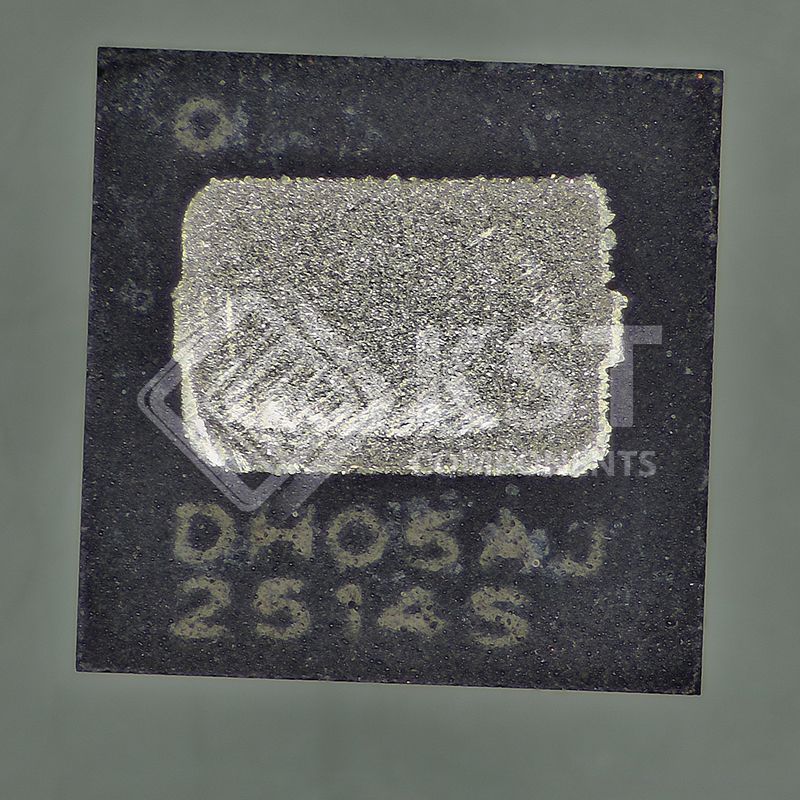

FDMC2514SDC
零件编号：
FDMC2514SDC
产品分类：
固态继电器（SSR）
制造商：
ADDA USA
描述：
MOSFET N-CH 25V 24A/40A DLCOOL33
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
Dual Cool™, PowerTrench®, SyncFET™ |
|
|
Packaging |

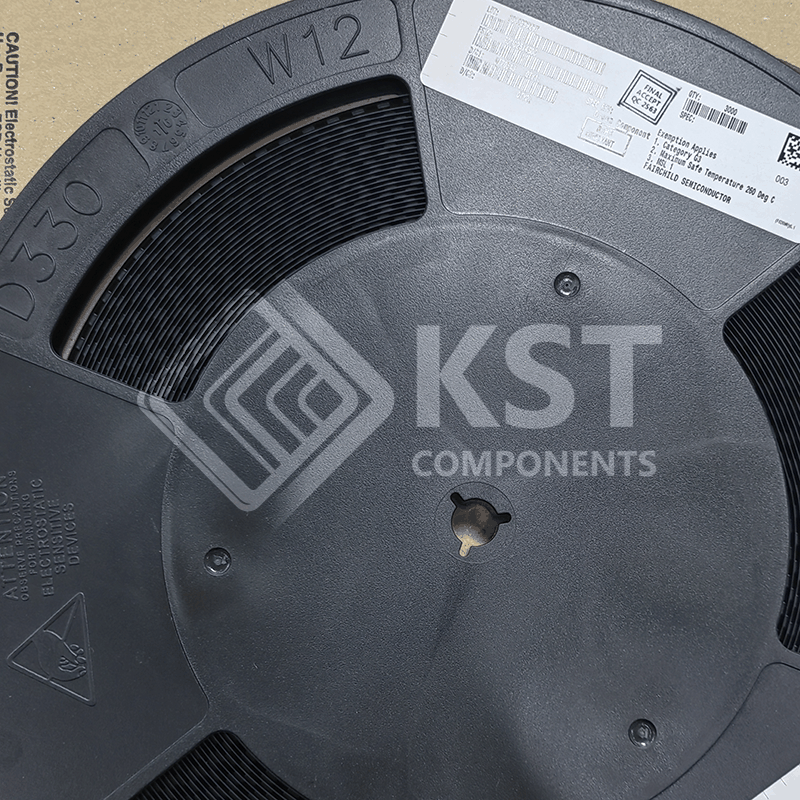

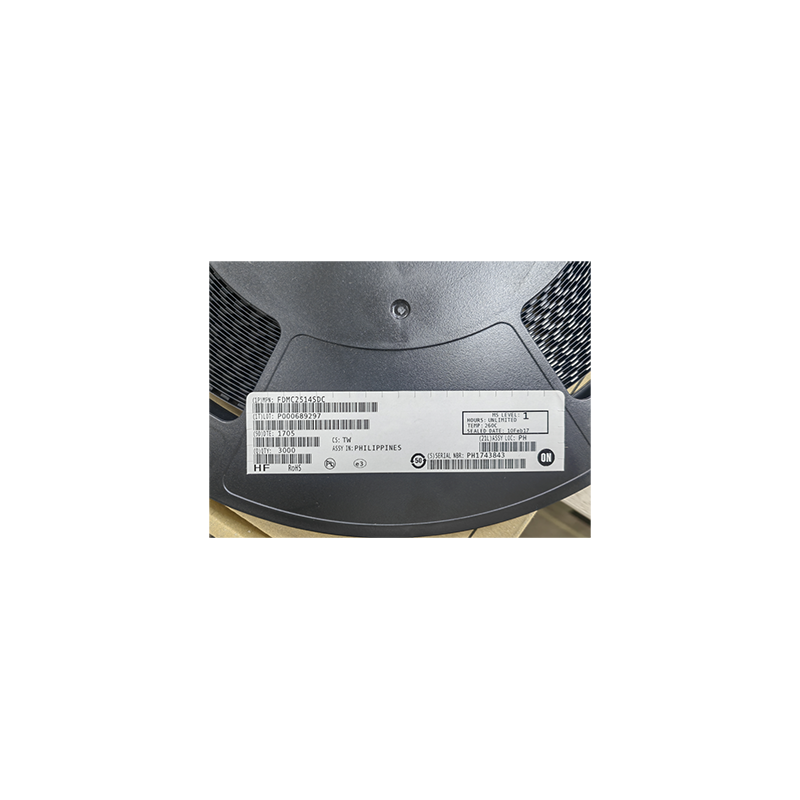

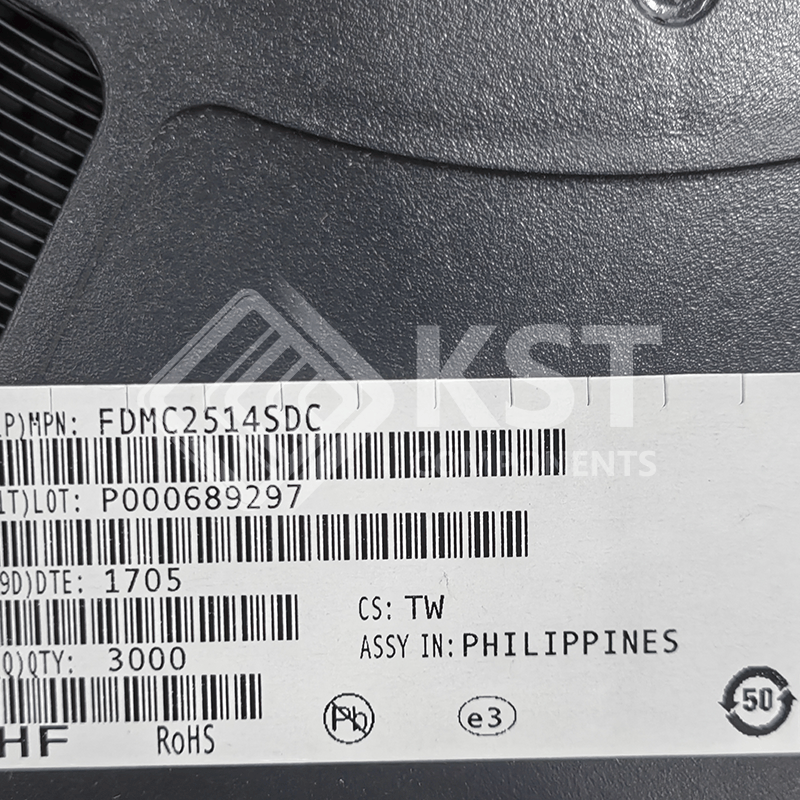

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Obsolete
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
25 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
24A (Ta), 40A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
4.5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
3.5mOhm @ 22.5A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3V @ 1mA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
44 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
2705 pF @ 13 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
3W (Ta), 60W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
Dual Cool ™ 33
|
|
|
Package / Case |

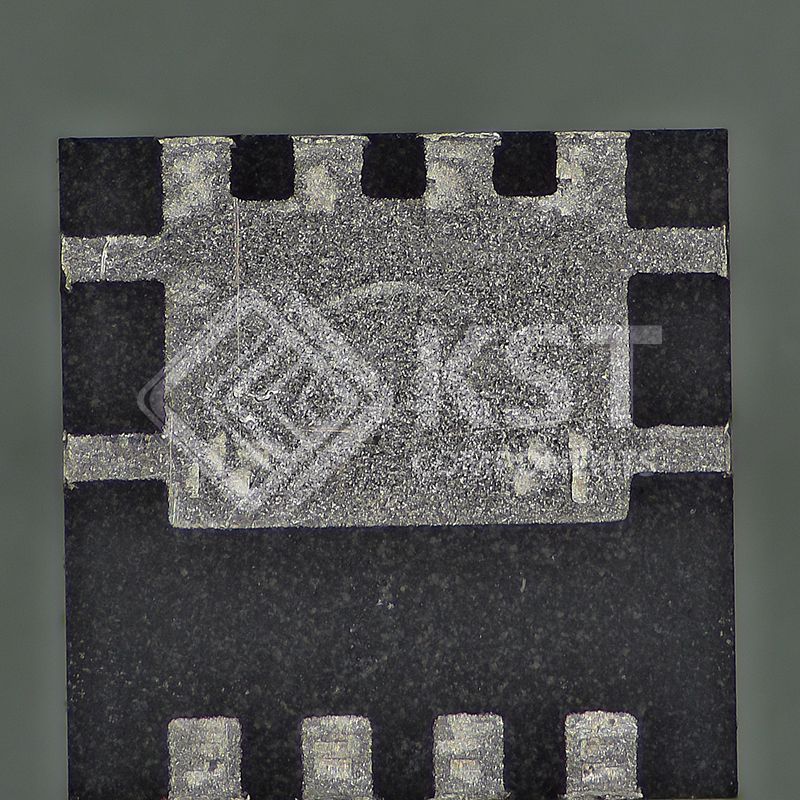

8-PowerTDFN |
|
|
Base Product Number |
FDMC25 |
