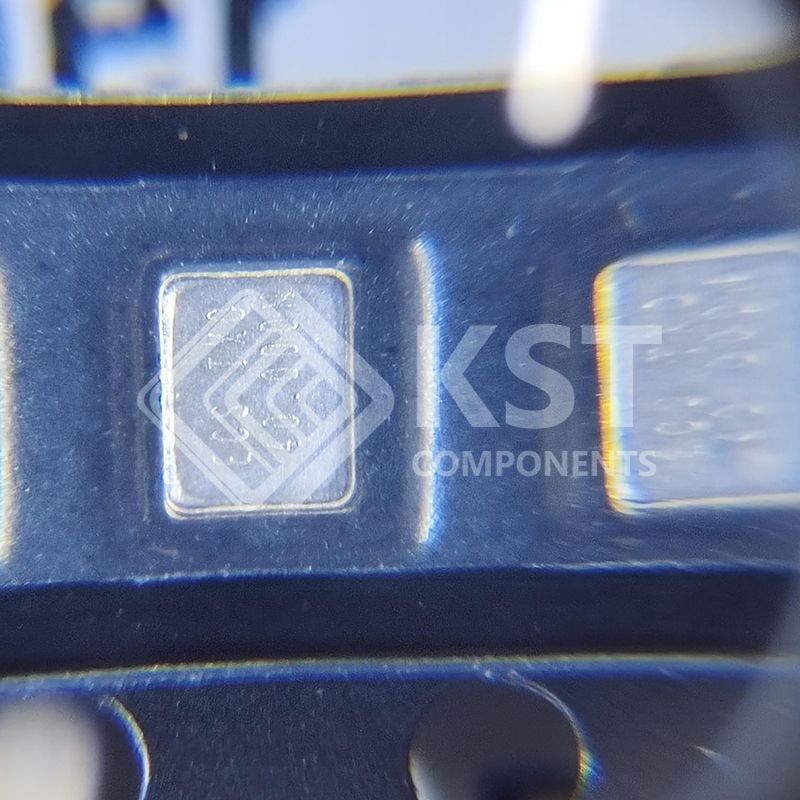

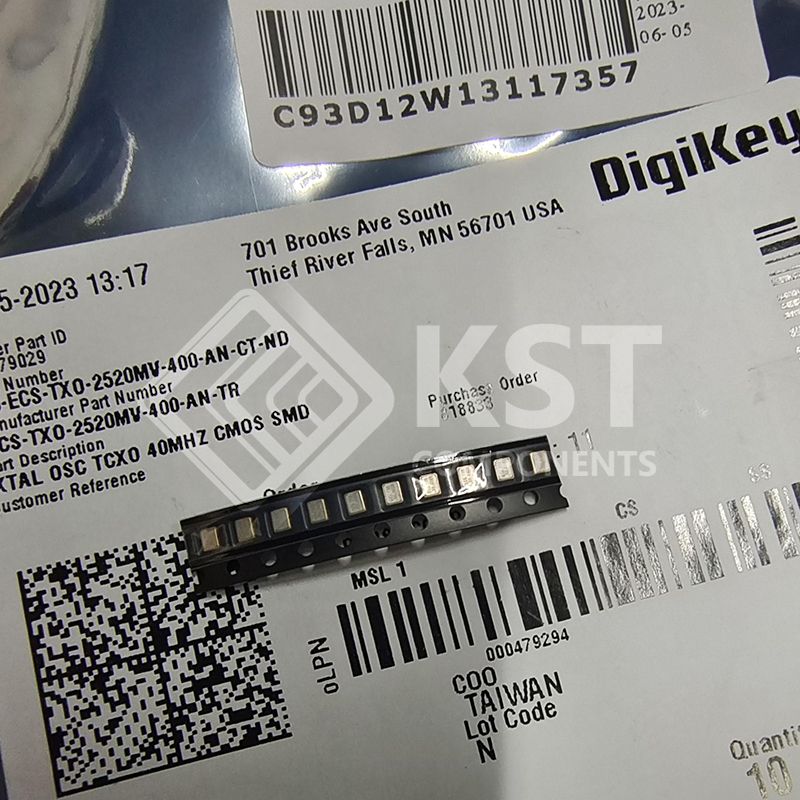

ECS-TXO-2520MV-400-AN-TR
零件编号：
ECS-TXO-2520MV-400-AN-TR
产品分类：
AC/DC 可配置电源模块
制造商：
Amphenol CONEC
描述：
XTAL OSC TCXO 40MHZ CMOS SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Crystals, Oscillators, Resonators
Oscillators
|
|
|
Mfr |
ECS Inc. |
|
|
Series |
ECS-TXO-2520MV MultiVolt™ |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Base Resonator |
Crystal |
|
|
Type |
TCXO |
|
|
Frequency |
40 MHz
|
|
|
Function |
Enable/Disable
|
|
|
Output |
CMOS
|
|
|
Voltage - Supply |
1.7V ~ 3.6V
|
|
|
Frequency Stability |
±2.5ppm
|
|
|
Absolute Pull Range (APR) |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Spread Spectrum Bandwidth |
-
|
|
|
Current - Supply (Max) |
6mA
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
4-SMD, No Lead
|
|
|
Supplier Device Package |
4-VDFN (3.2x2.5)
|
|
|
Size / Dimension |
0.098" L x 0.079" W (2.50mm x 2.00mm)
|
|
|
Height - Seated (Max) |
0.039" (1.00mm)
|
|
|
Current - Supply (Disable) (Max) |
-
|
