Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Motor Drivers, Controllers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Motor Type - Stepper |
Bipolar
|
|
|
Motor Type - AC, DC |
Brushed DC
|
|
|
Function |
Driver - Fully Integrated, Control and Power Stage
|
|
|
Output Configuration |
Half Bridge (2)
|
|
|
Interface |
I2C
|
|
|
Technology |
Power MOSFET
|
|
|
Step Resolution |
-
|
|
|
Applications |
Battery Powered
|
|
|
Current - Output |
1A
|
|
|
Voltage - Supply |
2.75V ~ 6.8V
|
|
|
Voltage - Load |
2.75V ~ 6.8V
|
|
|
Operating Temperature |
-40°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

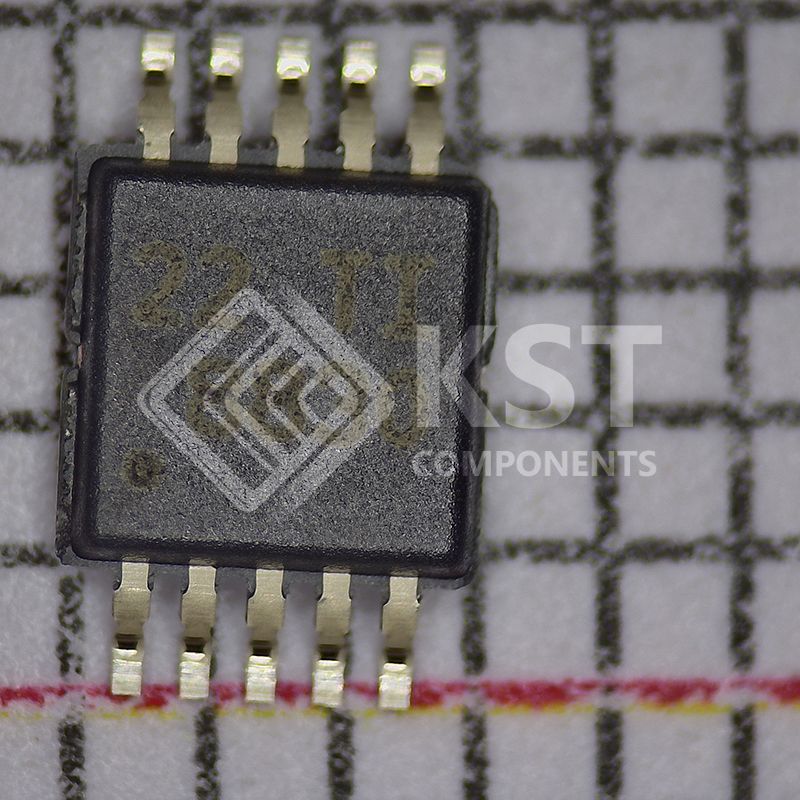

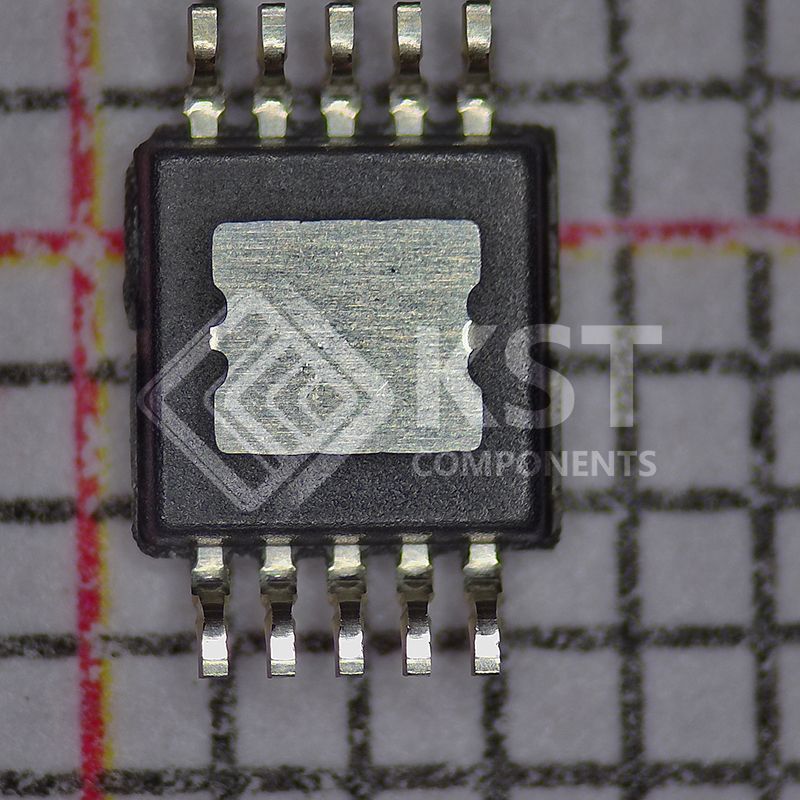

10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
|
|
|
Supplier Device Package |
10-HVSSOP
|
|
|
Base Product Number |
DRV8830 |
