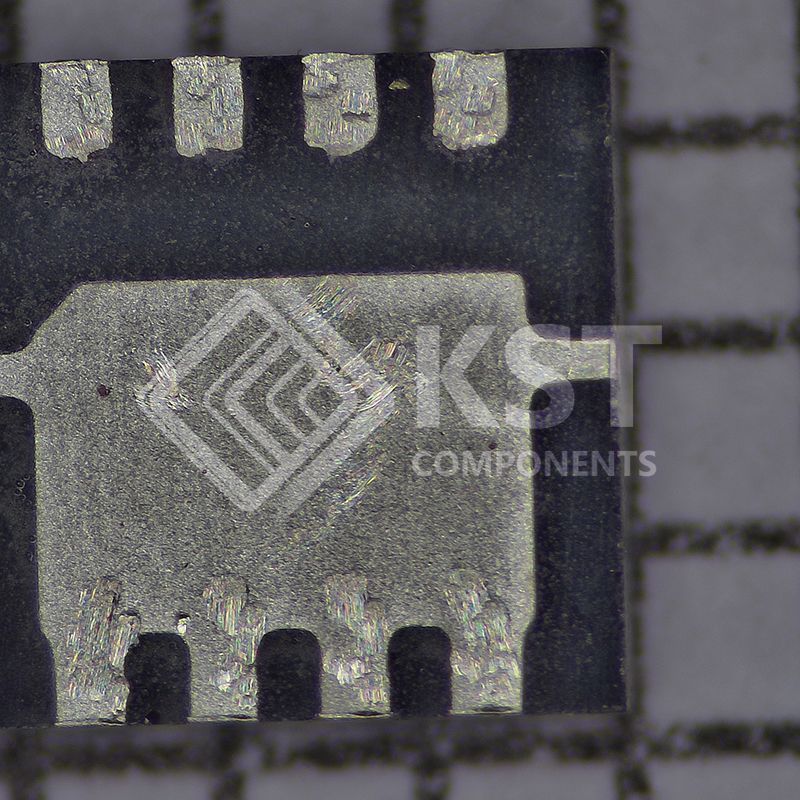

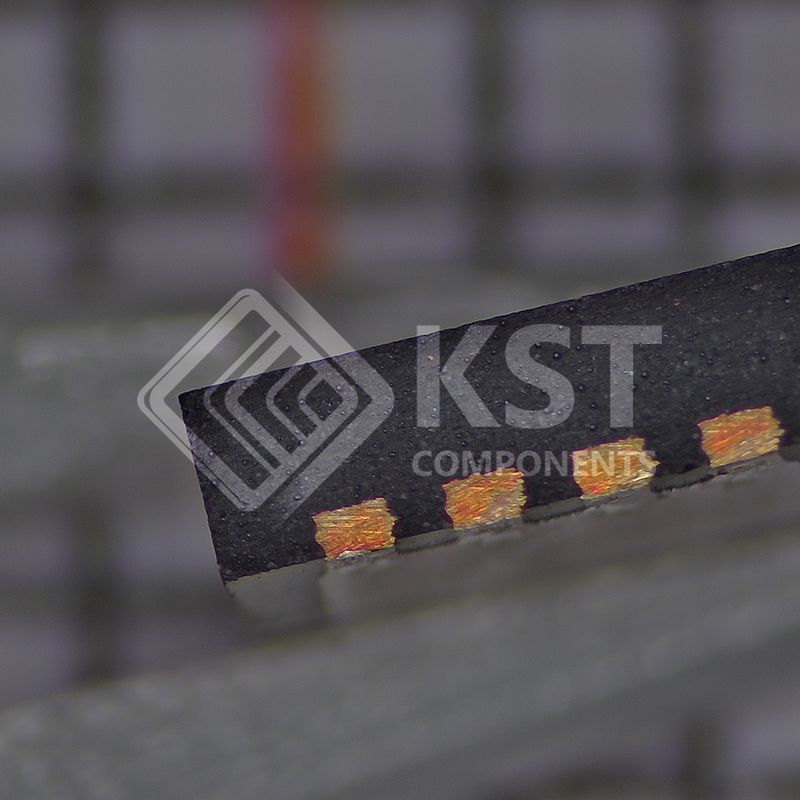

CSD25404Q3
零件编号：
CSD25404Q3
产品分类：
固态继电器（SSR）
制造商：
3PEAK
描述：
MOSFET P-CH 20V 104A 8VSON
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
NexFET™ |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
P-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
20 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
104A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
1.8V, 4.5V
|
|
|
Rds On (Max) @ Id, Vgs |
6.5mOhm @ 10A, 4.5V
|
|
|
Vgs(th) (Max) @ Id |
1.15V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
14.1 nC @ 4.5 V
|
|
|
Vgs (Max) |
±12V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
2120 pF @ 10 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
2.8W (Ta), 96W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
8-VSONP (3x3.3)
|
|
|
Package / Case |
8-PowerVDFN |
|
|
Base Product Number |
CSD25404 |
