Category |
Integrated Circuits (ICs)
Power Management (PMIC)
LED Drivers
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |

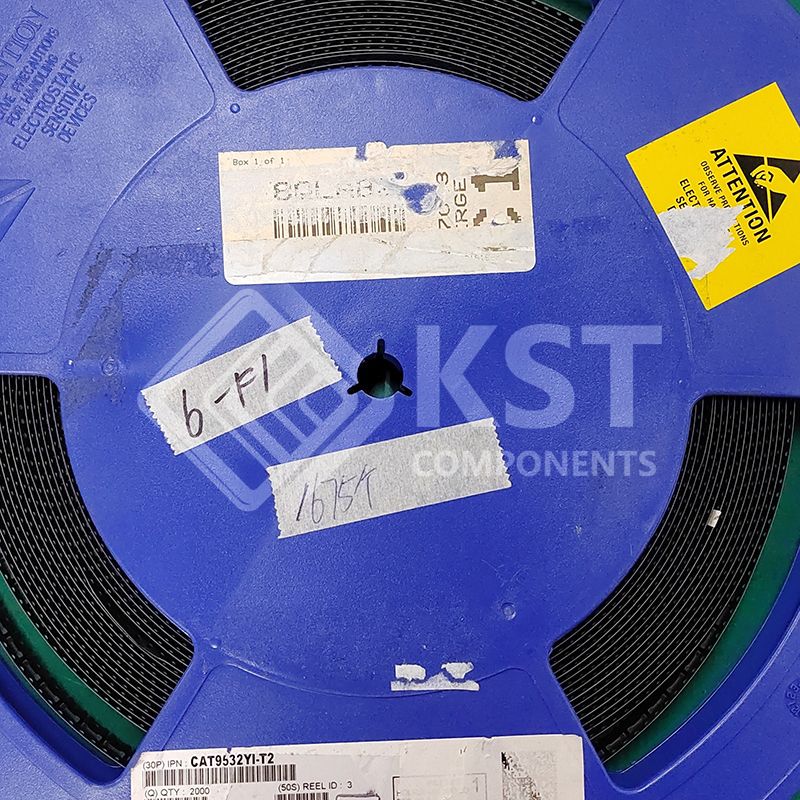

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Linear
|
|
|
Topology |
-
|
|
|
Internal Switch(s) |
Yes
|
|
|
Number of Outputs |
16
|
|
|
Voltage - Supply (Min) |
2.3V
|
|
|
Voltage - Supply (Max) |
5.5V
|
|
|
Voltage - Output |
-
|
|
|
Current - Output / Channel |
25mA
|
|
|
Frequency |
400kHz
|
|
|
Dimming |
I2C
|
|
|
Applications |
Backlight
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

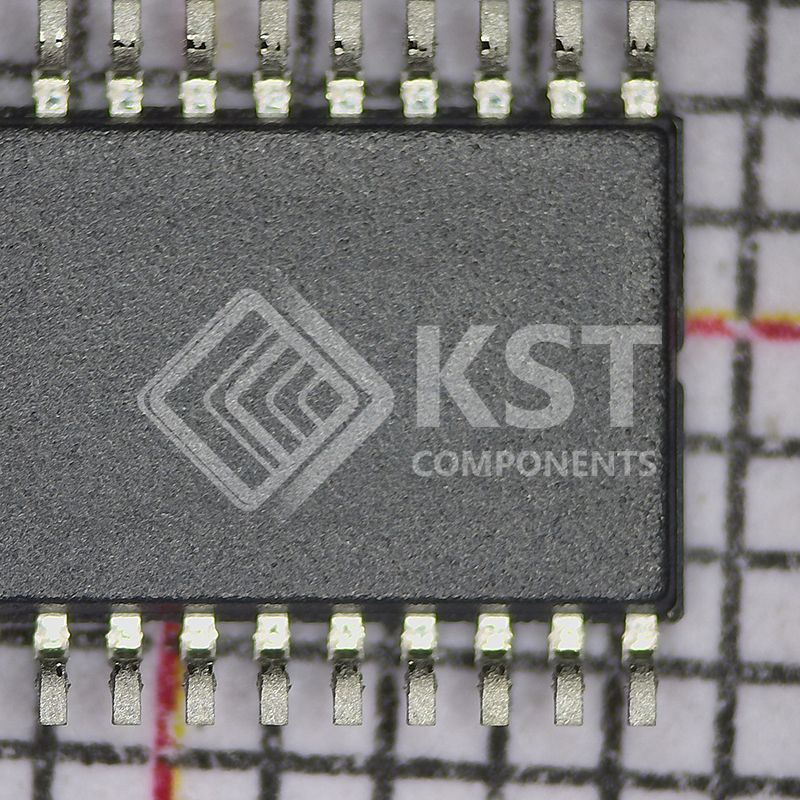

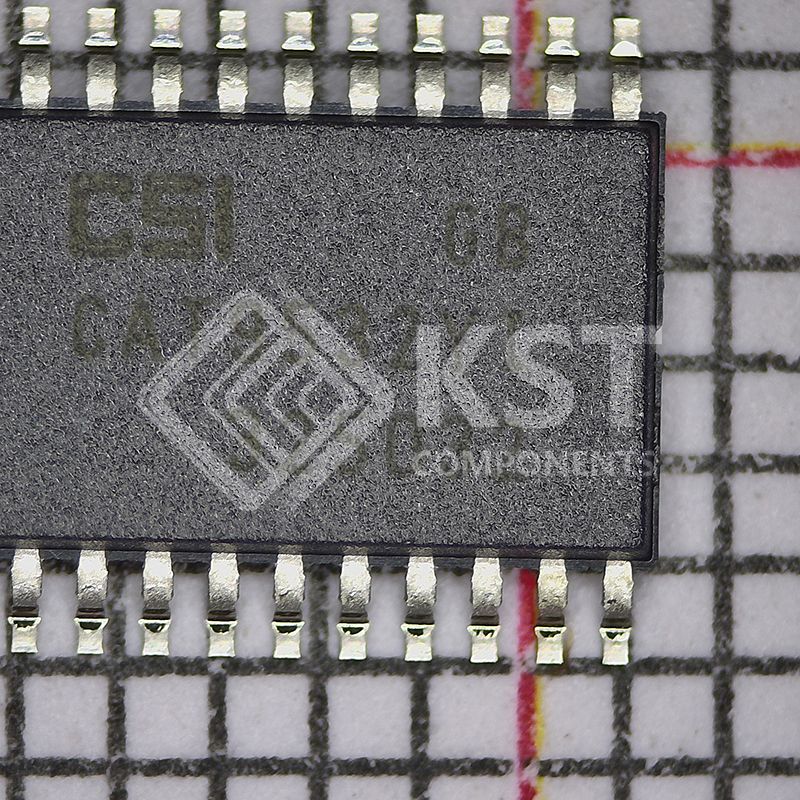

24-TSSOP (0.173", 4.40mm Width)
|
|
|
Supplier Device Package |
24-TSSOP
|
|
|
Base Product Number |
CAT9532 |
