Category |
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Single Bipolar Transistors
|
|
|
Mfr |
Nexperia USA Inc. |
|
|
Series |
-
|
|
|

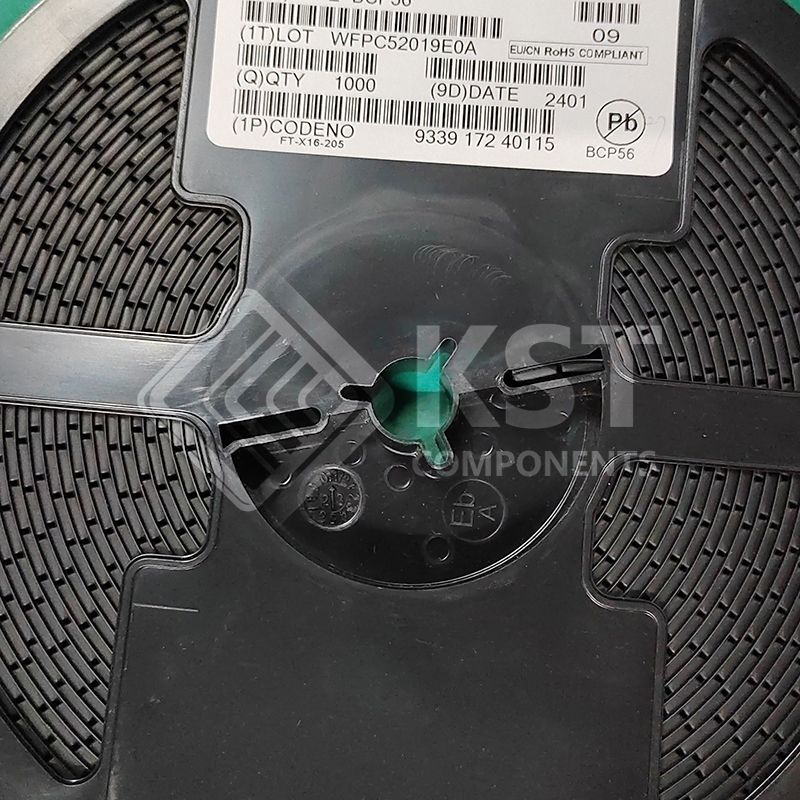

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Transistor Type |
NPN |
|
|
Current - Collector (Ic) (Max) |
1 A
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
80 V
|
|
|
Vce Saturation (Max) @ Ib, Ic |
500mV @ 50mA, 500mA
|
|
|
Current - Collector Cutoff (Max) |
100nA (ICBO)
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
63 @ 150mA, 2V
|
|
|
Power - Max |
960 mW
|
|
|
Frequency - Transition |
180MHz
|
|
|
Operating Temperature |
150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|

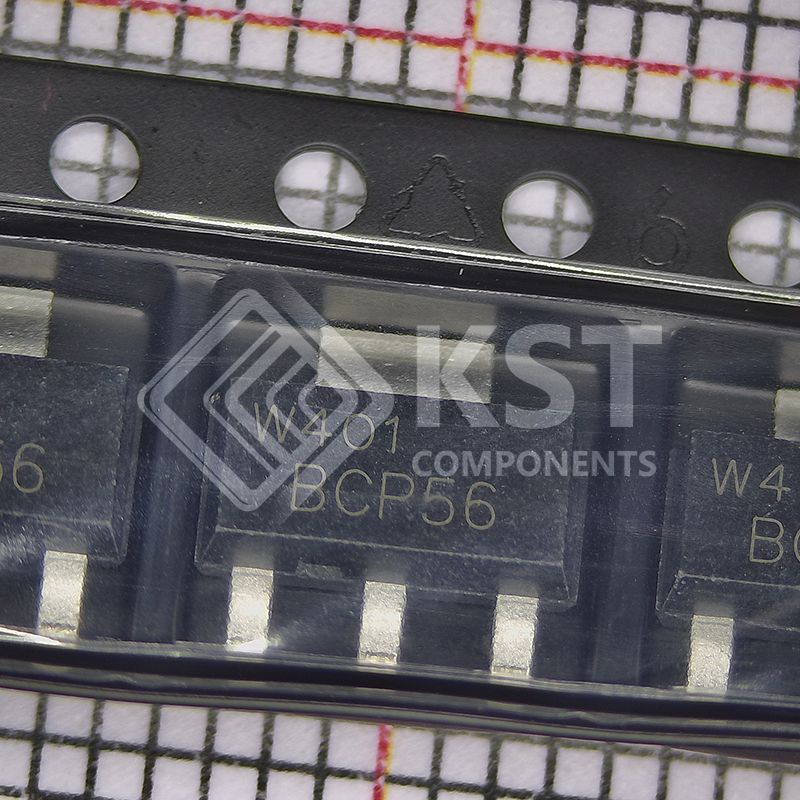

Package / Case |
TO-261-4, TO-261AA
|
|
|
Supplier Device Package |
SOT-223
|
|
|
Base Product Number |
BCP56 |
