Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|

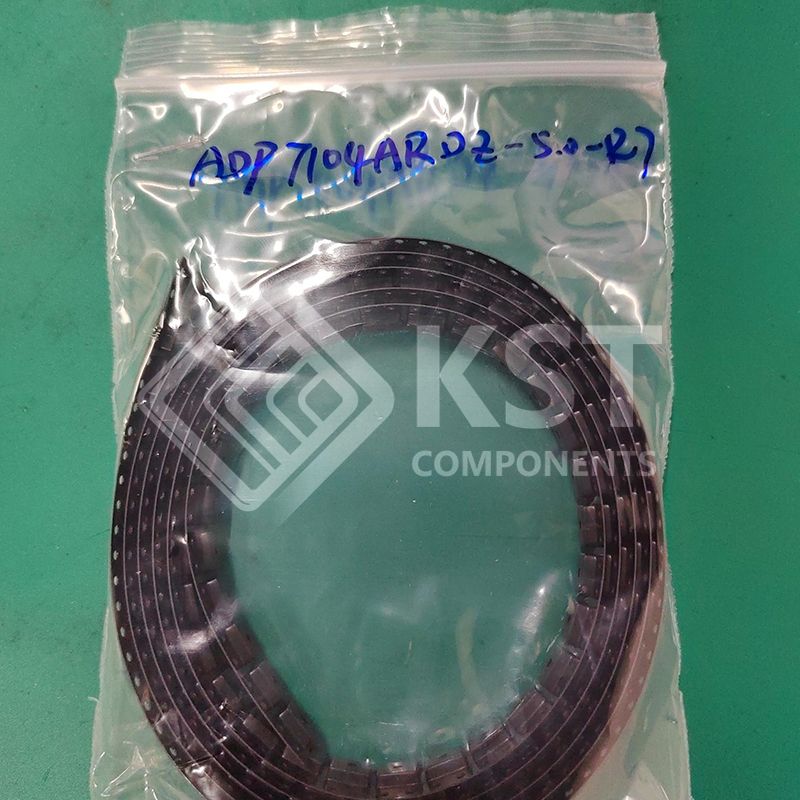

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
20V
|
|
|
Voltage - Output (Min/Fixed) |
5V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
0.55V @ 500mA
|
|
|
Current - Output |
500mA |
|
|
Current - Quiescent (Iq) |
900 µA
|
|
|
Current - Supply (Max) |
1.6 mA
|
|
|
PSRR |
60dB ~ 50dB (10kHz ~ 100kHz)
|
|
|
Control Features |
Enable, Power Good, Under Voltage Lockout
|
|
|
Protection Features |
Over Temperature, Short Circuit
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|

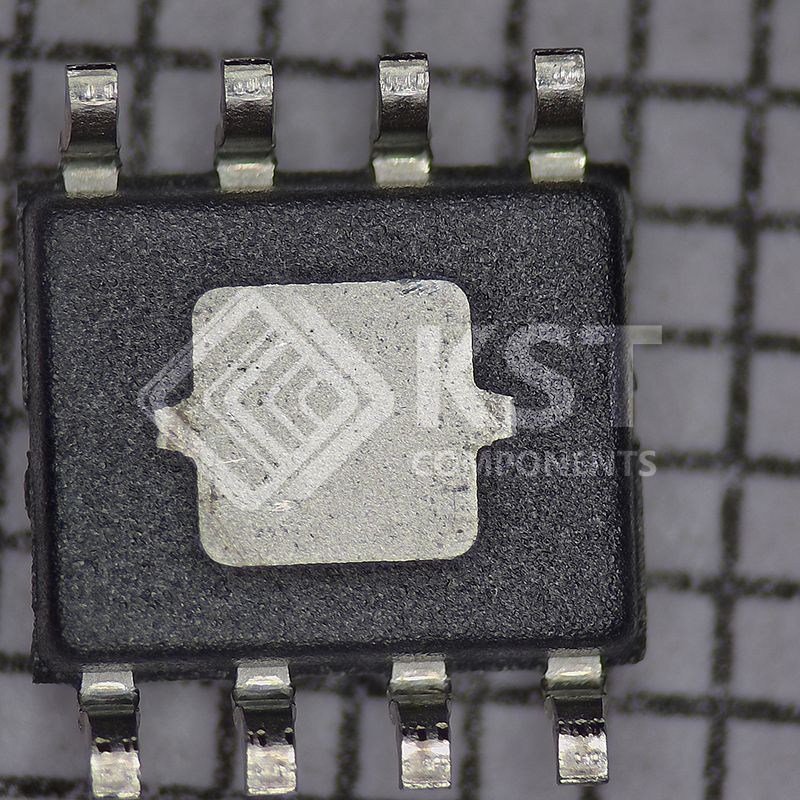

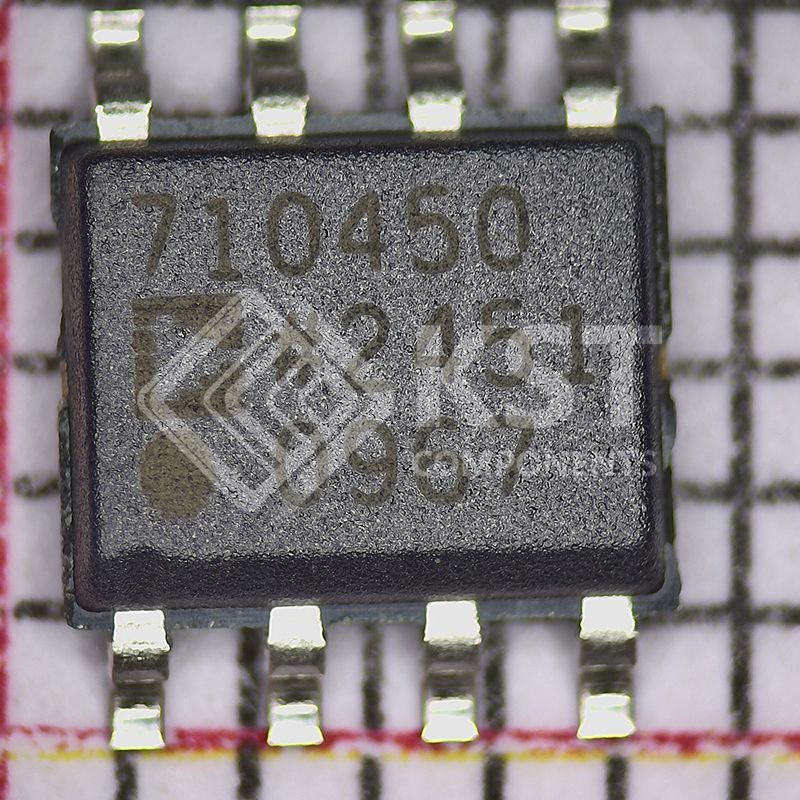

Package / Case |
8-SOIC (0.154", 3.90mm Width) Exposed Pad
|
|
|
Supplier Device Package |
8-SOIC-EP
|
|
|
Base Product Number |
ADP7104 |
