Category |
RF and Wireless
RF Transceiver ICs
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Type |
TxRx + MCU
|
|
|
RF Family/Standard |
802.15.4
|
|
|
Protocol |
-
|
|
|
Modulation |
DSSS, GSK, GFSK, GMSK, MSK, O-QPSK
|
|
|
Frequency |
2.4GHz |
|
|
Data Rate (Max) |
2Mbps
|
|
|
Power - Output |
4.8dBm
|
|
|
Sensitivity |
-96dBm
|
|
|
Memory Size |
4kB ROM, 2.5kB RAM
|
|
|
Serial Interfaces |
SPI
|
|
|
GPIO |
7
|
|
|
Voltage - Supply |
1.8V ~ 3.6V
|
|
|
Current - Receiving |
19mA
|
|
|
Current - Transmitting |
16.5mA ~ 25mA
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|

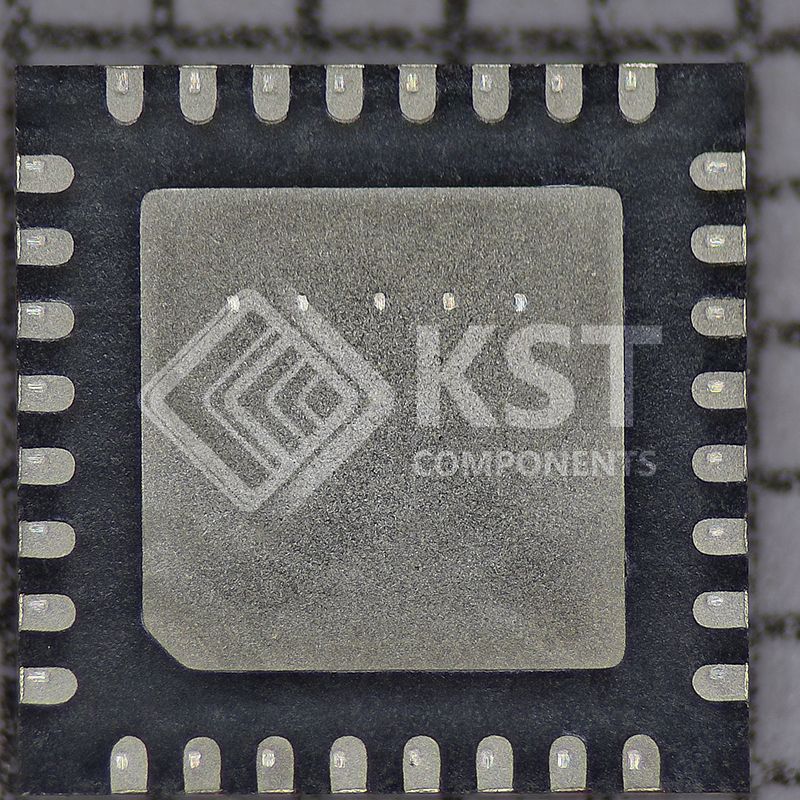

Package / Case |
32-WFQFN Exposed Pad, CSP
|
|
|
Supplier Device Package |
32-LFCSP (5x5)
|
|
|
Base Product Number |
ADF7242 |
