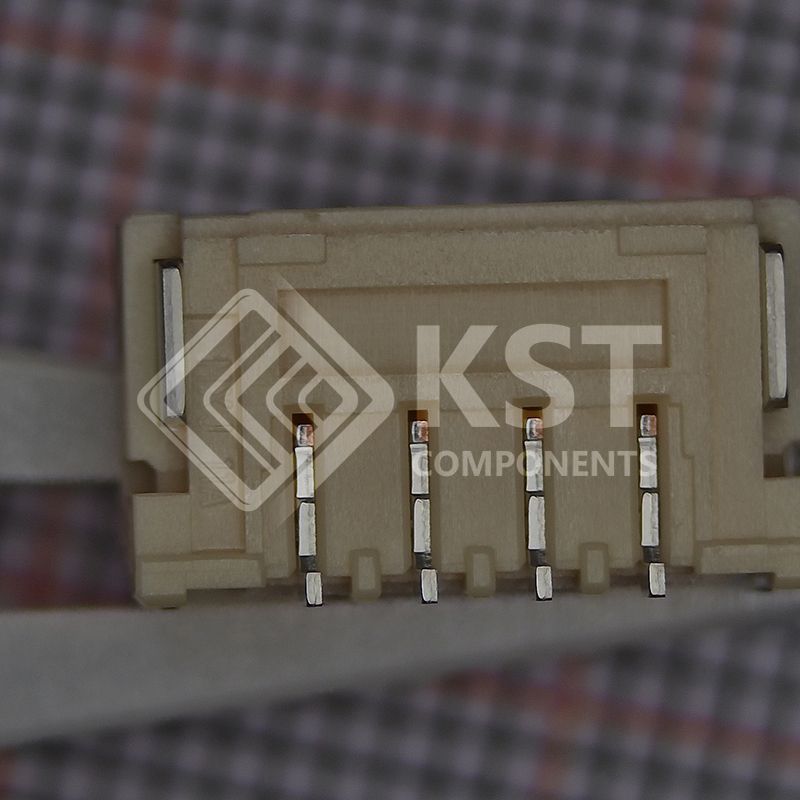

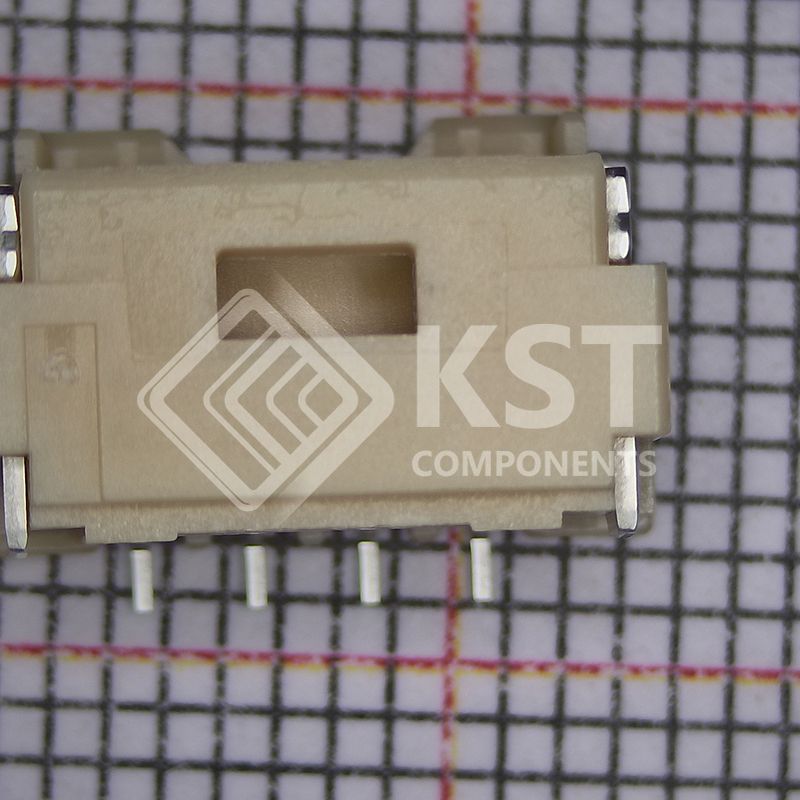

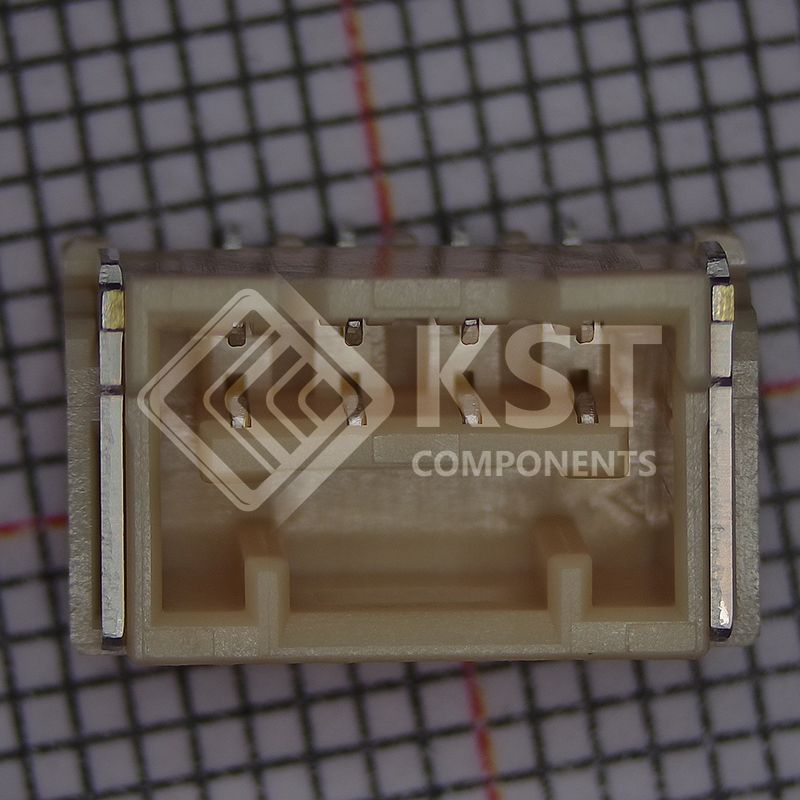

5024940470
零件编号：
5024940470
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
A&D Engineering
描述：
CONN RCPT 4POS 0.079 TIN SMD R/A
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr |
Molex |
|
|
Series |
CLIK-Mate 502494 |
|
|

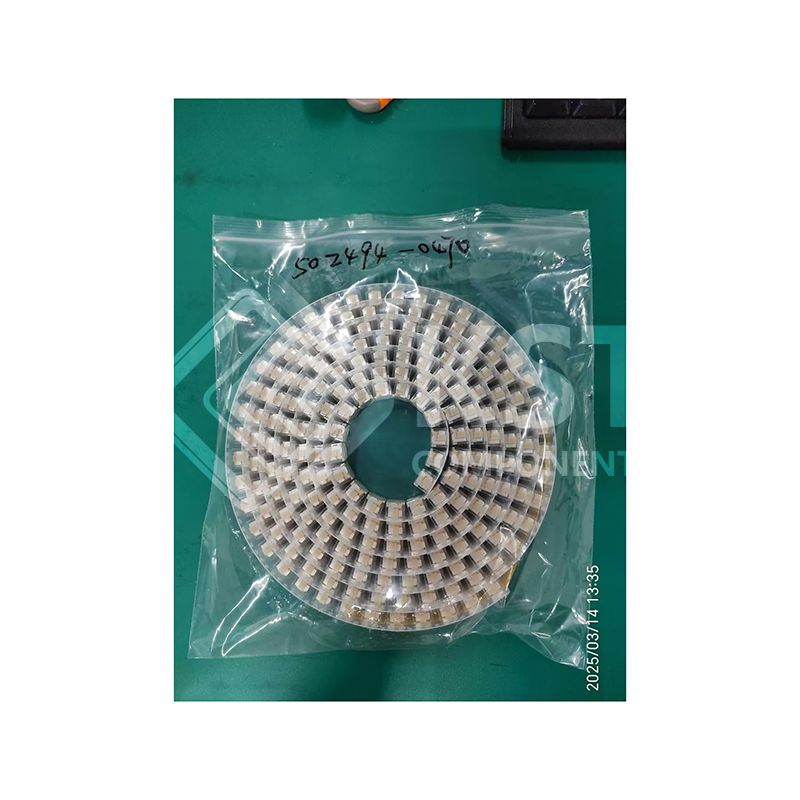

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle |
|
|
Contact Type |
Forked
|
|
|
Style |
Board to Cable/Wire
|
|
|
Number of Positions |
4 |
|
|
Number of Positions Loaded |
All
|
|
|
Pitch - Mating |
0.079" (2.00mm) |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Termination |
Solder |
|
|
Fastening Type |
Latch Holder
|
|
|
Contact Finish - Mating |
Tin |
|
|
Contact Finish Thickness - Mating |
39.4µin (1.00µm)
|
|
|
Insulation Color |
Natural
|
|
|
Insulation Height |
0.270" (6.86mm)
|
|
|
Contact Length - Post |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Contact Finish - Post |
Tin
|
|
|
Mated Stacking Heights |
-
|
|
|
Ingress Protection |
-
|
|
|
Features |
Pick and Place, Solder Retention
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Applications |
Automotive, General Purpose, Industrial, Lighting, Medical
|
|
|
Insulation Material |
Resin
|
|
|
Contact Shape |
-
|
|
|
Contact Material |
Copper Alloy
|
|
|
Contact Finish Thickness - Post |
39.4µin (1.00µm)
|
|
|
Base Product Number |
502494 |
