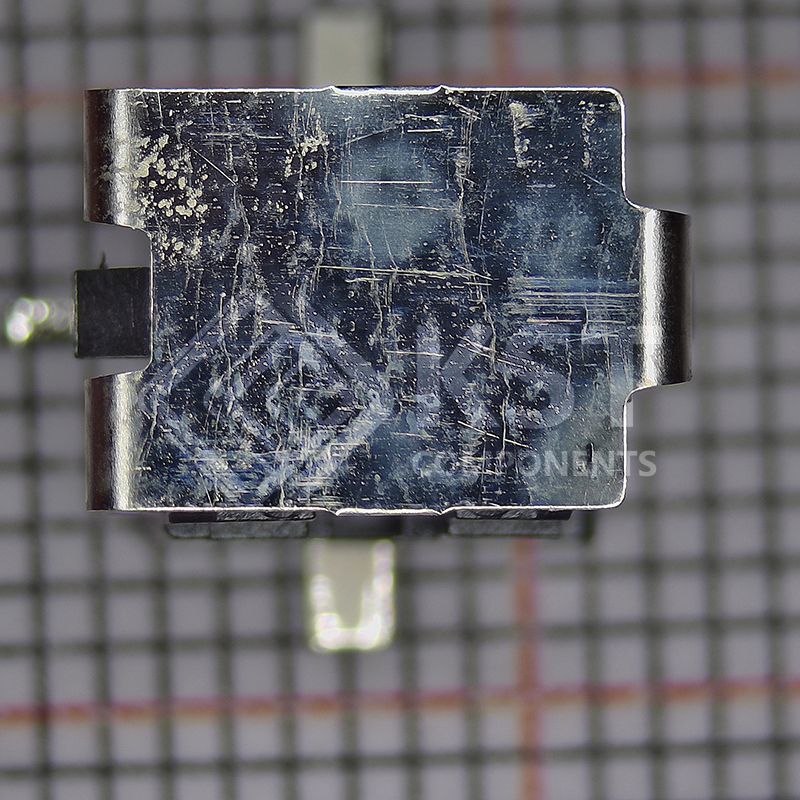

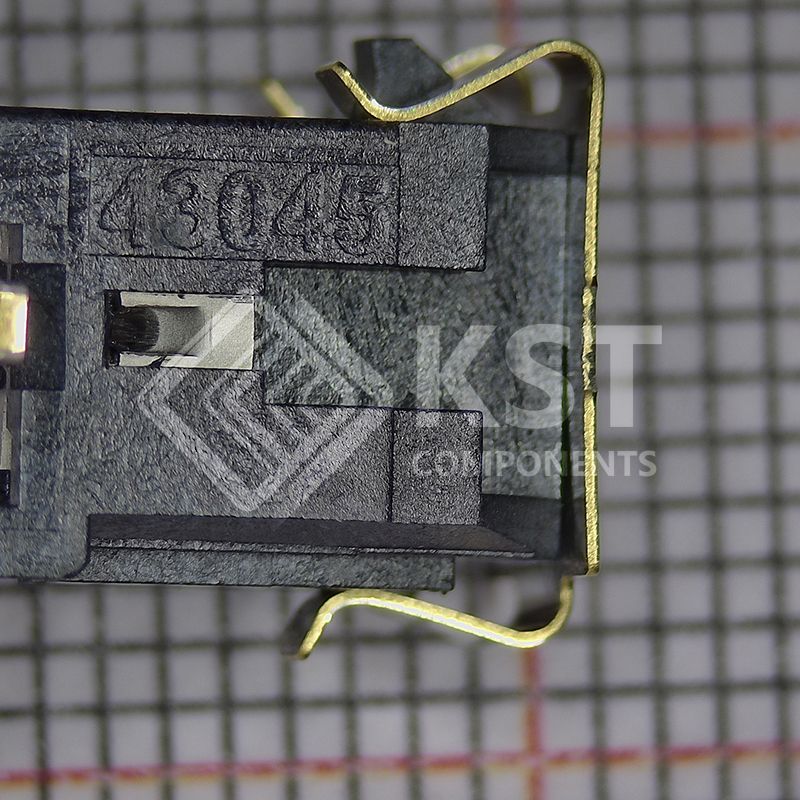

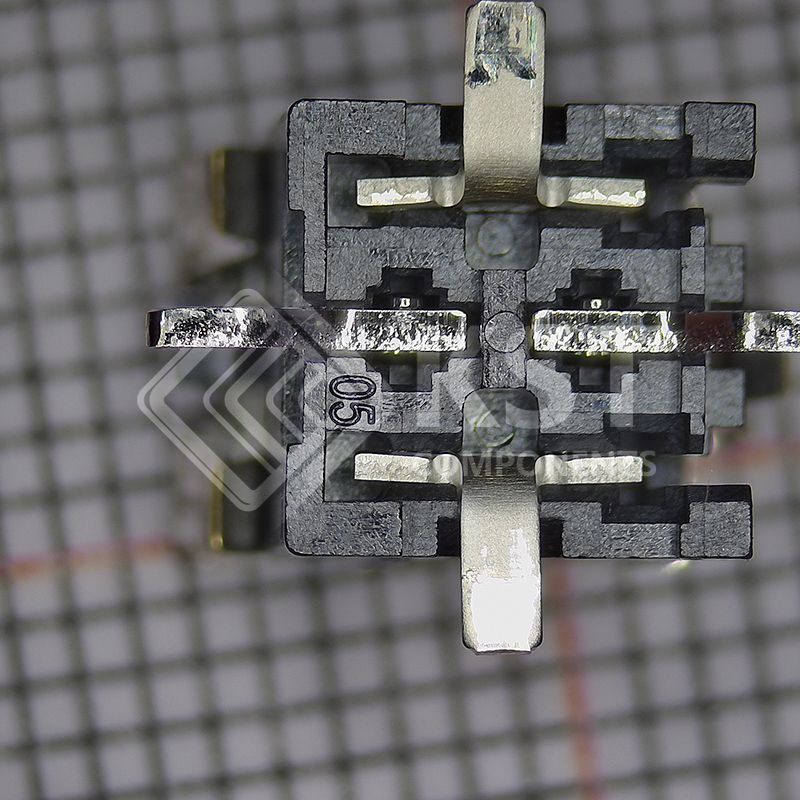

43045-0218
零件编号：
43045-0218
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
A&D Engineering
描述：
CONN HEADER SMD 2POS
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Molex |
|
|
Series |
Micro-Fit 3.0 43045 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
-
|
|
|
Number of Positions |
2 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.118" (3.00mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Surface Mount |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Locking Ramp
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
-
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.390" (9.91mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
60.0µin (1.52µm)
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass Alloy
|
|
|
Insulation Material |
Liquid Crystal Polymer (LCP), Glass Filled
|
|
|
Features |
Solder Retention
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
Varies by Wire Gauge
|
|
|
Voltage Rating |
600V
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
-
|
|
|
Applications |
Automotive, General Purpose, Industrial, Medical, Telecommunications
|
|
|
Base Product Number |
043045 |
