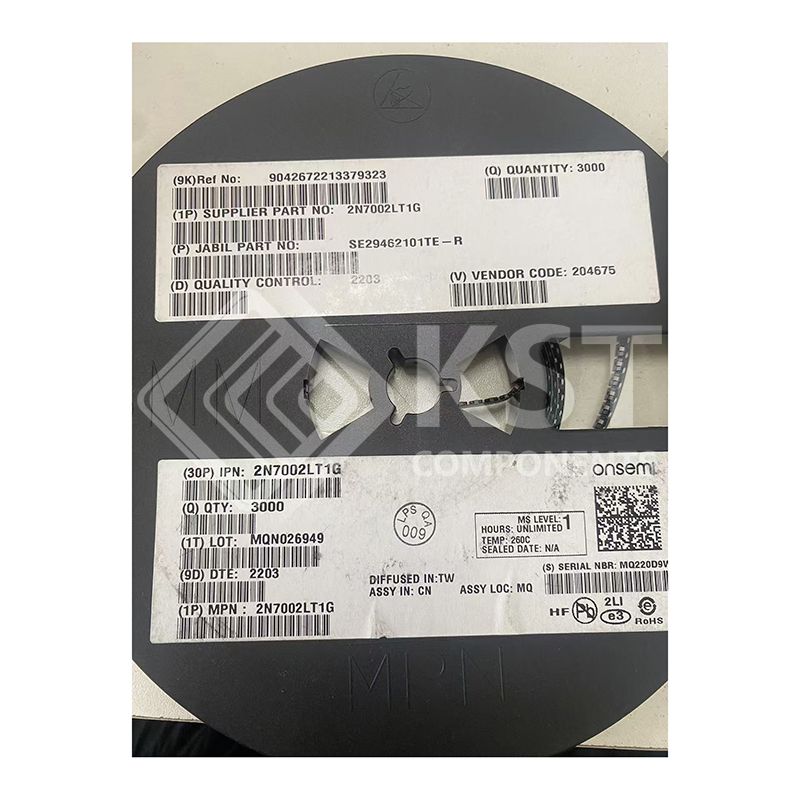

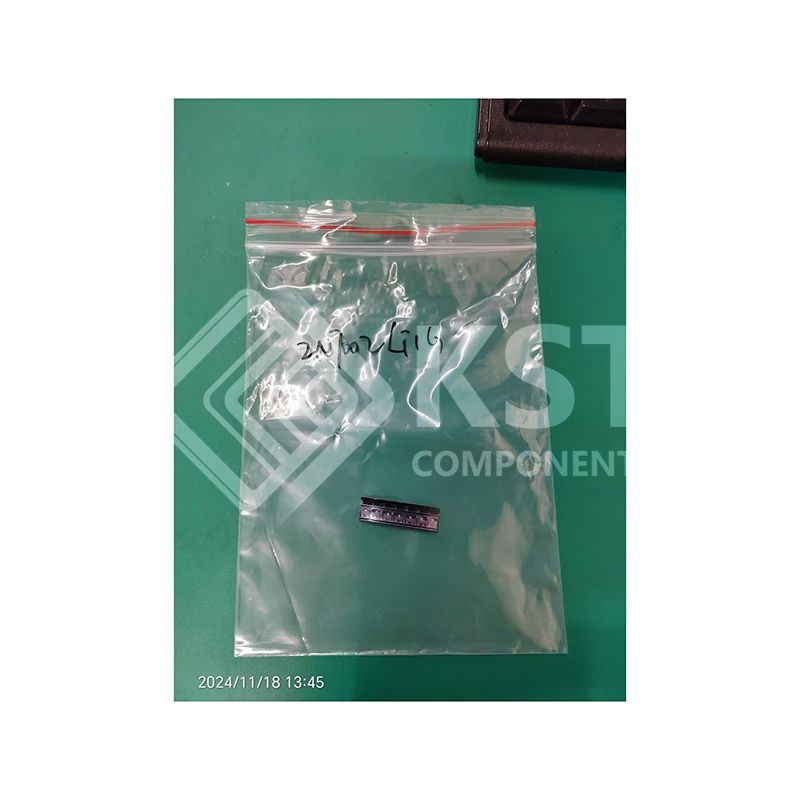

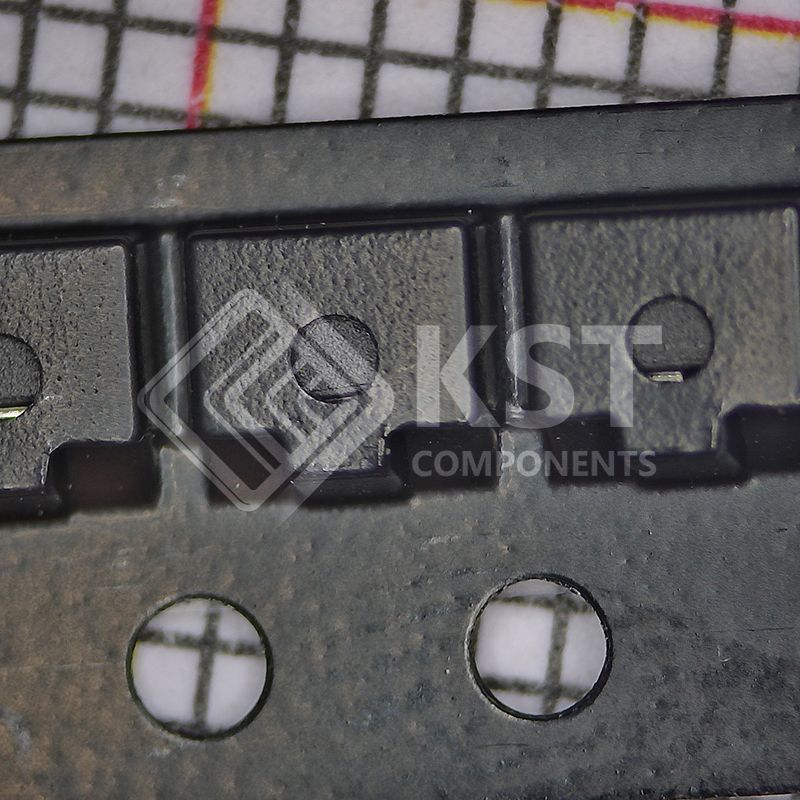

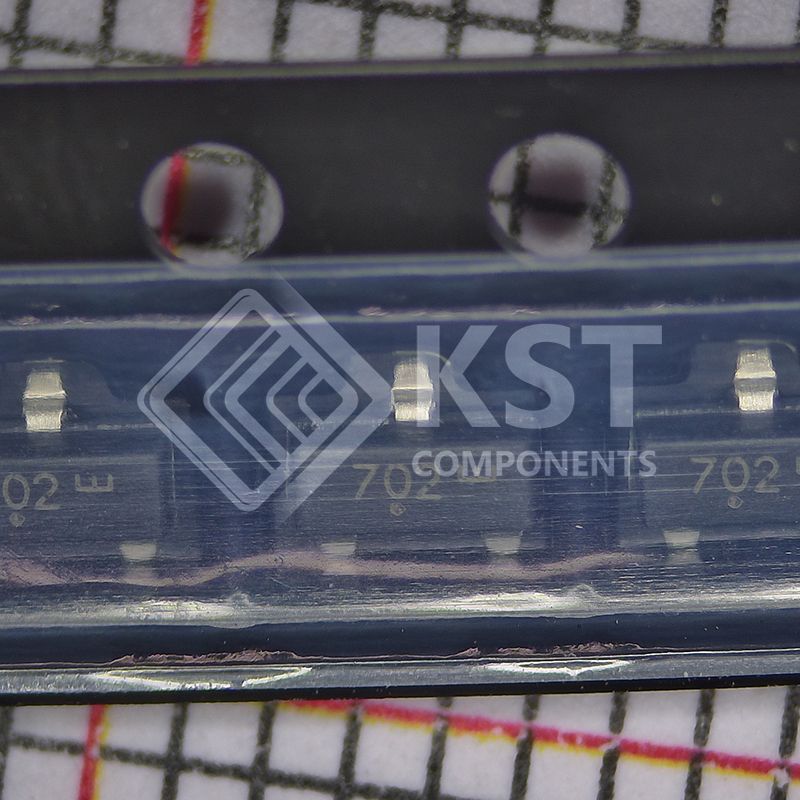

2N7002LT1G
零件编号：
2N7002LT1G
产品分类：
固态继电器（SSR）
制造商：
ADDA USA
描述：
MOSFET N-CH 60V 115MA SOT23-3
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
60 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
115mA (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
7.5Ohm @ 500mA, 10V
|
|
|
Vgs(th) (Max) @ Id |
2.5V @ 250µA
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
50 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
225mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-23-3 (TO-236)
|
|
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
|
Base Product Number |
2N7002 |
