1724480004
零件编号：
1724480004
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
A&D Engineering
描述：

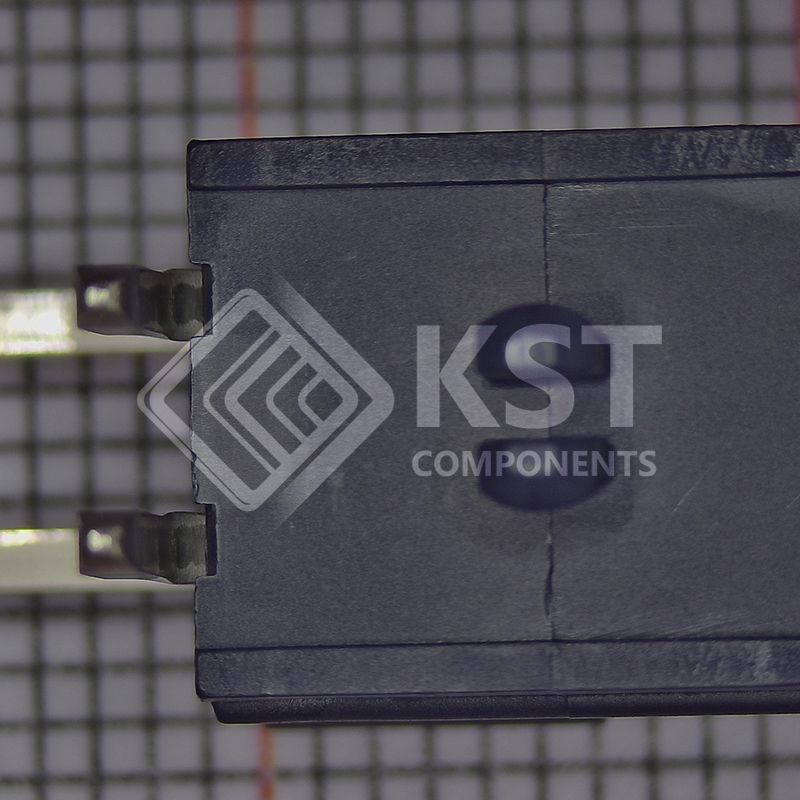

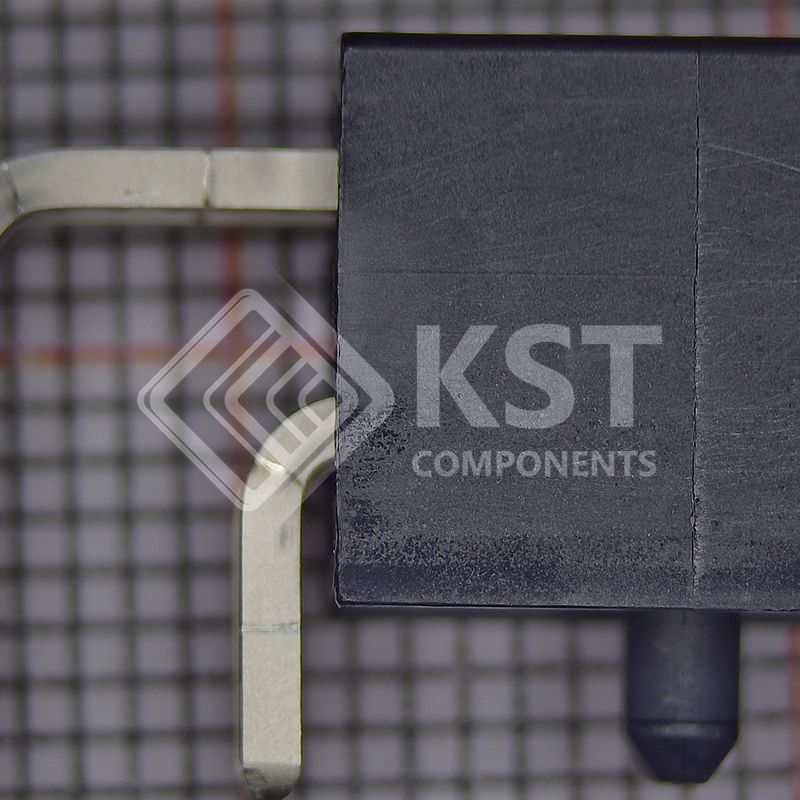

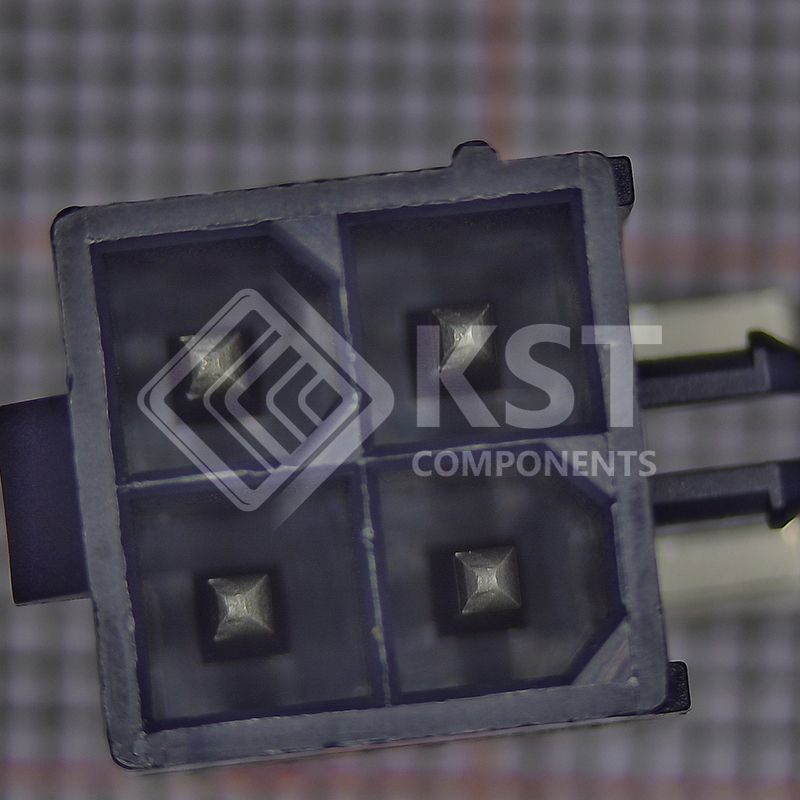

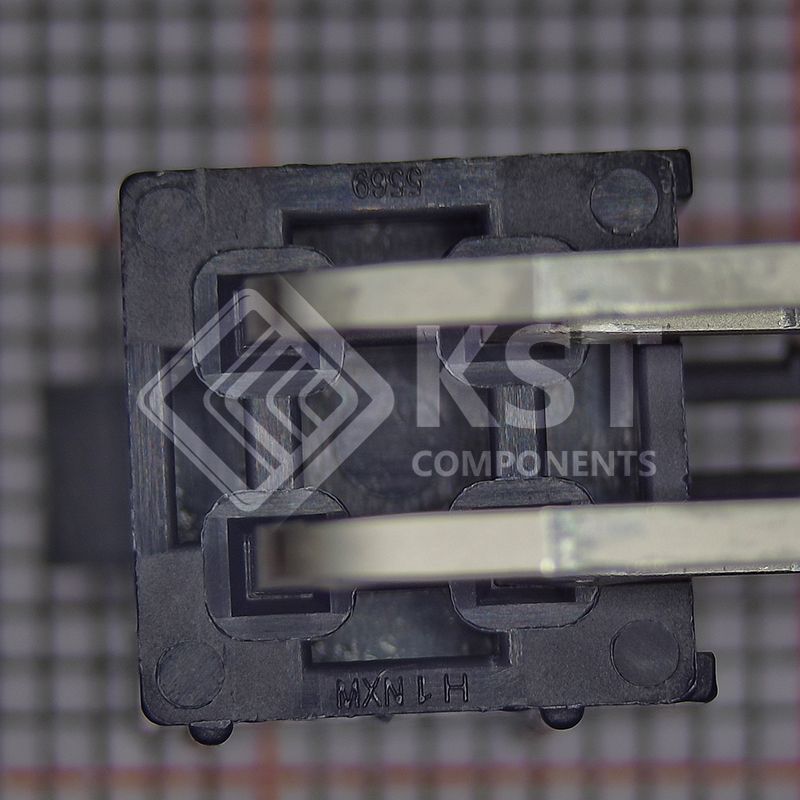

CONN HEADER R/A 4POS 4.2MM
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Molex |
|
|
Series |
Mini-Fit Jr 172448 |
|
|

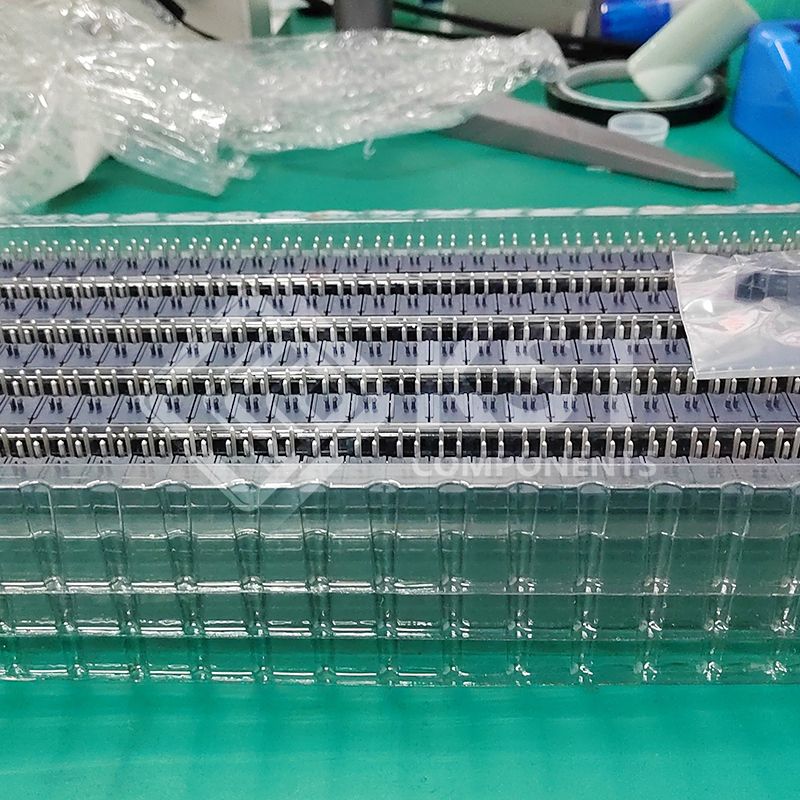

Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.165" (4.20mm) |
|
|
Number of Positions |
4 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.165" (4.20mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole, Right Angle |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Locking Ramp
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
0.142" (3.60mm)
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.378" (9.60mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
100.0µin (2.54µm)
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Polyamide (PA), Nylon
|
|
|
Features |
Board Lock, Glow Wire Compliant
|
|
|
Operating Temperature |
-
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-2
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
-
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
100.0µin (2.54µm)
|
|
|
Applications |
General Purpose, Industrial, Telecommunications
|
|
|
Base Product Number |
172448 |
