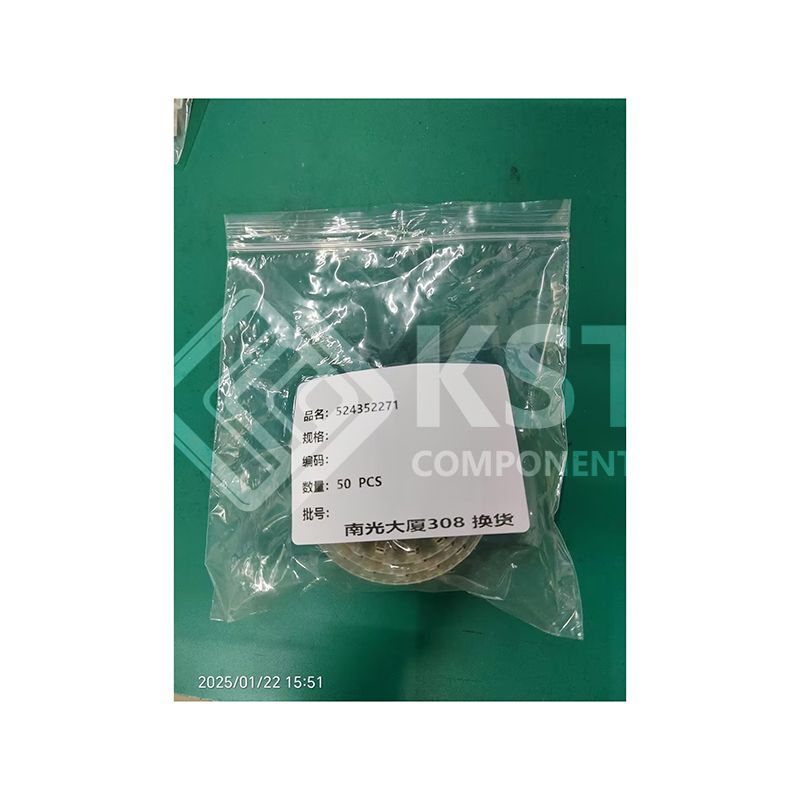

0524352271
零件编号：
0524352271
产品分类：
双向触发二极管，SIDAC
制造商：
A&D Engineering
描述：
CONN FFC FPC TOP 22POS 0.5MM R/A
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connector Assemblies
|
|
|
Manufacturer |
Molex
|
|
|
Series |
Easy-On 52435 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Flat Flex Type |
FFC, FPC
|
|
|
Mounting Type |
Surface Mount, Right Angle
|
|
|
Connector/Contact Type |
Contacts, Top
|
|
|
Number of Positions |
22
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Termination |
Solder
|
|
|
FFC, FCB Thickness |
0.30mm
|
|
|
Height Above Board |
0.079" (2.00mm)
|
|
|
Locking Feature |
Slide Lock
|
|
|
Cable End Type |
Straight, Tapered
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish |
Gold
|
|
|
Housing Material |
Polyamide (PA46), Nylon 4/6
|
|
|
Actuator Material |
Polyphenylene Sulfide (PPS)
|
|
|
Features |
Solder Retention, Zero Insertion Force (ZIF)
|
|
|
Voltage Rating |
50V
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Current Rating (Amps) |
0.5A
|
|
|
Contact Finish Thickness |
-
|
|
|
Housing Color |
-
|
|
|
Actuator Color |
-
|
|
|
Mating Cycles |
20
|
|
|
Base Product Number |
052435 |
