Category |
RF and Wireless
RF Antennas
|
|
|
Manufacturer |
Molex
|
|
|
Series |
47948 |
|
|

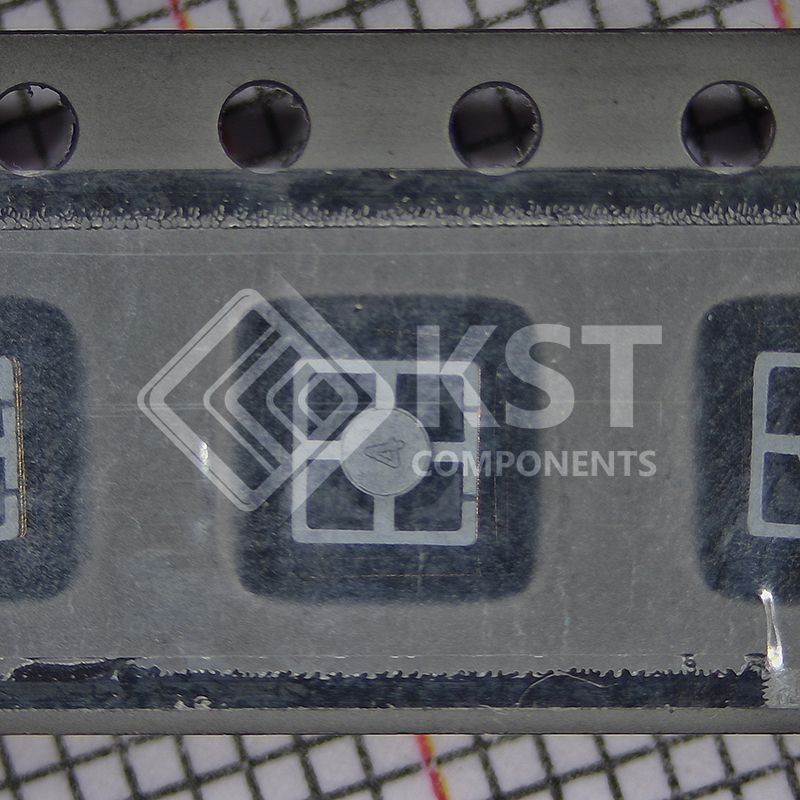

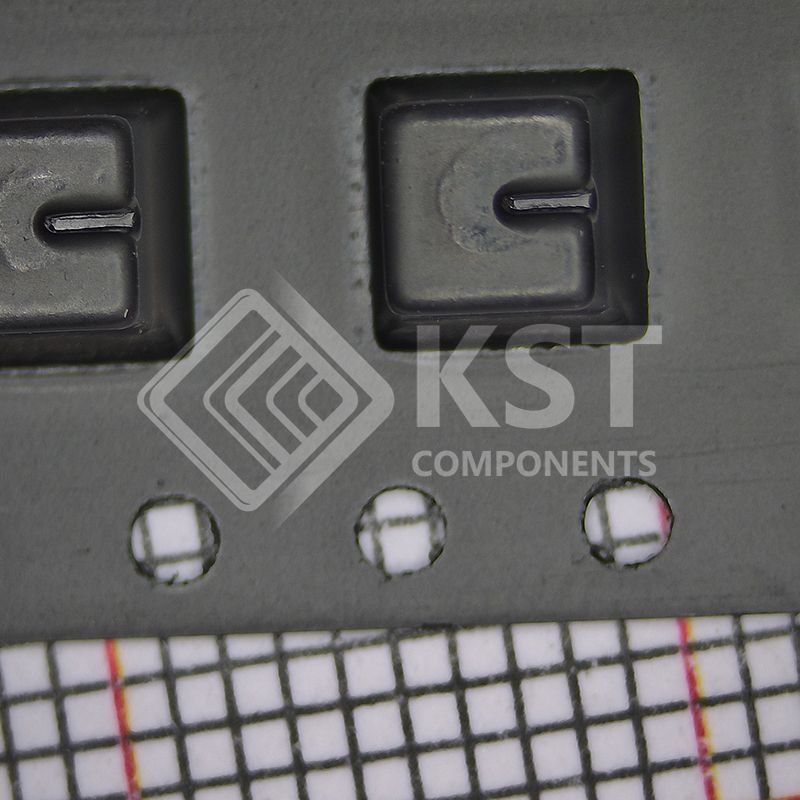

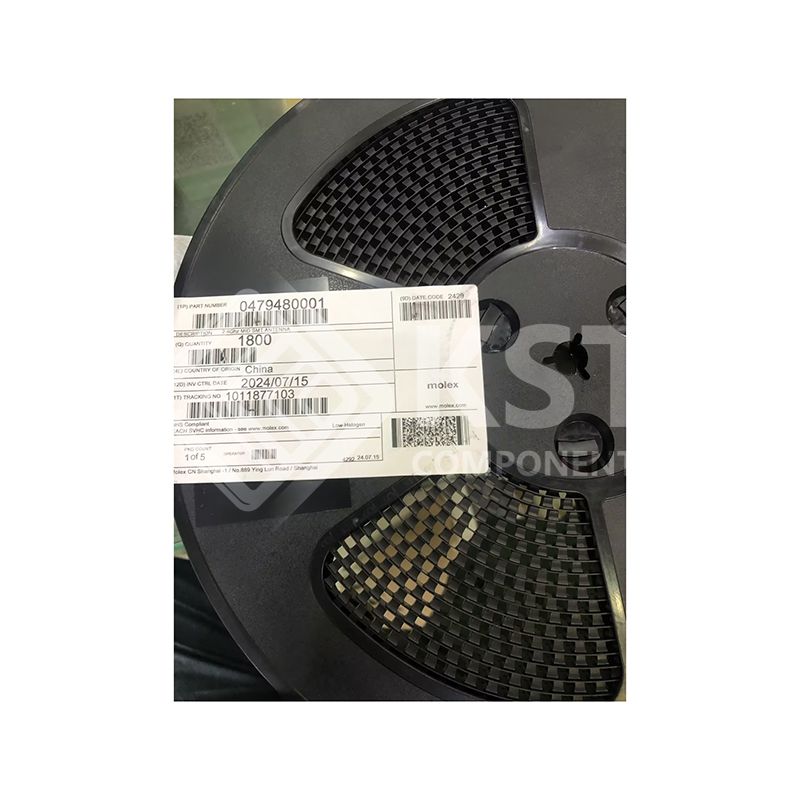

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
RF Family/Standard |
802.15.4, Bluetooth, WiFi
|
|
|
Frequency Group |
UHF (2GHz ~ 3GHz)
|
|
|
Frequency (Center/Band) |
2.4GHz
|
|
|
Frequency Range |
2.4GHz ~ 2.483.5GHz
|
|
|

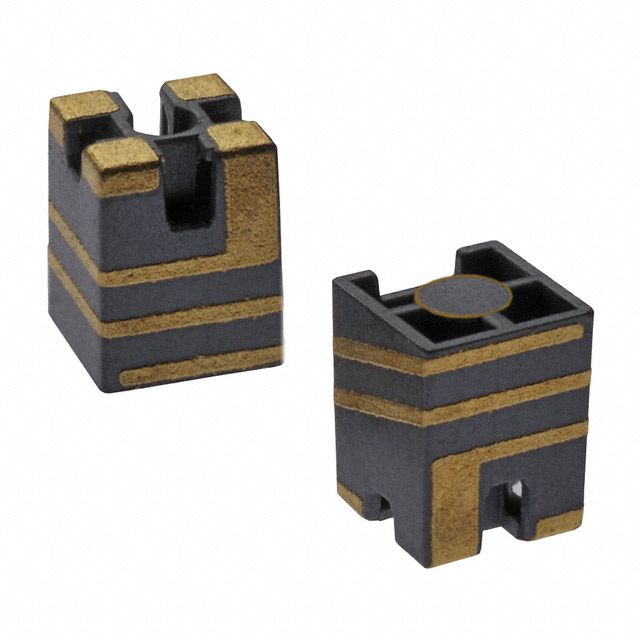

Antenna Type |
Chip
|
|
|
Number of Bands |
1
|
|
|
VSWR |
-
|
|
|
Return Loss |
-9dB
|
|
|
Gain |
3dBi
|
|
|
Power - Max |
2 W
|
|
|
Features |
-
|
|
|
Termination |
Solder
|
|
|
Ingress Protection |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|

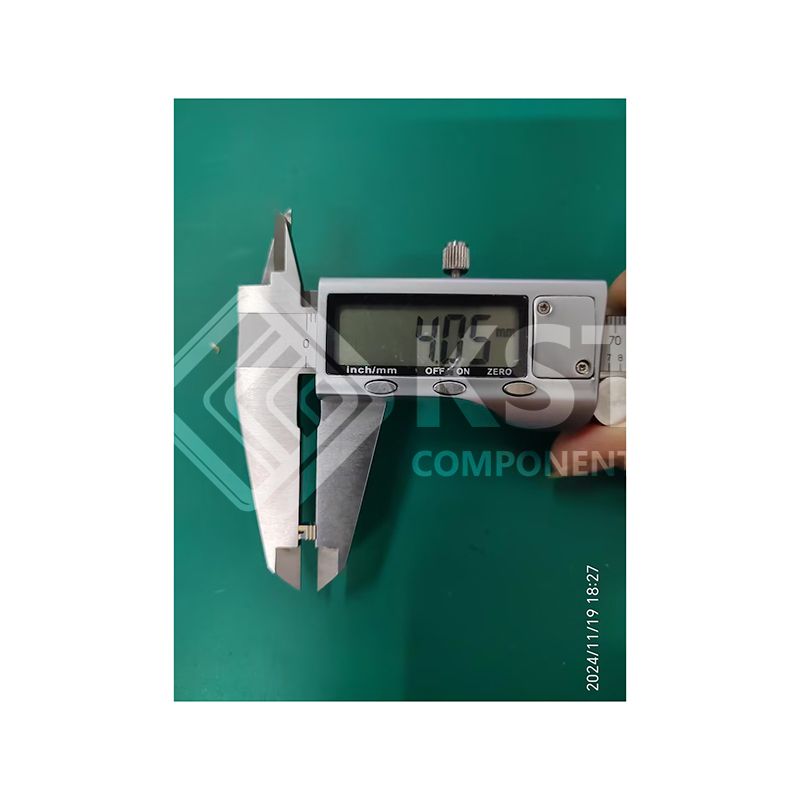

Height (Max) |
0.157" (4.00mm)
|
|
|
Applications |
Bluetooth, WLAN, Zigbee™
|
|
|
Base Product Number |
047948 |
