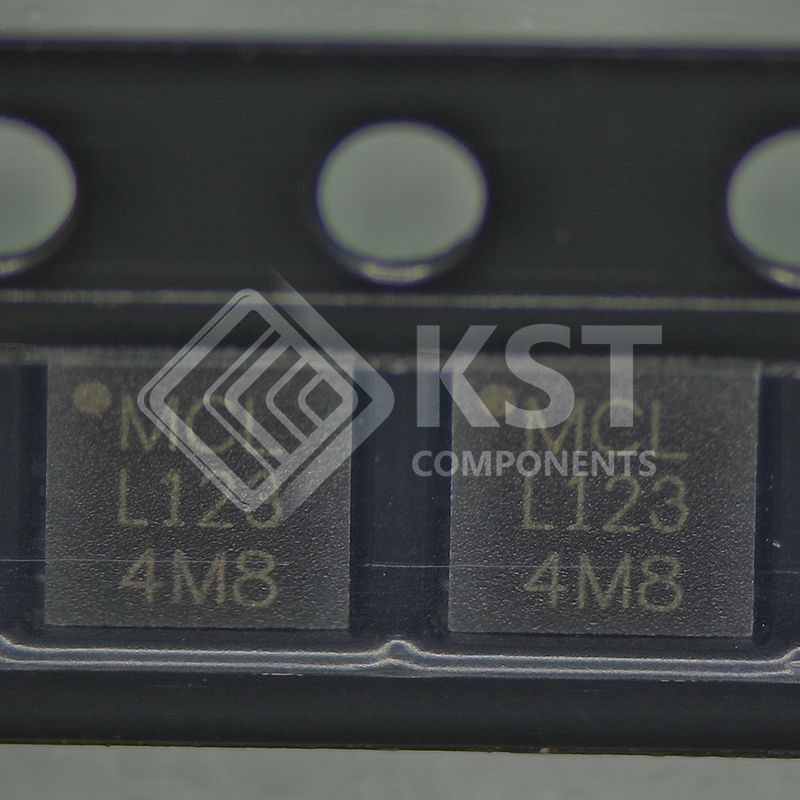

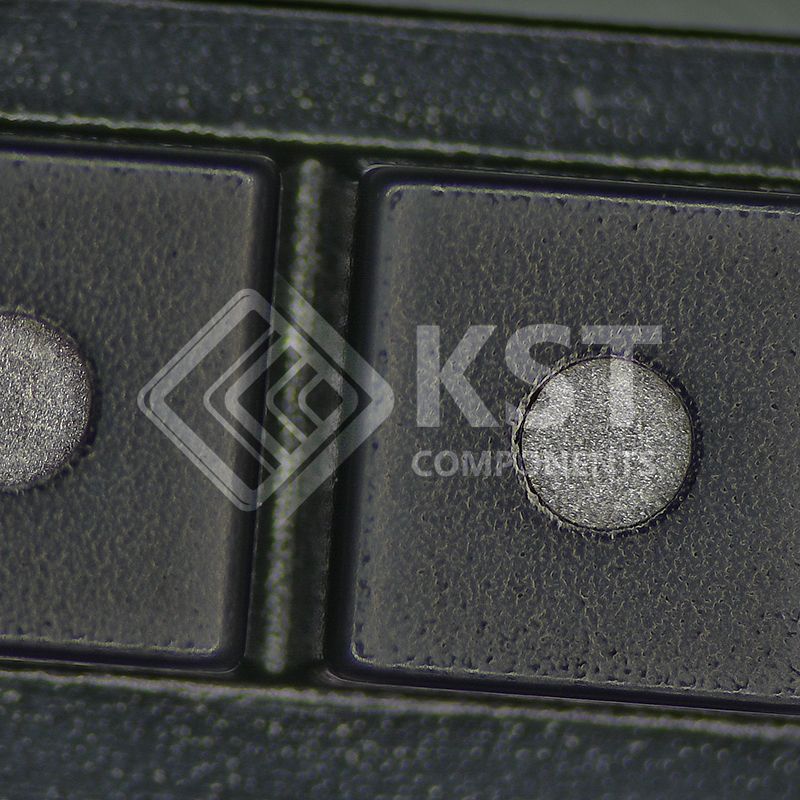

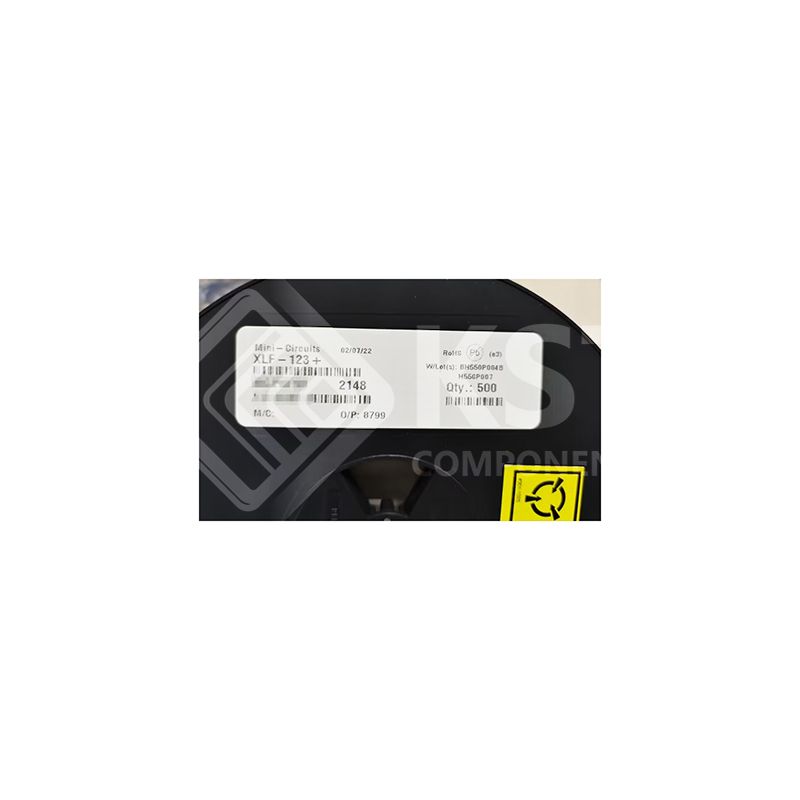

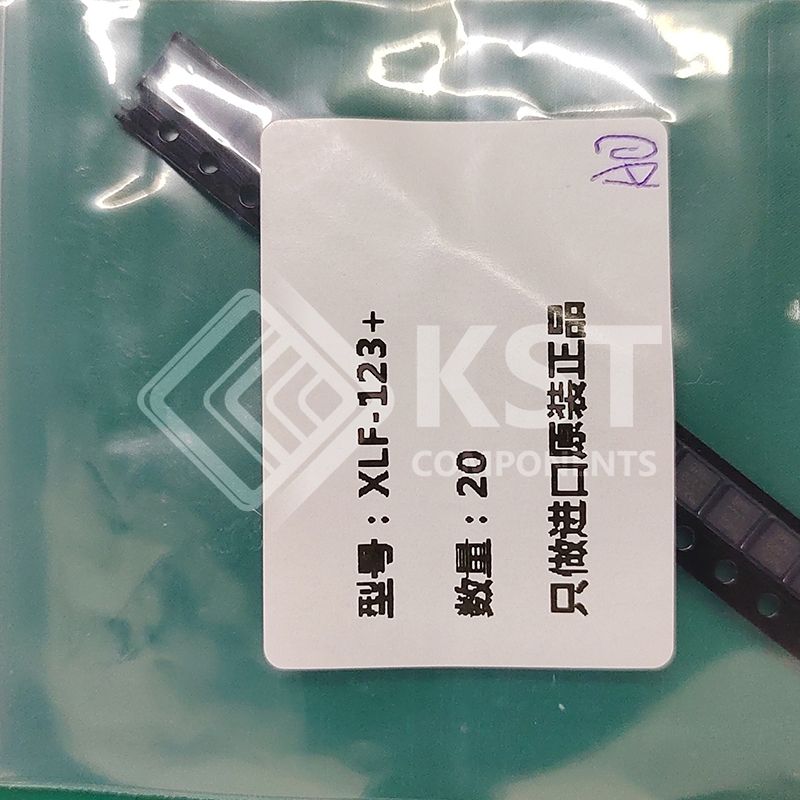

XLF-123+
Part Number:
XLF-123+
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
7STARLAKE
Description:
RF FILTER LOW PASS 15GHZ 12VQFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
RF Filters
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency |
15GHz (Cutoff)
|
|
|
Bandwidth |
-
|
|
|
Filter Type |
Low Pass
|
|
|
Ripple |
-
|
|
|
Insertion Loss |
2.4dB
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
12-VQFN Exposed Pad
|
|
|
Size / Dimension |
0.118" L x 0.118" W (3.00mm x 3.00mm)
|
|
|
Height (Max) |
0.035" (0.89mm)
|
