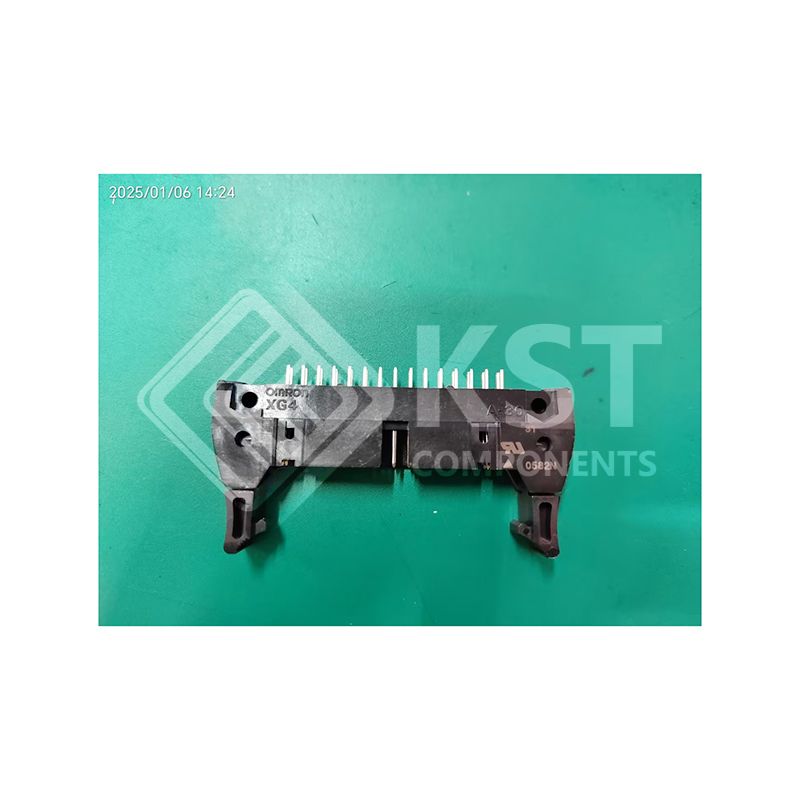

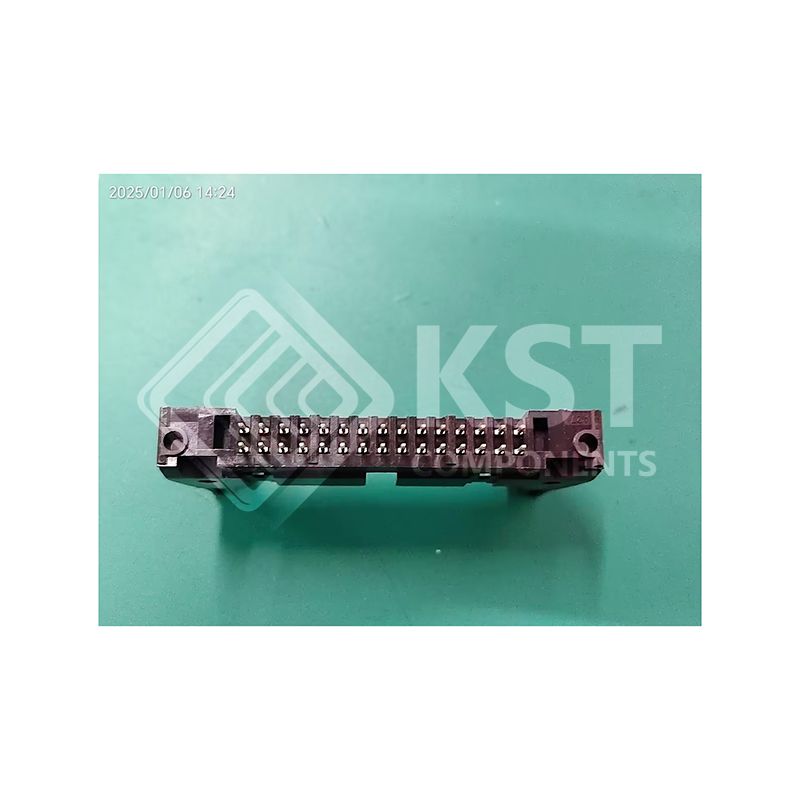

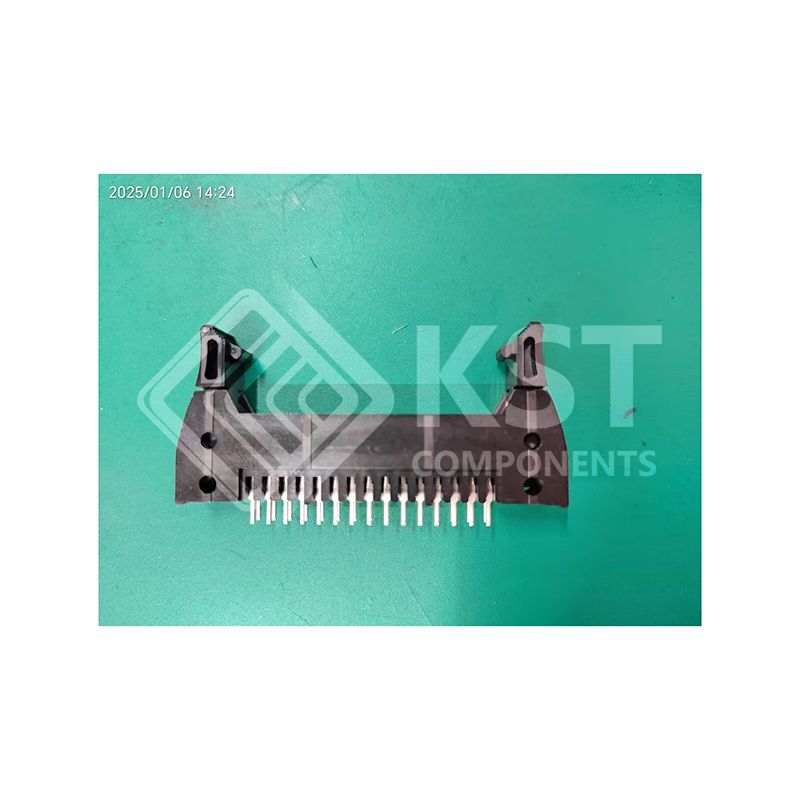

XG4A-3031
Part Number:
XG4A-3031
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Amphenol NEXUS Technologies
Description:
CONN HEADER VERT 30POS 2.54MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Omron Electronics Inc-EMC Div |
|
|
Series |
XG4 |
|
|

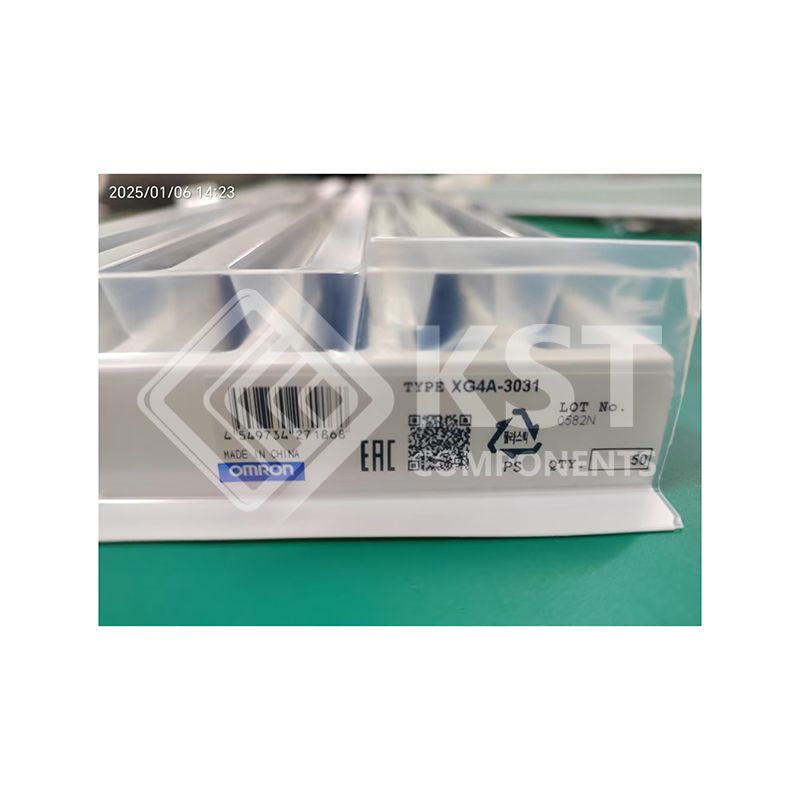

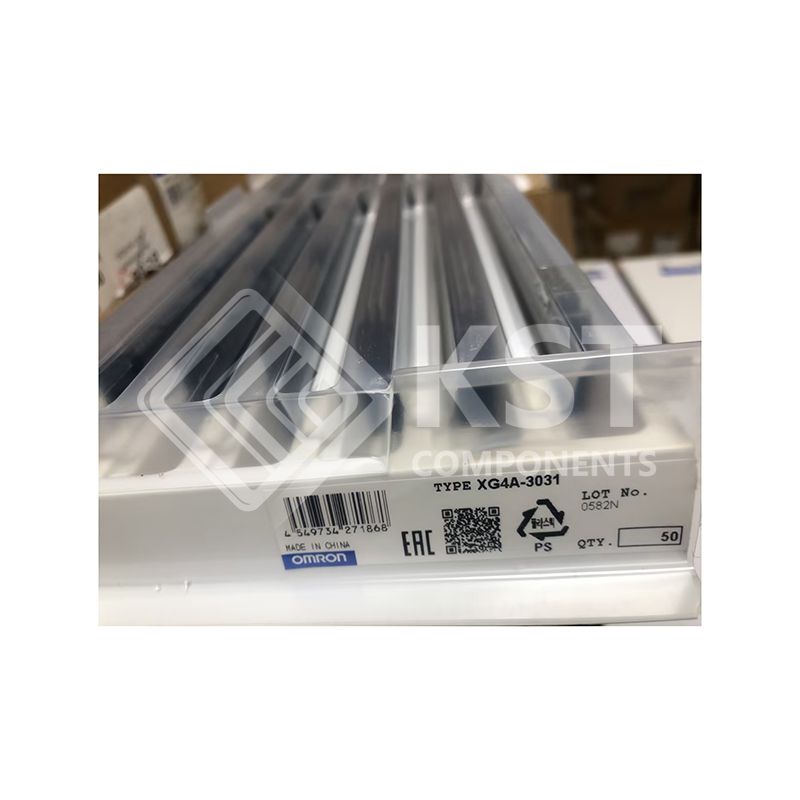

Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.100" (2.54mm) |
|
|
Number of Positions |
30 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.100" (2.54mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Latch Lock/Eject Hooks, Long
|
|
|
Contact Length - Mating |
0.240" (6.10mm)
|
|
|
Contact Length - Post |
0.126" (3.20mm)
|
|
|
Overall Contact Length |
0.657" (16.70mm)
|
|
|
Insulation Height |
0.669" (17.00mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Contact Finish Thickness - Mating |
5.90µin (0.150µm)
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass, Nickel
|
|
|
Insulation Material |
Polybutylene Terephthalate (PBT), Glass Filled
|
|
|
Features |
Keying Slot, Mounting Flange
|
|
|
Operating Temperature |
-55°C ~ 105°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
3A
|
|
|
Voltage Rating |
300V
|
|
|
Mated Stacking Heights |
23.5mm
|
|
|
Contact Finish Thickness - Post |
78.7µin (2.00µm)
|
|
|
Applications |
-
|
|
|
Base Product Number |
XG4A |
