UAD8C05L01
Part Number:
UAD8C05L01
Product Classification:
Configurable Switch Lens
Manufacturer:
ADURA LED Solutions
Description:
TVS DIODE 5VWM 20VC SOD882
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
YAGEO |
|
|
Series |
UAD8C05L01 |
|
|

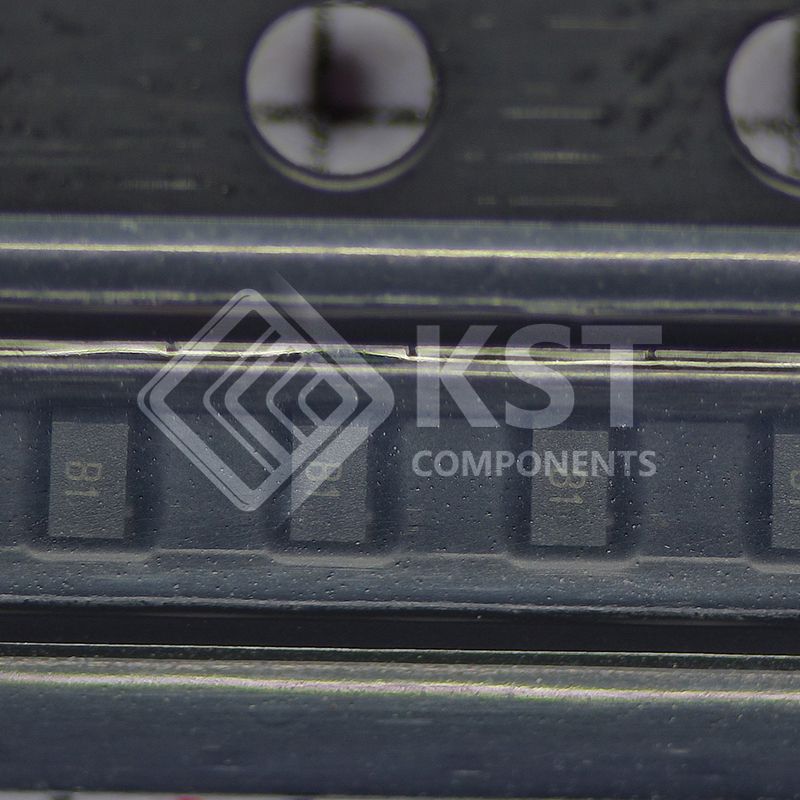

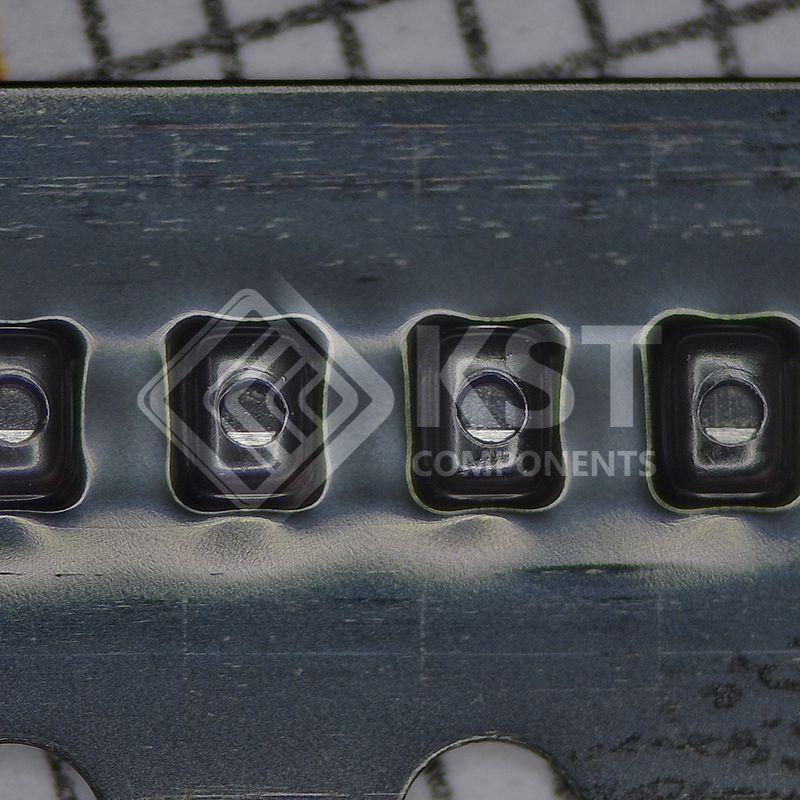

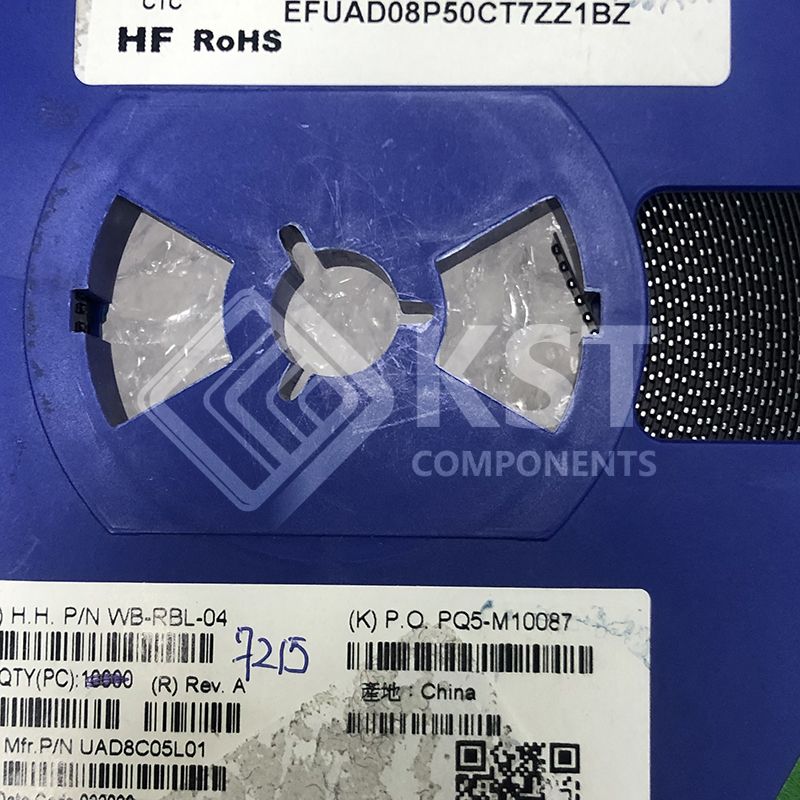

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
1
|
|
|
Voltage - Reverse Standoff (Typ) |
5V (Max)
|
|
|
Voltage - Breakdown (Min) |
7V
|
|
|
Voltage - Clamping (Max) @ Ipp |
20V (Typ)
|
|
|
Current - Peak Pulse (10/1000µs) |
3A (8/20µs)
|
|
|
Power - Peak Pulse |
-
|
|
|
Power Line Protection |
No
|
|
|
Applications |
HDMI, USB
|
|
|
Capacitance @ Frequency |
0.4pF @ 1MHz
|
|
|
Operating Temperature |
-50°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|

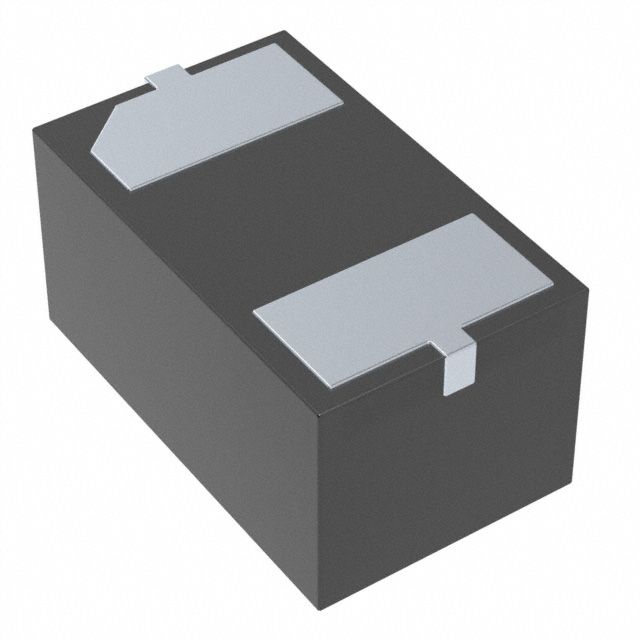

Package / Case |
SOD-882
|
|
|
Supplier Device Package |
SOD-882 |
