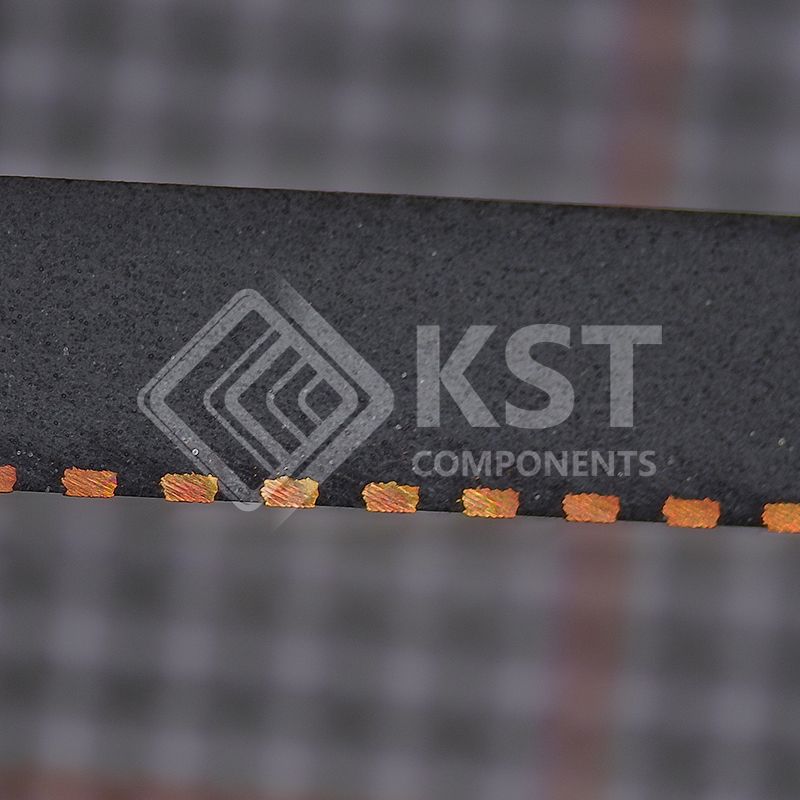

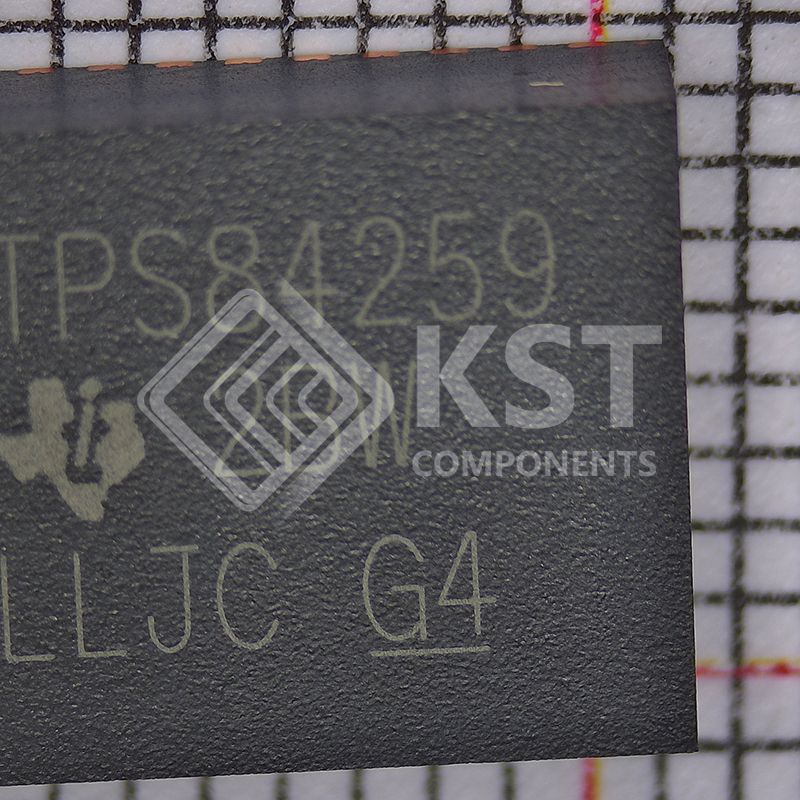

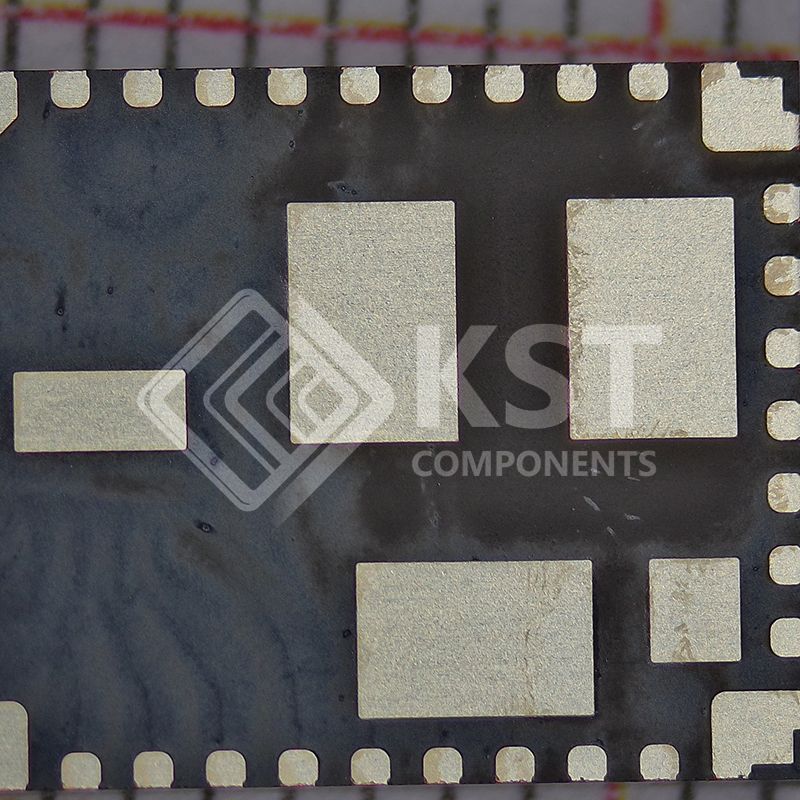

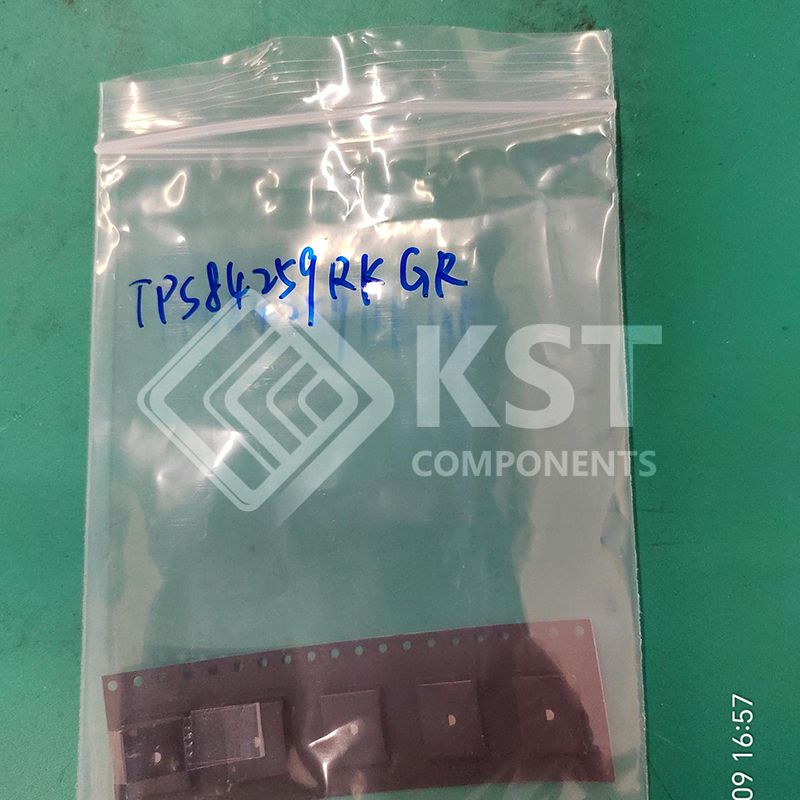

TPS84259RKGR
Part Number:
TPS84259RKGR
Product Classification:
Programmable Display Switches
Manufacturer:
3PEAK
Description:
DC DC CONVERTER -3 TO -17V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Non-Isolated PoL Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
4.5V
|
|
|
Voltage - Input (Max) |
40V
|
|
|
Voltage - Output 1 |
-3 ~ -17V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Current - Output (Max) |
2A
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
OCP, OTP, UVLO
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Efficiency |
86%
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
41-BQFN Module
|
|
|
Size / Dimension |
0.43" L x 0.35" W x 0.11" H (11.0mm x 9.0mm x 2.8mm)
|
|
|
Supplier Device Package |
41-B1QFN (11x9)
|
|
|
Control Features |
Enable, Active High
|
|
|
Base Product Number |
TPS84259 |
