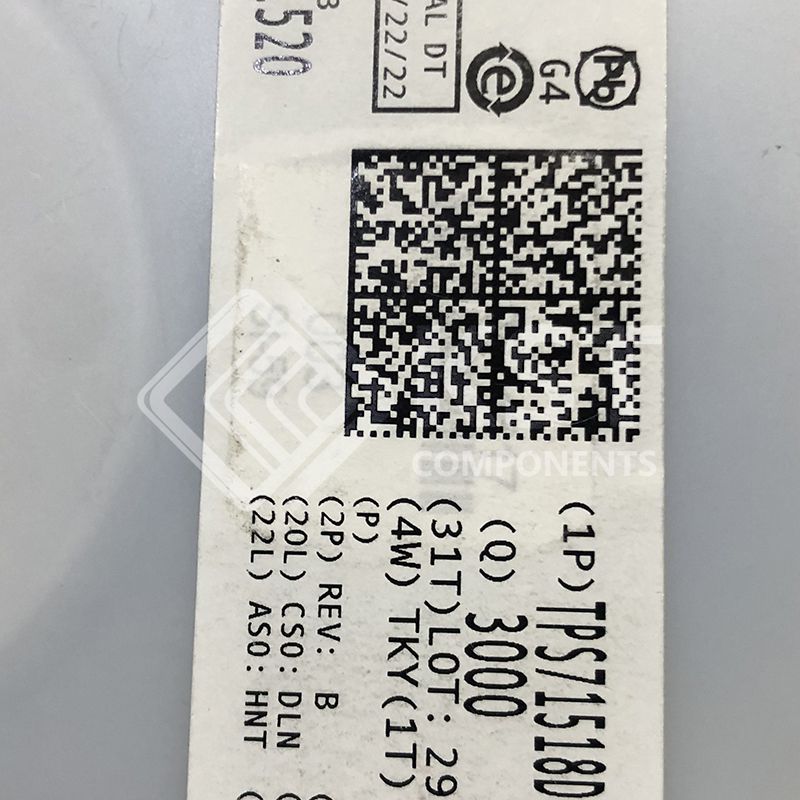

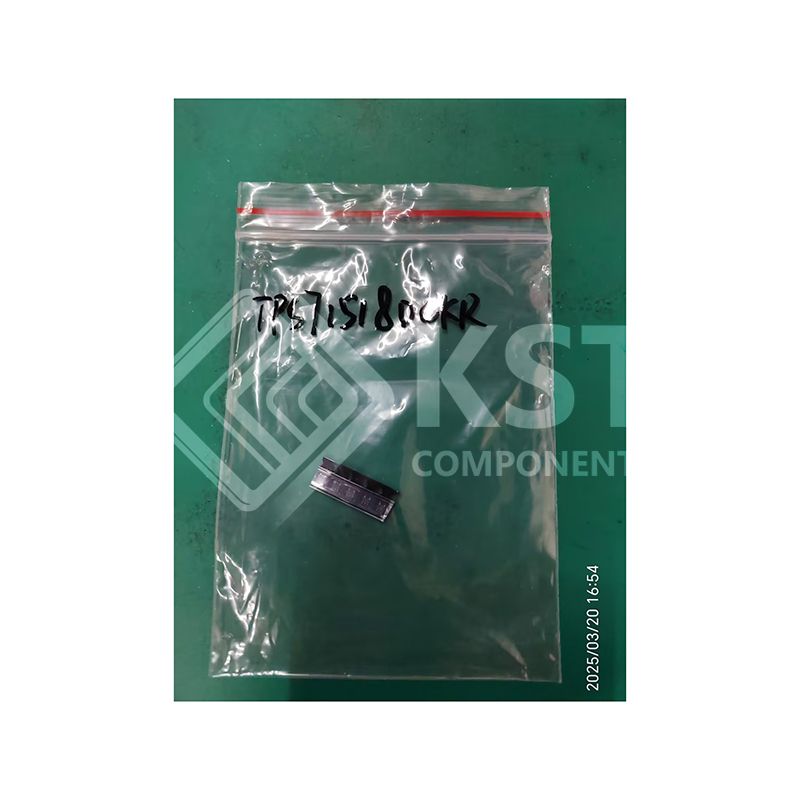

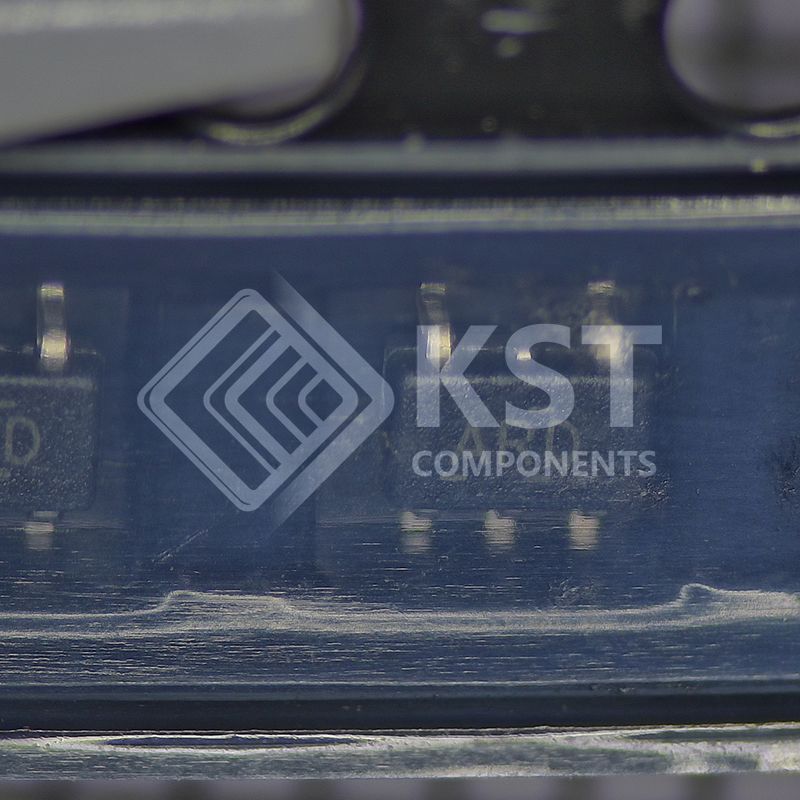

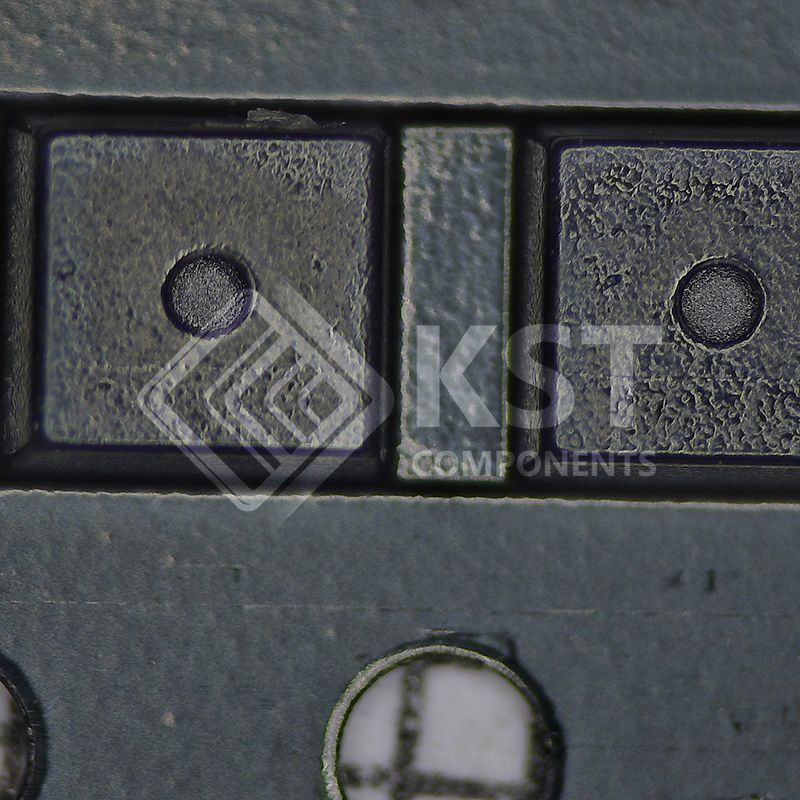

TPS71518DCKR
Part Number:
TPS71518DCKR
Product Classification:
Keylock Switches
Manufacturer:
3PEAK
Description:
IC REG LINEAR 1.8V 50MA SC-70-5
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
24V
|
|
|
Voltage - Output (Min/Fixed) |
1.8V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
0.75V @ 50mA
|
|
|
Current - Output |
50mA |
|
|
Current - Quiescent (Iq) |
4.2 µA
|
|
|
PSRR |
60dB (100kHz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Current
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
5-TSSOP, SC-70-5, SOT-353
|
|
|
Supplier Device Package |
SC-70-5
|
|
|
Base Product Number |
TPS71518 |
