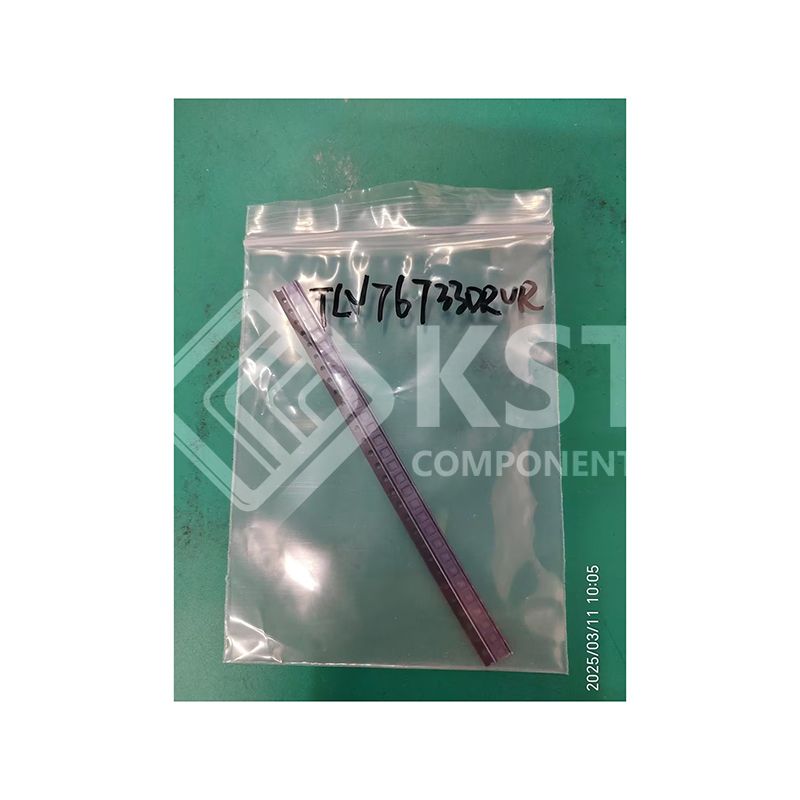

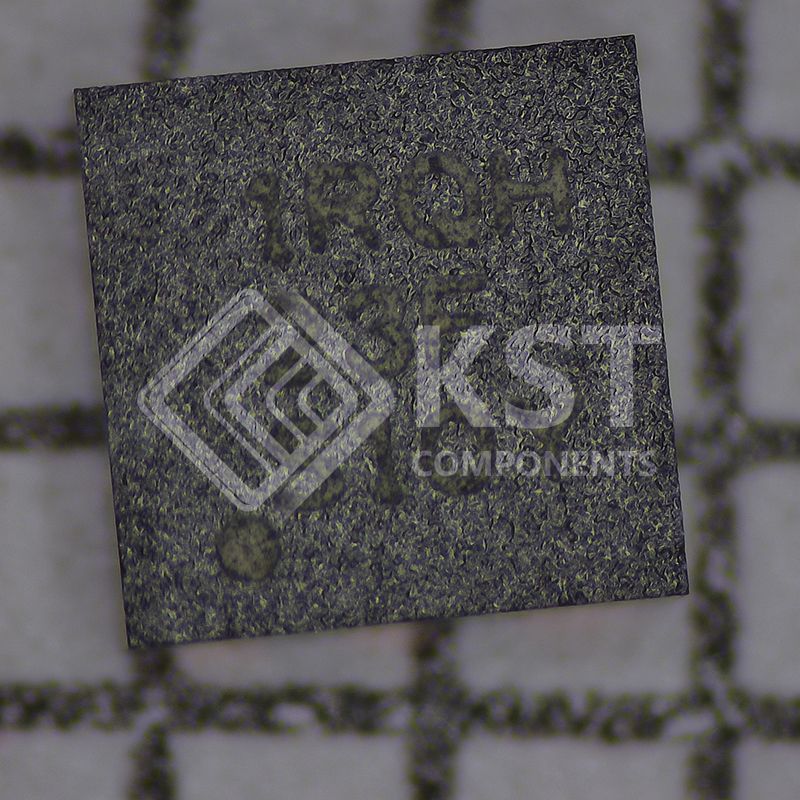

TLV76733DRVR
Part Number:
TLV76733DRVR
Product Classification:
Keylock Switches
Manufacturer:
3PEAK
Description:
IC REG LINEAR 3.3V 1A 6-WSON
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
16V
|
|
|
Voltage - Output (Min/Fixed) |
3.3V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
1.4V @ 1A
|
|
|
Current - Output |
1A |
|
|
Current - Quiescent (Iq) |
80 µA
|
|
|
Current - Supply (Max) |
1.5 mA
|
|
|
PSRR |
70dB (120Hz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

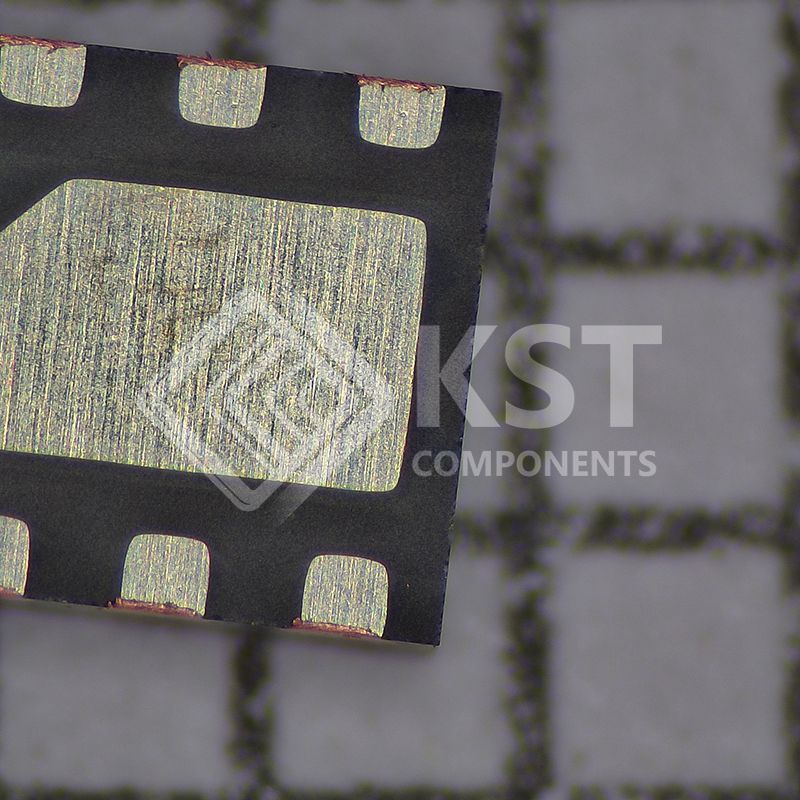

6-WDFN Exposed Pad
|
|
|
Supplier Device Package |
6-WSON (2x2)
|
|
|
Base Product Number |
TLV767 |
