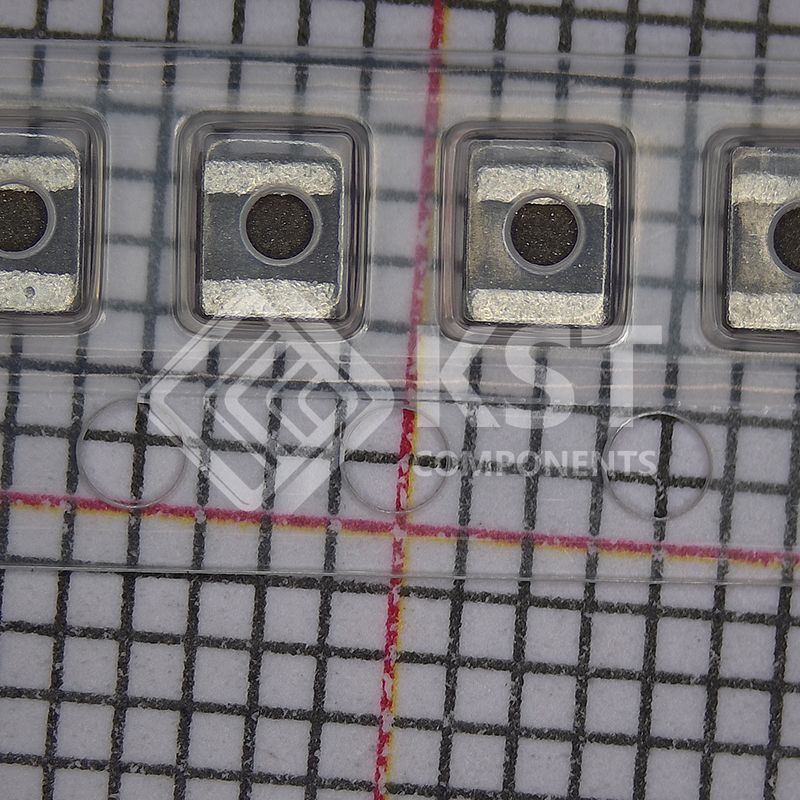

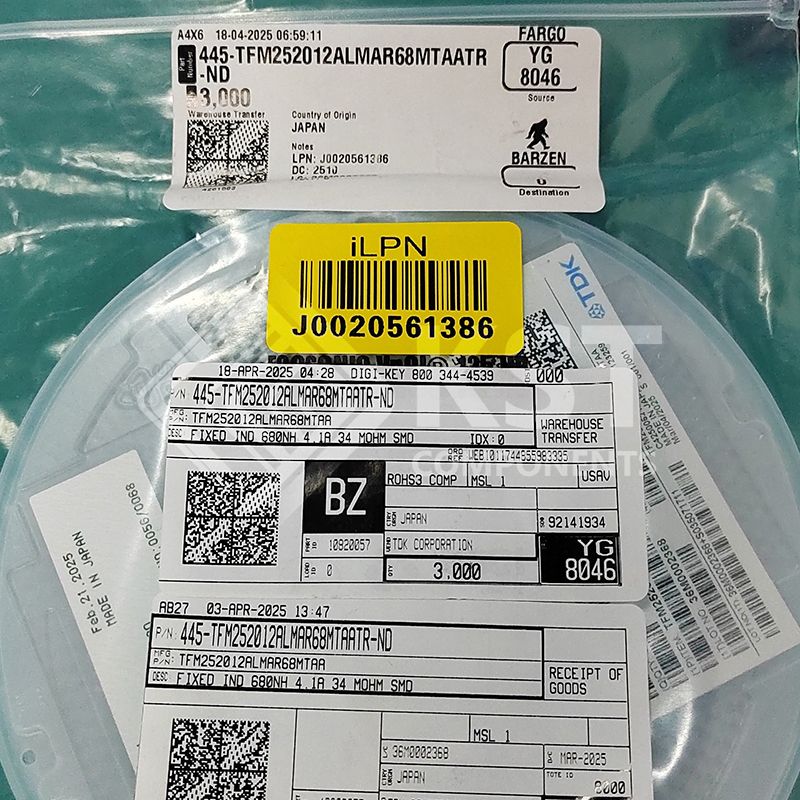

TFM252012ALMAR68MTAA
Part Number:
TFM252012ALMAR68MTAA
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Essentra Components
Description:
FIXED IND 680NH 4.1A 34 MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
TDK Corporation |
|
|
Series |
TFM-ALMA |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Thin Film
|
|
|
Material - Core |
Metal |
|
|
Inductance |
680 nH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
4.1 A |
|
|
Current - Saturation (Isat) |
4.8A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
34mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-55°C ~ 150°C
|
|
|
Inductance Frequency - Test |
1 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1008 (2520 Metric)
|
|
|
Supplier Device Package |
1008
|
|
|
Size / Dimension |
0.098" L x 0.079" W (2.50mm x 2.00mm)
|
|
|
Height - Seated (Max) |
0.047" (1.20mm)
|
