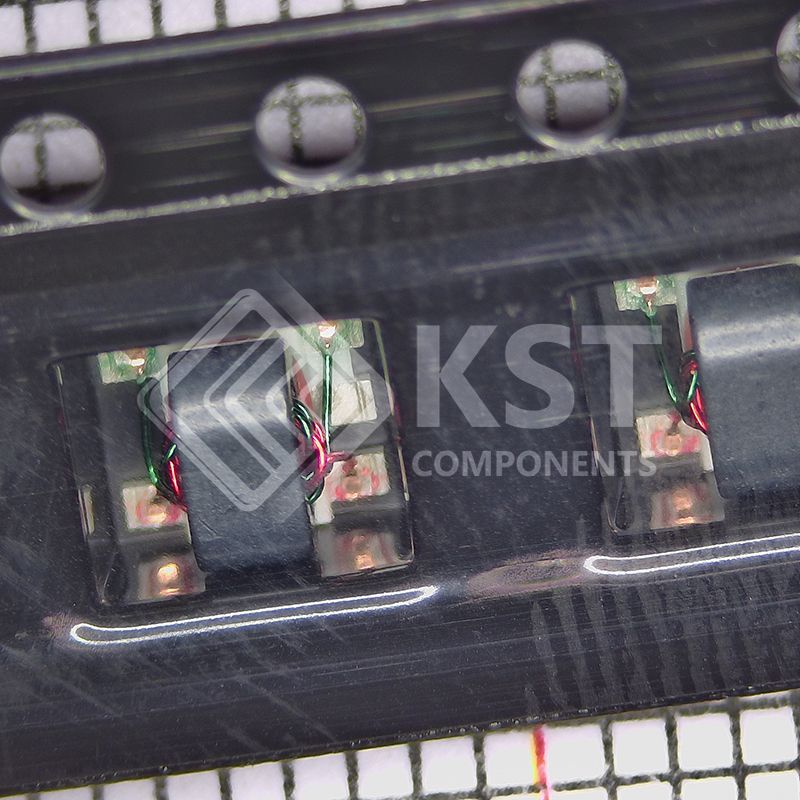

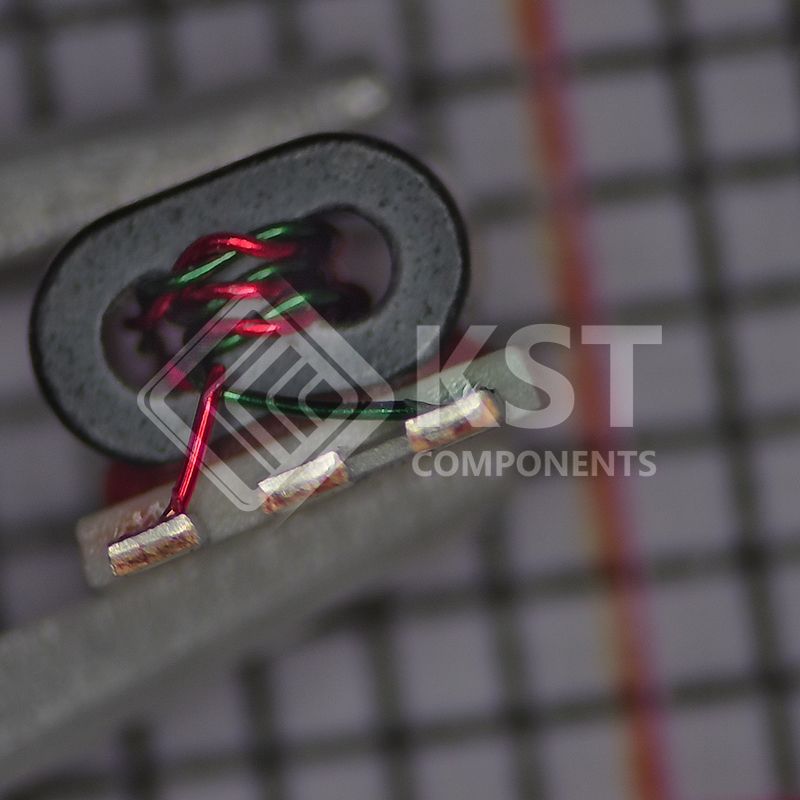

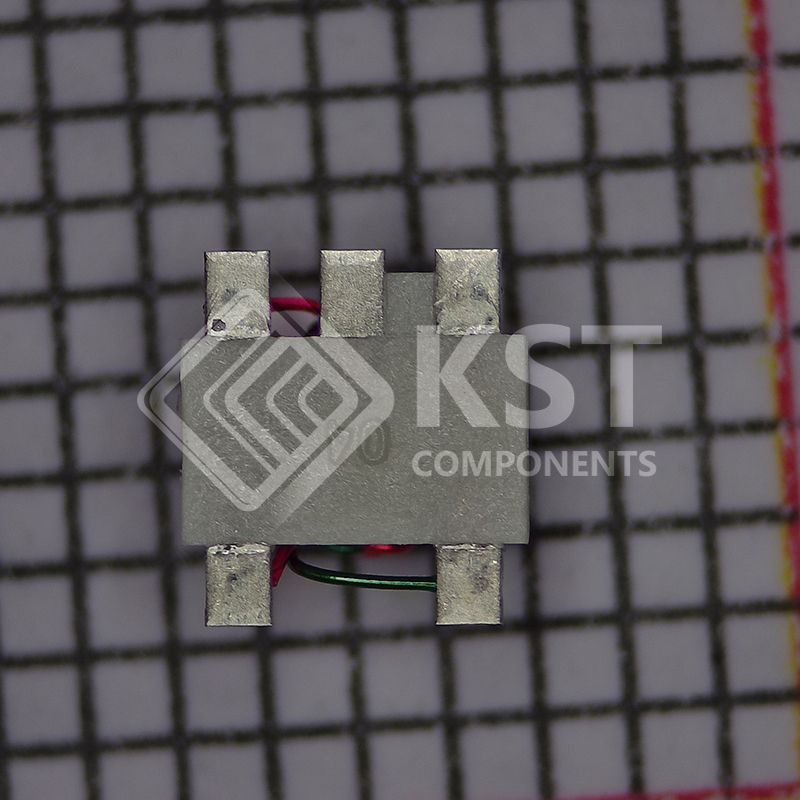

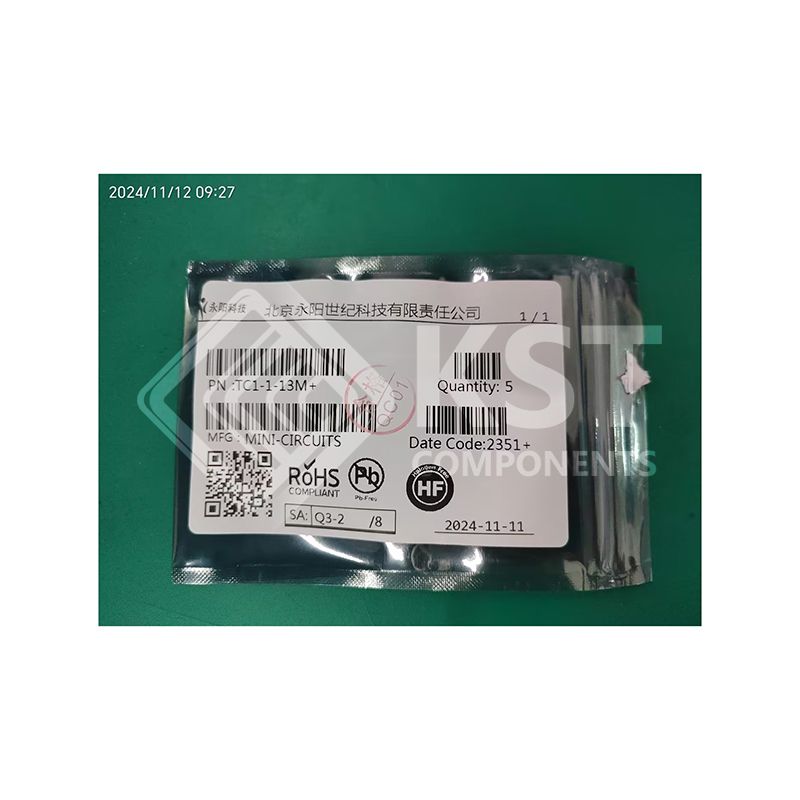

TC1-1-13M+
Part Number:
TC1-1-13M+
Product Classification:
Accessories
Manufacturer:
7STARLAKE
Description:
1:1 CORE & WIRE TRANSFORMER, 4.5
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
Balun
|
|
|
Manufacturer |
Mini-Circuits
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Frequency Range |
4.5MHz ~ 3GHz
|
|
|
Impedance - Unbalanced/Balanced |
50 / 50Ohm
|
|
|
Phase Difference |
3°
|
|
|
Insertion Loss (Max) |
3dB
|
|
|
Return Loss (Min) |
6.79dB
|
|
|
Package / Case |
6-SMD (5 Leads), Flat Lead
|
|
|
Mounting Type |
Surface Mount
|
