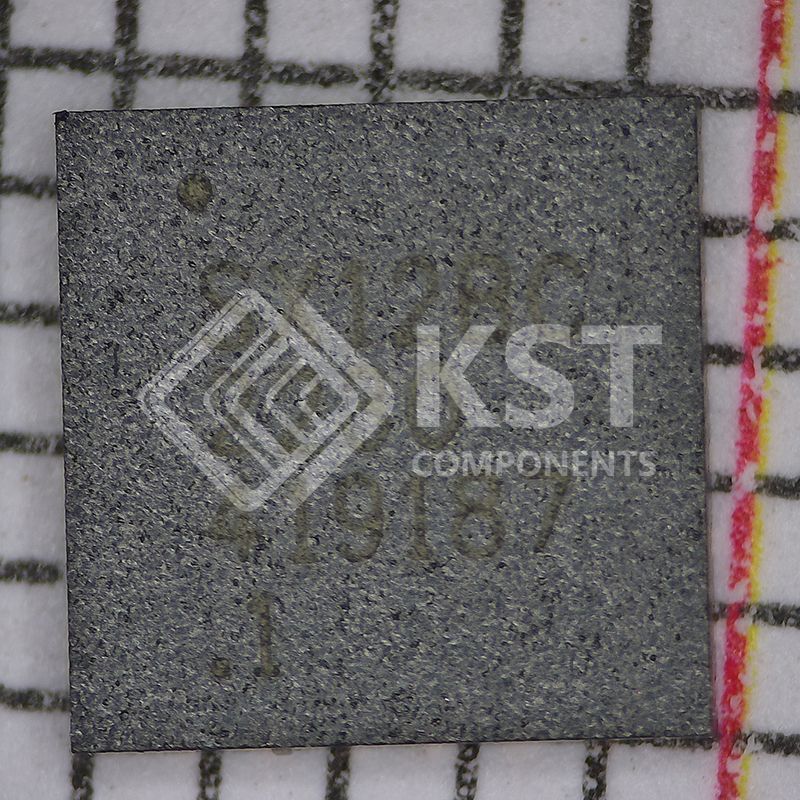

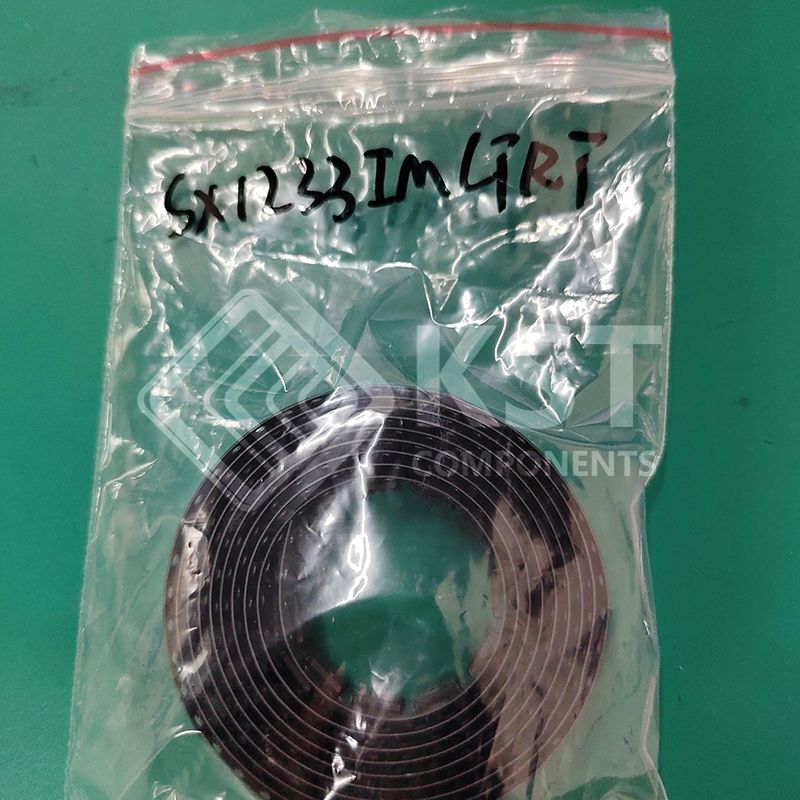

SX1233IMLTRT
Part Number:
SX1233IMLTRT
Product Classification:
Accessories
Manufacturer:
ACES GROUP
Description:
IC RF TXRX ISM<1GHZ 24QFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
RF and Wireless
RF Transceiver ICs
|
|
|
Mfr |
Semtech Corporation |
|
|
Series |
-
|
|
|
Packaging |

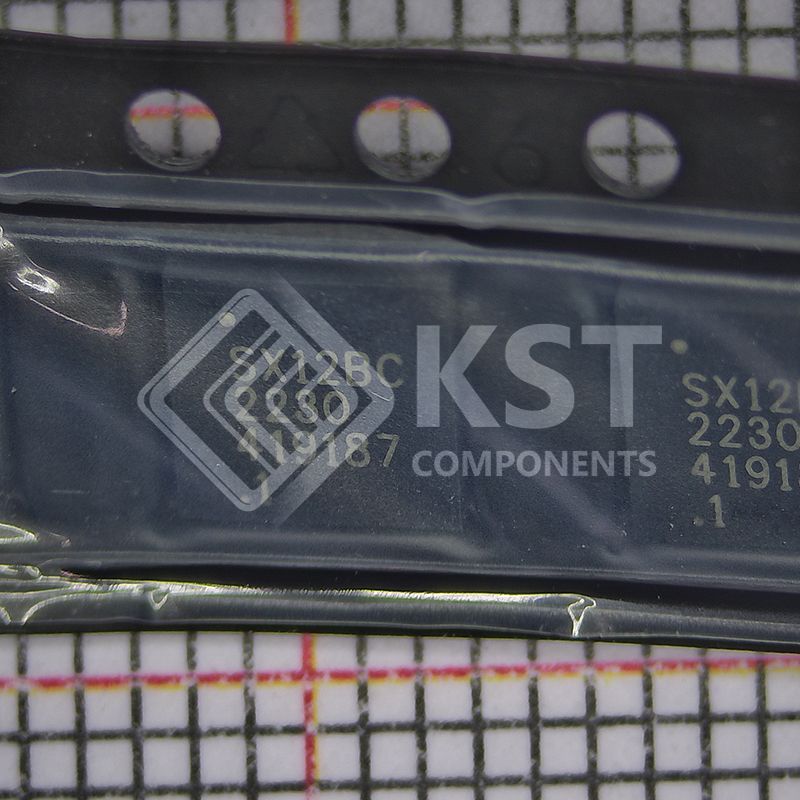

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Type |
TxRx Only
|
|
|
RF Family/Standard |
General ISM < 1GHz
|
|
|
Protocol |
-
|
|
|
Modulation |
FSK, GFSK, GMSK, MSK, OOK
|
|
|
Frequency |
290MHz ~ 340MHz, 424MHz ~ 510MHz, 862MHz ~ 1.02GHz |
|
|
Data Rate (Max) |
600kbps
|
|
|
Power - Output |
17dBm
|
|
|
Sensitivity |
-120dBm
|
|
|
Memory Size |
-
|
|
|
Serial Interfaces |
SPI
|
|
|
GPIO |
6
|
|
|
Voltage - Supply |
1.8V ~ 3.6V
|
|
|
Current - Receiving |
16mA ~ 17mA
|
|
|
Current - Transmitting |
16mA ~ 95mA
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

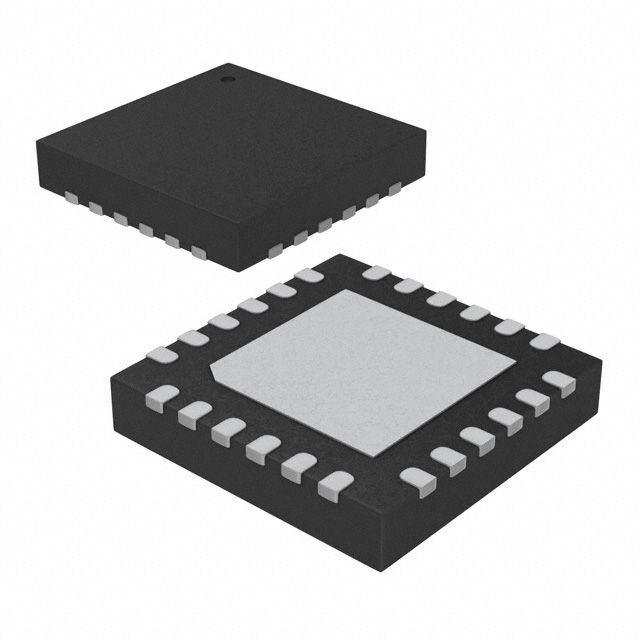

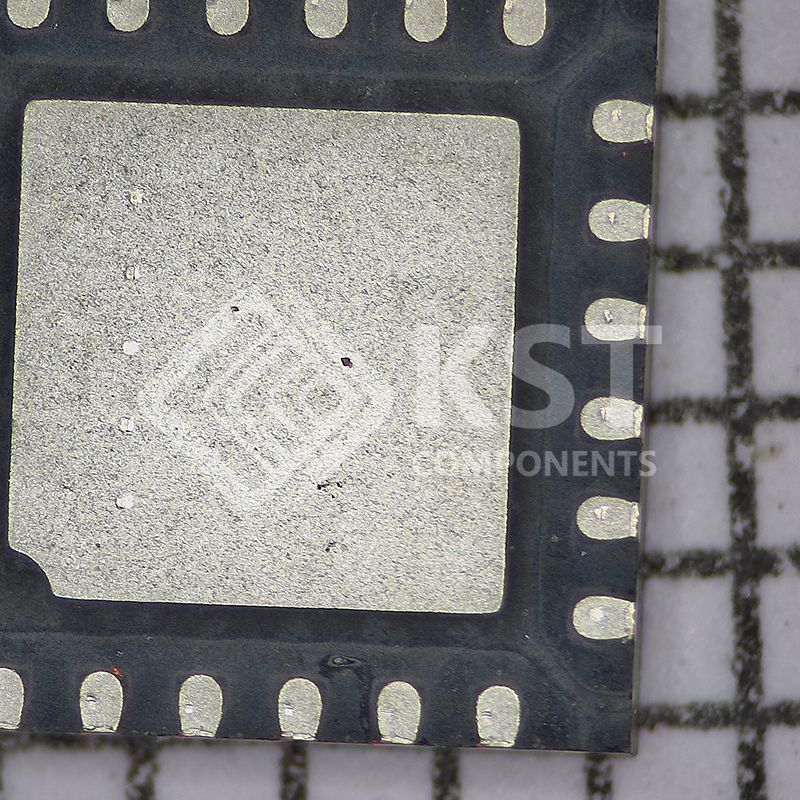

24-VQFN Exposed Pad
|
|
|
Supplier Device Package |
24-QFN (5x5)
|
|
|
Base Product Number |
SX1233 |
|
