ST1S14PHR
Part Number:
ST1S14PHR
Product Classification:
Keylock Switches
Manufacturer:
3M
Description:

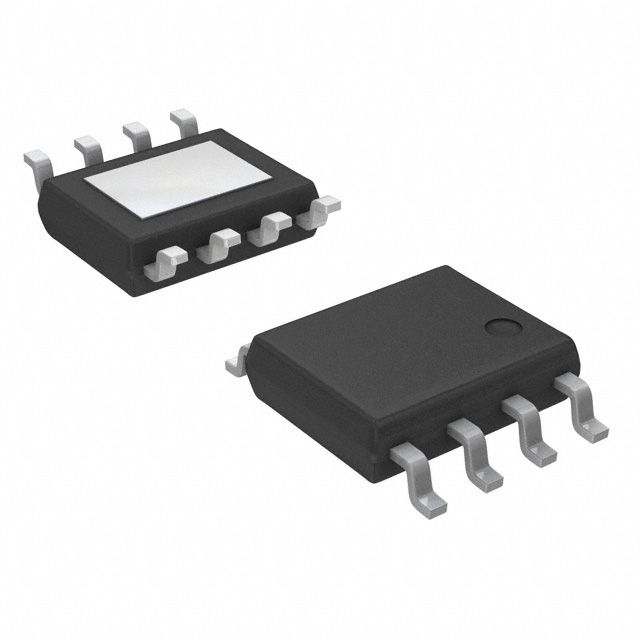

Buck Switching Regulator IC Positive Adjustable 1.22V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Packaging:
-
ROHS Status:
No
Currency:
USD
• 3 A DC output current
• Operating input voltage from 5.5 V to 48 V
• 850 kHz internally fixed switching frequency
• Internal soft-start
• Power good open collector output
• Current mode architecture
• Embedded compensation network
• Zero load current operation
• Internal current limiting
• Inhibit for zero current consumption
• 2 mA maximum quiescent current over
temperature range
• 250 mΩ typ. RDS(on)
• Thermal shutdown
