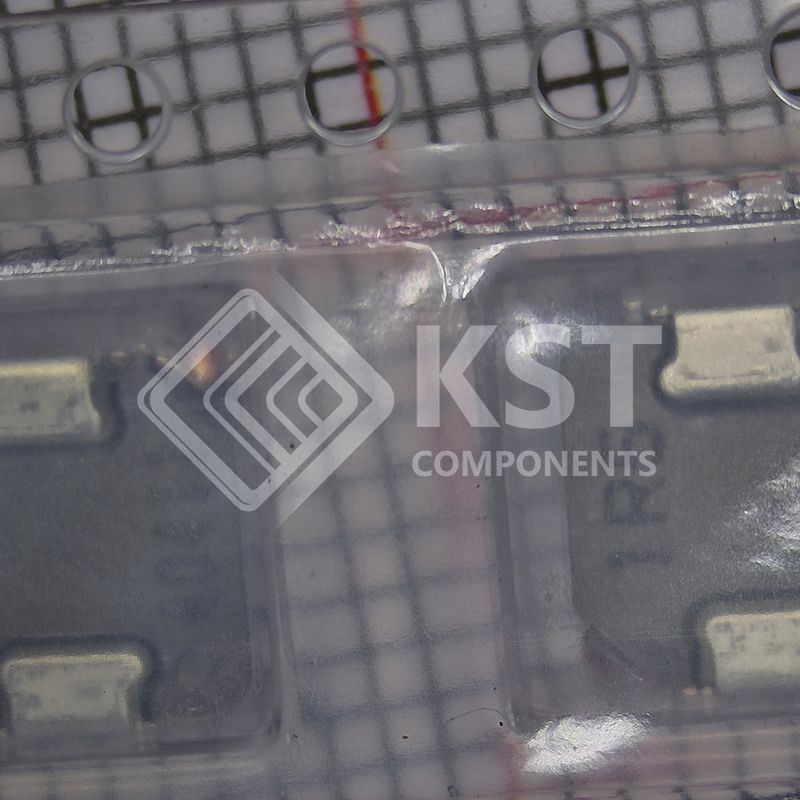

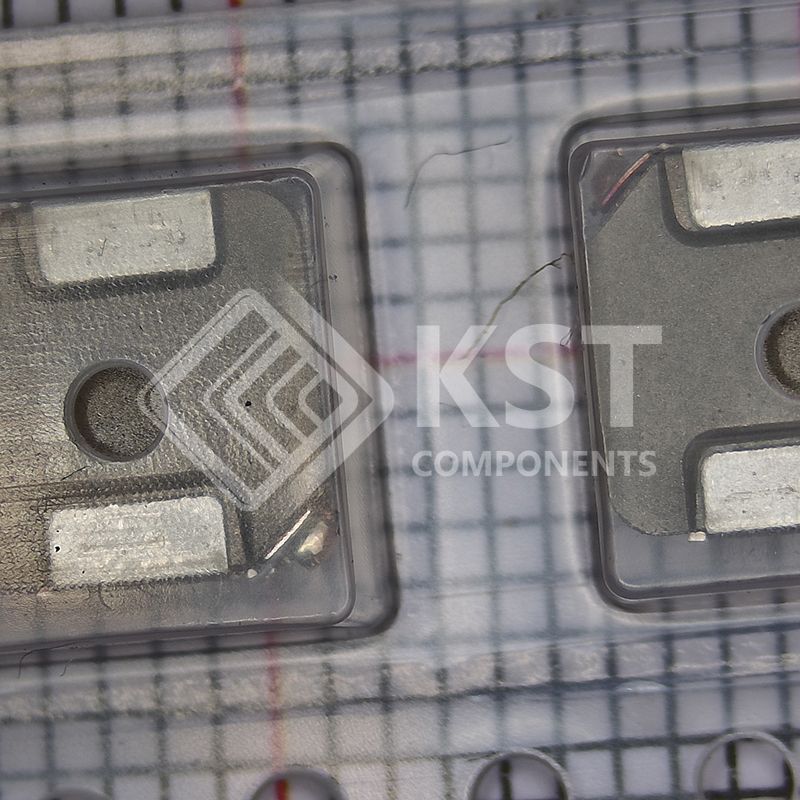

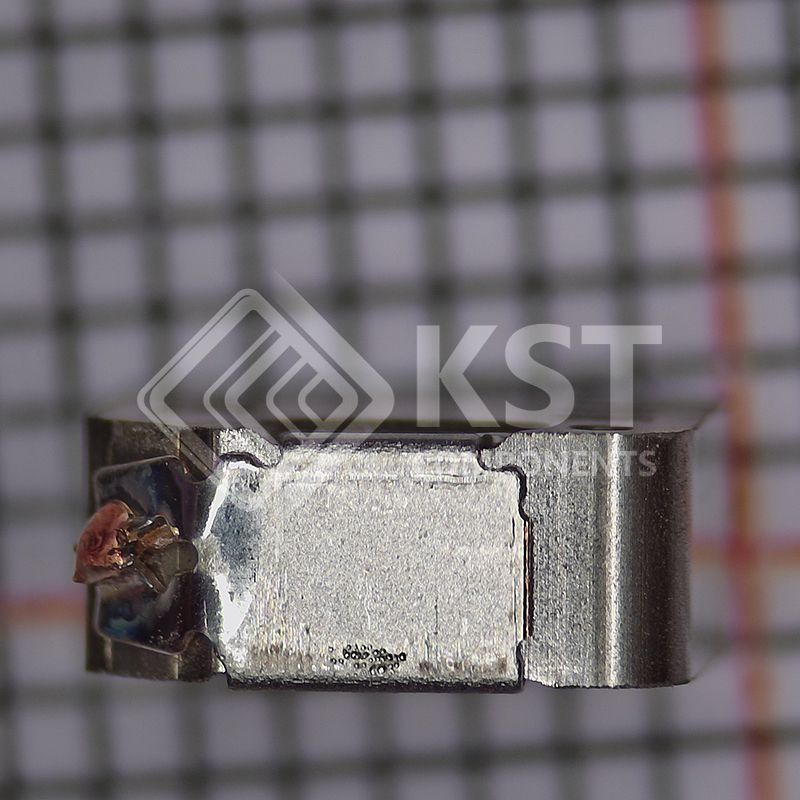

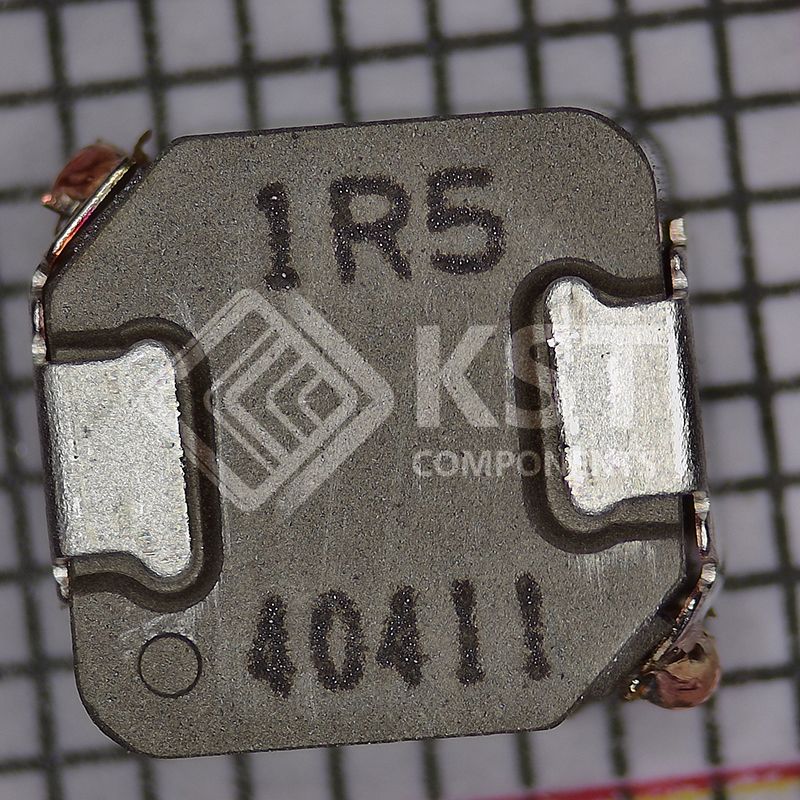

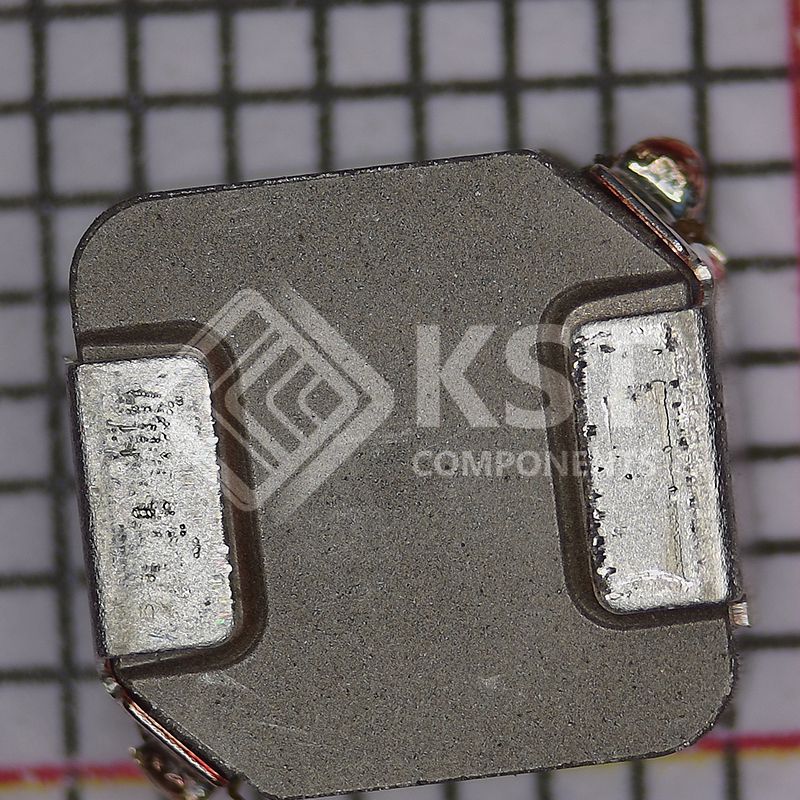

SPM6530T-1R5M100
Part Number:
SPM6530T-1R5M100
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Essentra Components
Description:
FIXED IND 1.5UH 11A 10.67MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
TDK Corporation |
|
|
Series |
SPM |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Metal |
|
|
Inductance |
1.5 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
11 A |
|
|
Current - Saturation (Isat) |
11.5A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
10.67mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.280" L x 0.256" W (7.10mm x 6.50mm)
|
|
|
Height - Seated (Max) |
0.118" (3.00mm)
|
