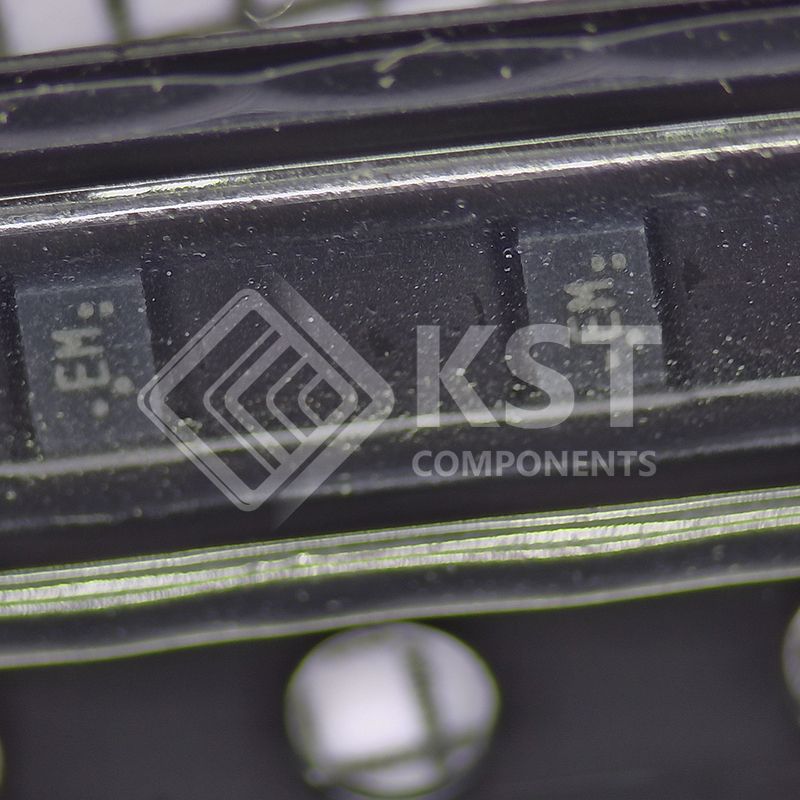

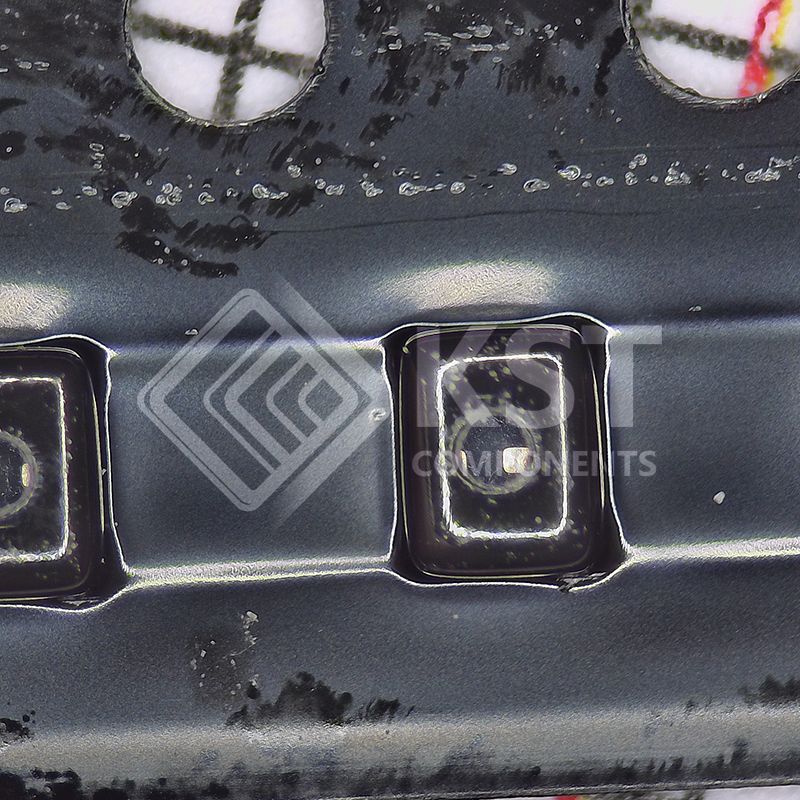

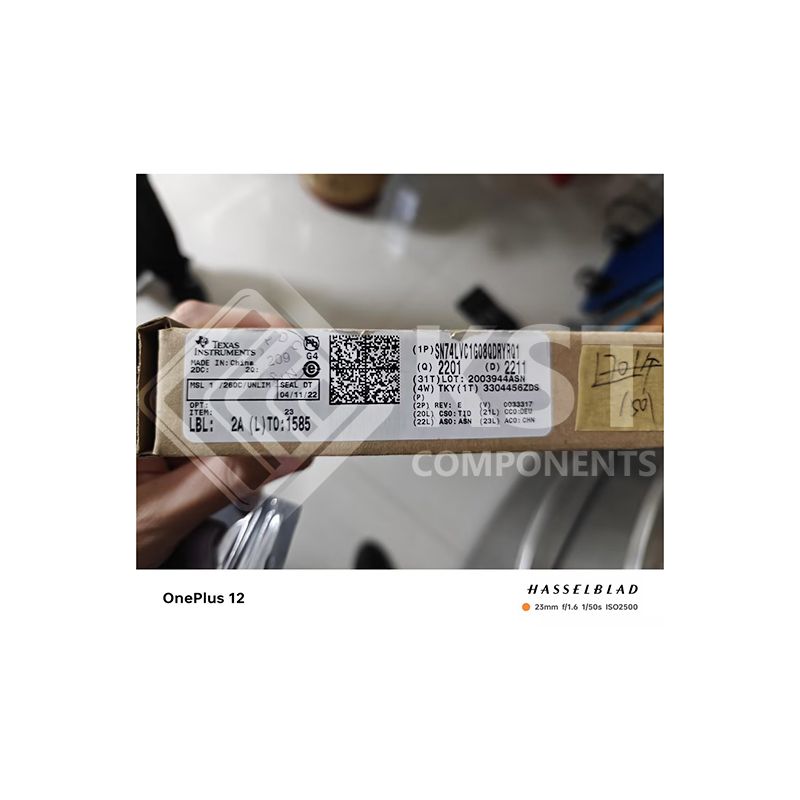

SN74LVC1G08QDRYRQ1
Part Number:
SN74LVC1G08QDRYRQ1
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
IC GATE AND 1CH 2-INP 6SON

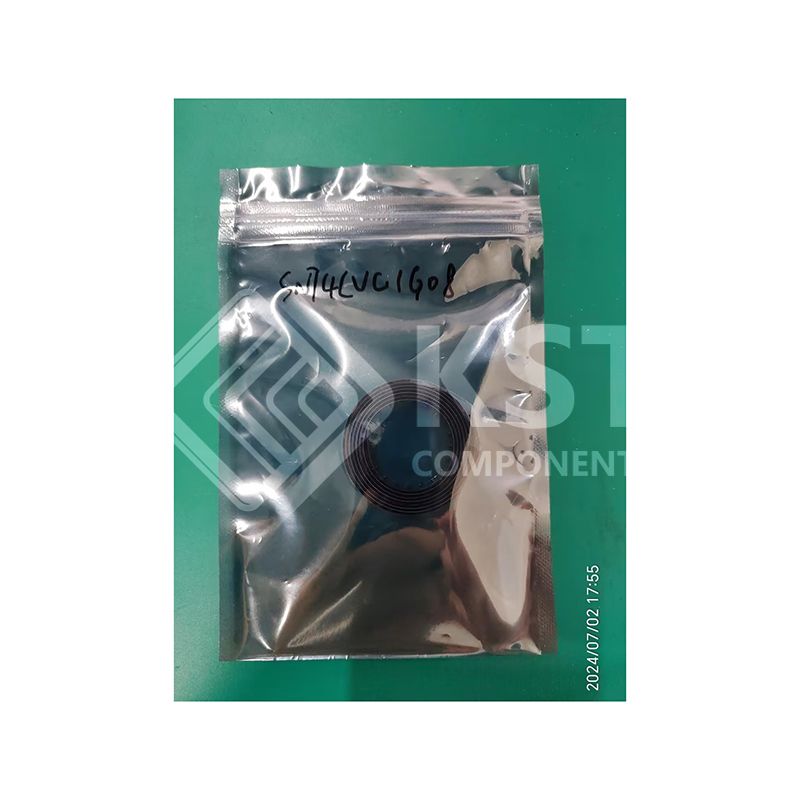

Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Gates and Inverters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
74LVC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
AND Gate |
|
|
Number of Circuits |
1
|
|
|
Number of Inputs |
2
|
|
|
Features |
-
|
|
|
Voltage - Supply |
1.65V ~ 5.5V
|
|
|
Current - Quiescent (Max) |
10 µA
|
|
|
Current - Output High, Low |
32mA, 32mA
|
|
|
Input Logic Level - Low |
0.7V ~ 0.8V
|
|
|
Input Logic Level - High |
1.7V ~ 2V
|
|
|
Max Propagation Delay @ V, Max CL |
6ns @ 5V, 50pF
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
6-SON (1.45x1)
|
|
|
Package / Case |
6-UFDFN
|
|
|
Base Product Number |
74LVC1G08 |
