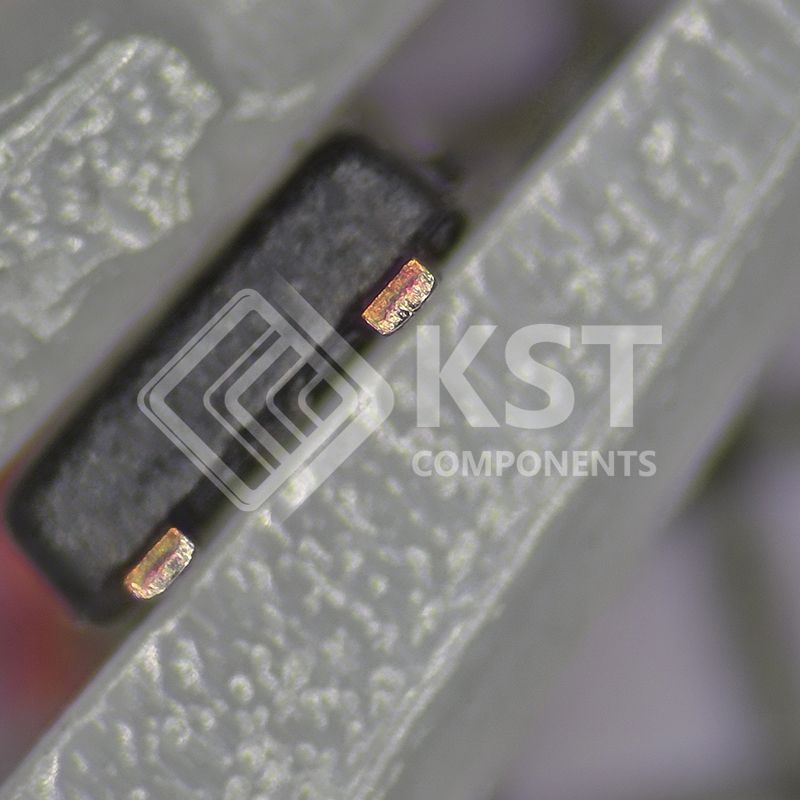

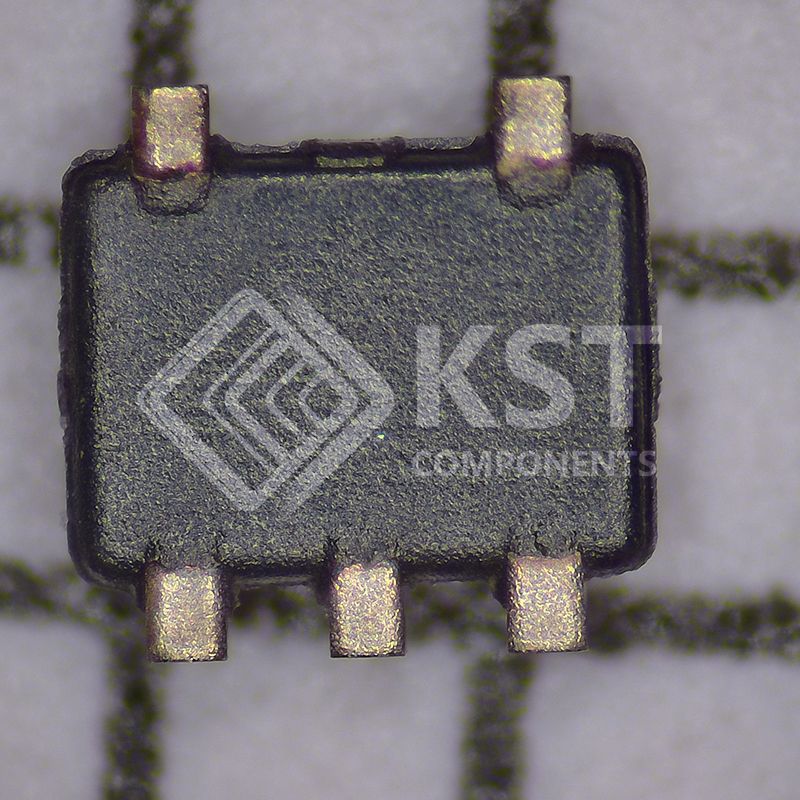

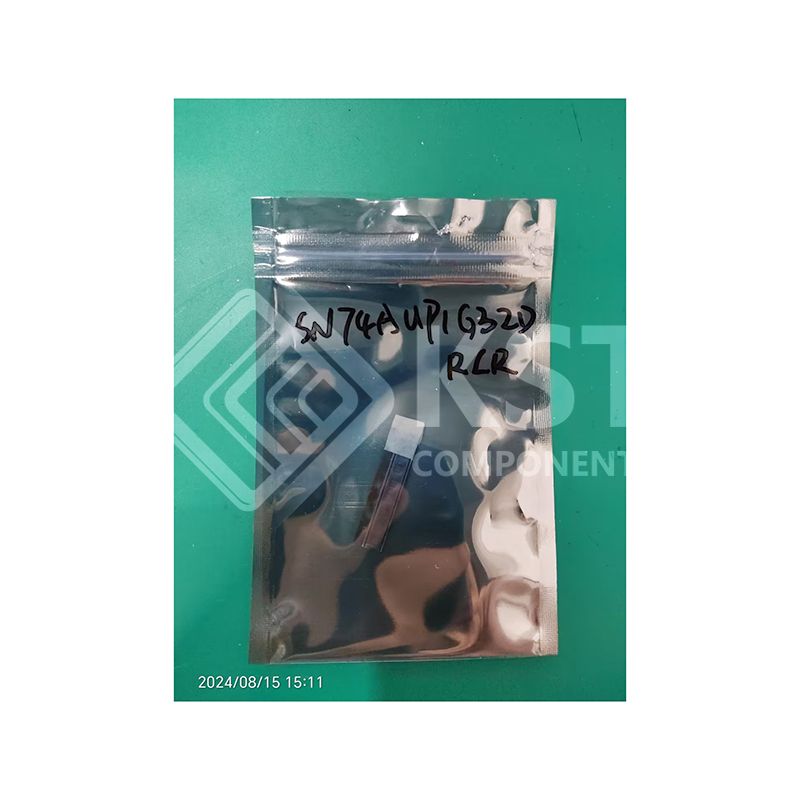

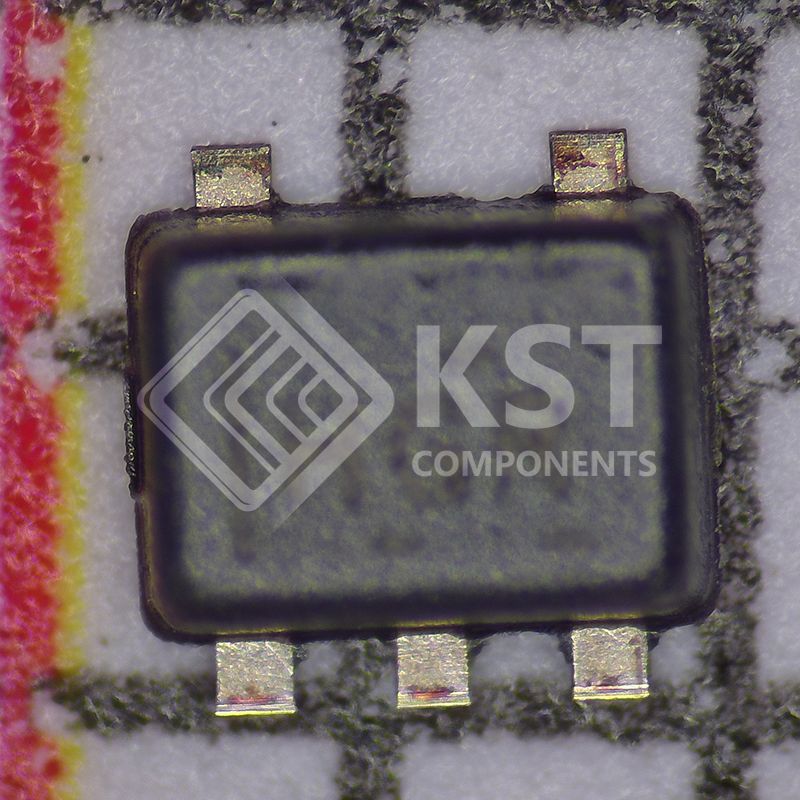

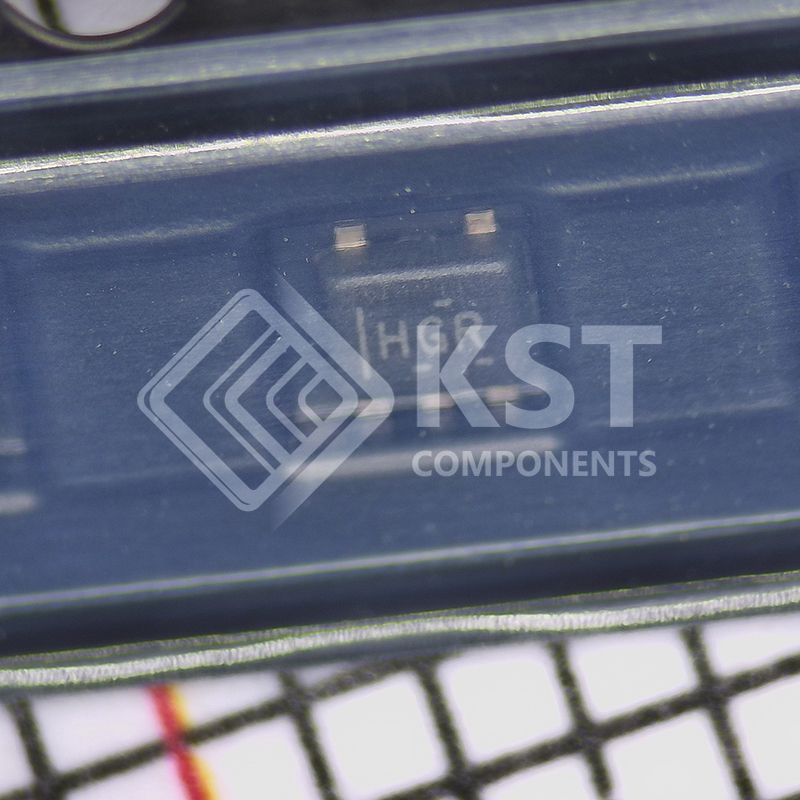

SN74AUP1G32DRLR
Part Number:
SN74AUP1G32DRLR
Product Classification:
Accessories - Boots, Seals
Manufacturer:
3PEAK
Description:
IC GATE OR 1CH 2-INP SOT5
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Logic
Gates and Inverters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
74AUP |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
OR Gate |
|
|
Number of Circuits |
1
|
|
|
Number of Inputs |
2
|
|
|
Features |
-
|
|
|
Voltage - Supply |
0.8V ~ 3.6V
|
|
|
Current - Quiescent (Max) |
500 nA
|
|
|
Current - Output High, Low |
4mA, 4mA
|
|
|
Input Logic Level - Low |
0.7V ~ 0.9V
|
|
|
Input Logic Level - High |
1.6V ~ 2V
|
|
|
Max Propagation Delay @ V, Max CL |
6.4ns @ 3.3V, 30pF
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
SOT-5
|
|
|
Package / Case |
SOT-553
|
|
|
Base Product Number |
74AUP1G32 |
