Category |
Integrated Circuits (ICs)
Logic
Buffers, Drivers, Receivers, Transceivers
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
7400 |
|
|
Packaging |

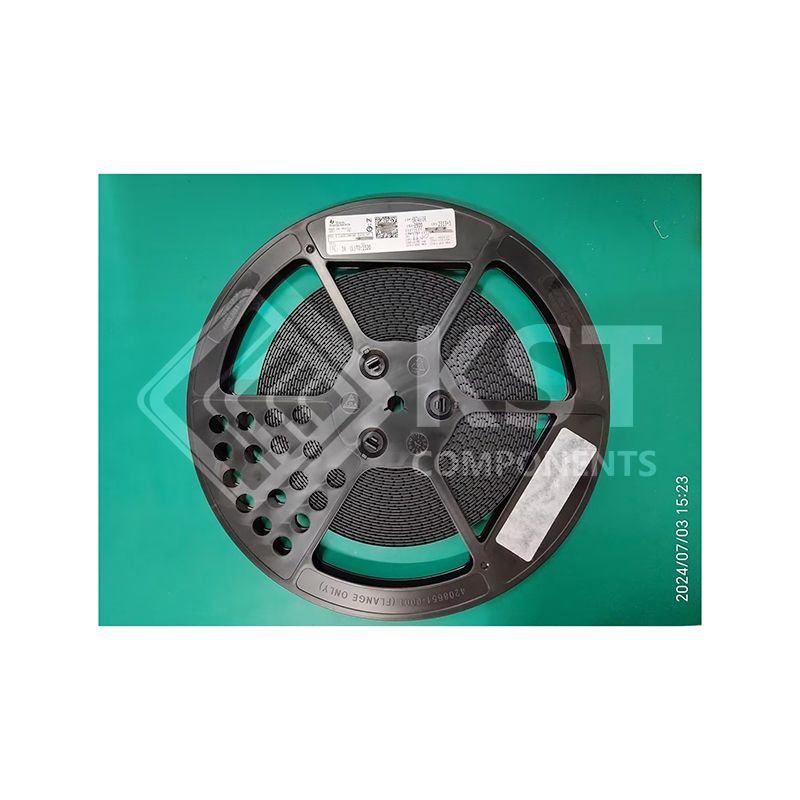

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Logic Type |
Buffer, Non-Inverting
|
|
|
Number of Elements |
6
|
|
|
Number of Bits per Element |
1
|
|
|
Input Type |
-
|
|
|
Output Type |
Open Collector
|
|
|
Current - Output High, Low |
-, 40mA
|
|
|
Voltage - Supply |
4.75V ~ 5.25V
|
|
|
Operating Temperature |
0°C ~ 70°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
14-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
14-SOIC
|
|
|
Base Product Number |
SN7407 |
