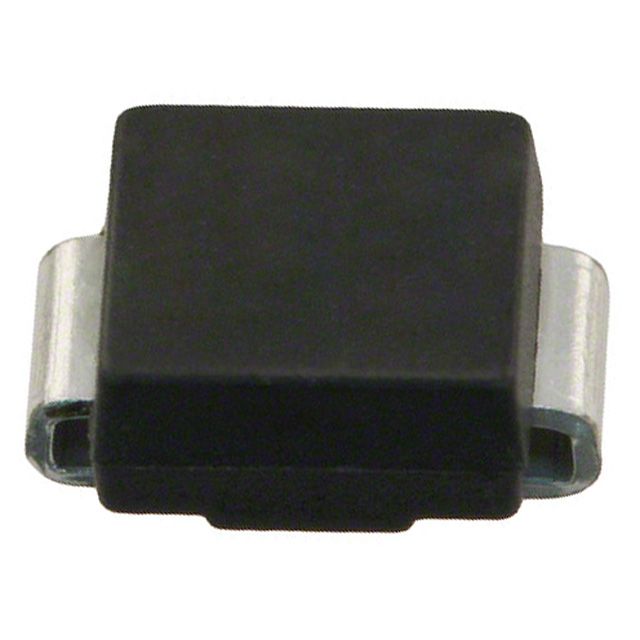

SM6T10A
Part Number:
SM6T10A
Product Classification:
Configurable Switch Lens
Manufacturer:
3M
Description:
TVS DIODE 8.55VWM 14.5VC SMB
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
SM6T, TRANSIL™ |
|
|

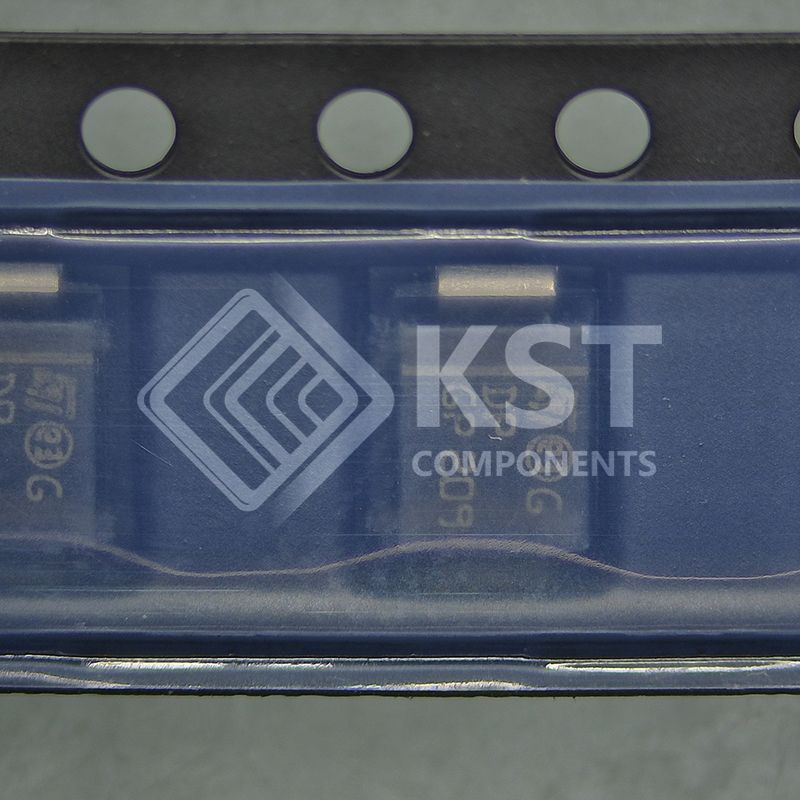

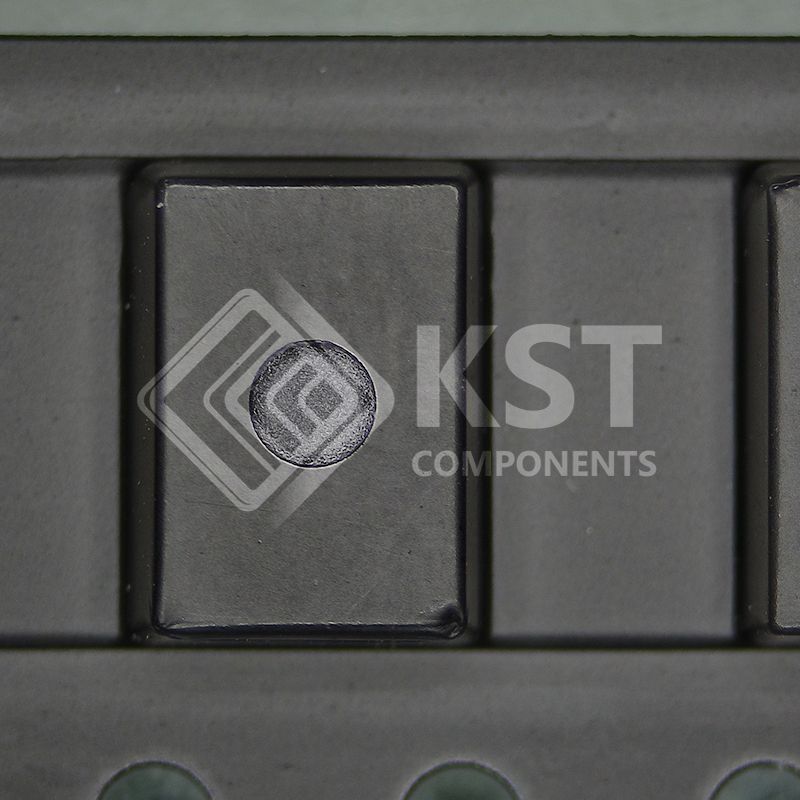

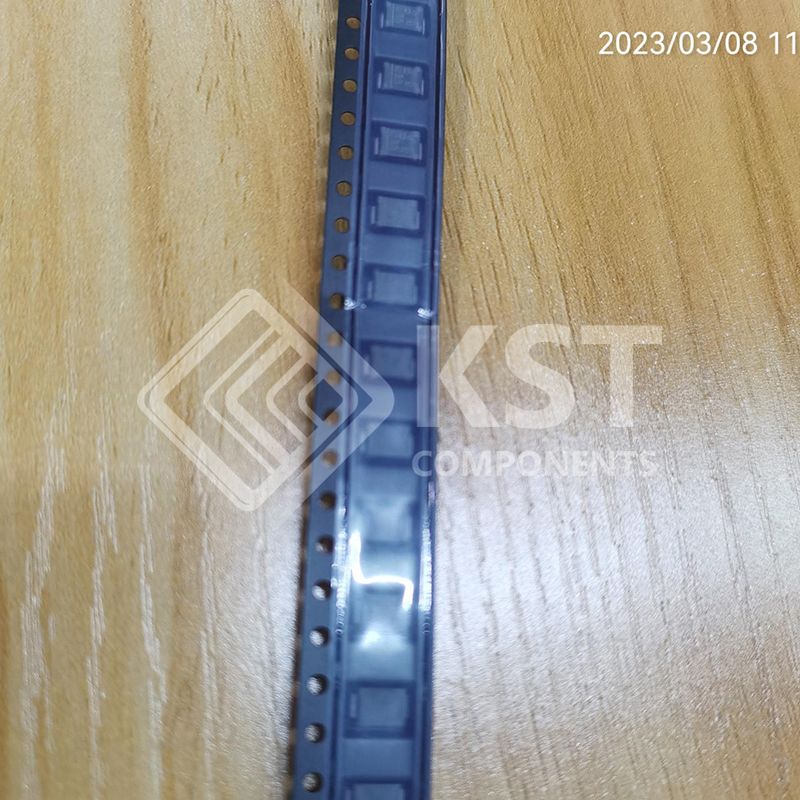

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Unidirectional Channels |
1
|
|
|
Voltage - Reverse Standoff (Typ) |
8.55V
|
|
|
Voltage - Breakdown (Min) |
9.5V
|
|
|
Voltage - Clamping (Max) @ Ipp |
14.5V
|
|
|
Current - Peak Pulse (10/1000µs) |
41A
|
|
|
Power - Peak Pulse |
600W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
General Purpose
|
|
|
Capacitance @ Frequency |
-
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
DO-214AA, SMB
|
|
|
Supplier Device Package |
SMB |
|
|
Base Product Number |
SM6T10 |
