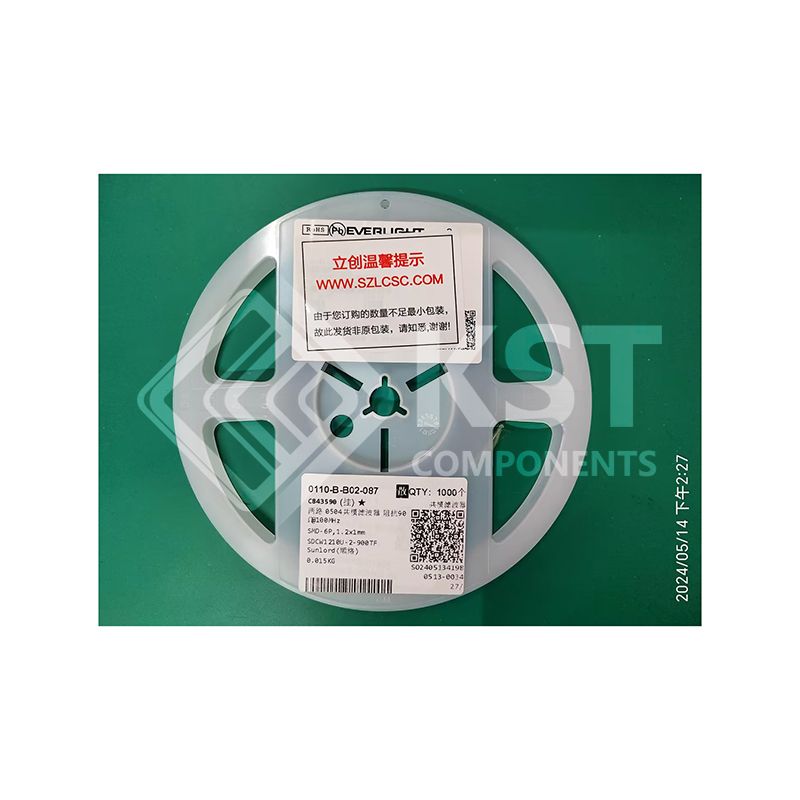

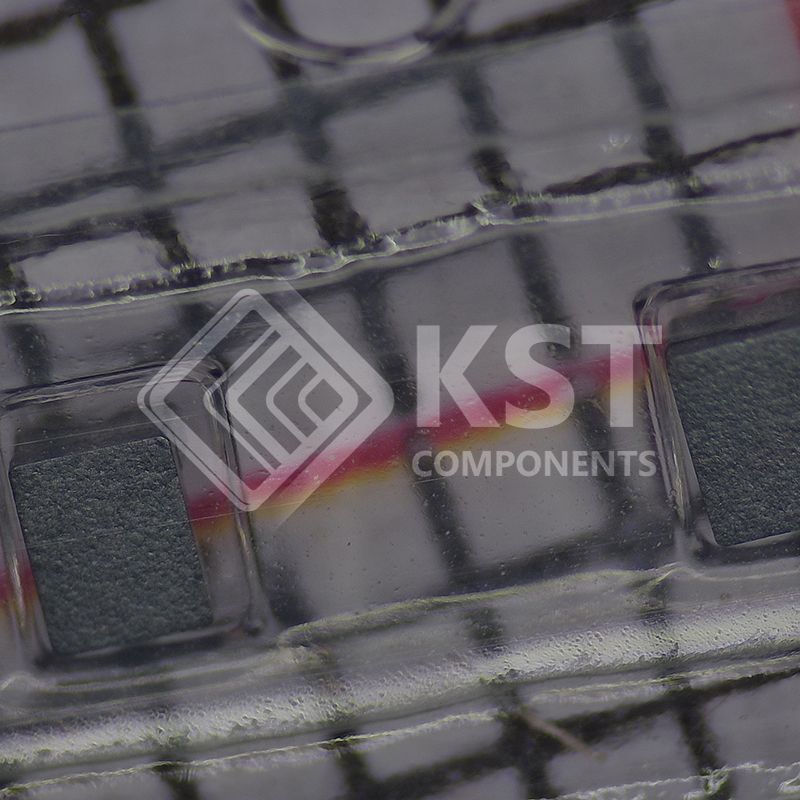

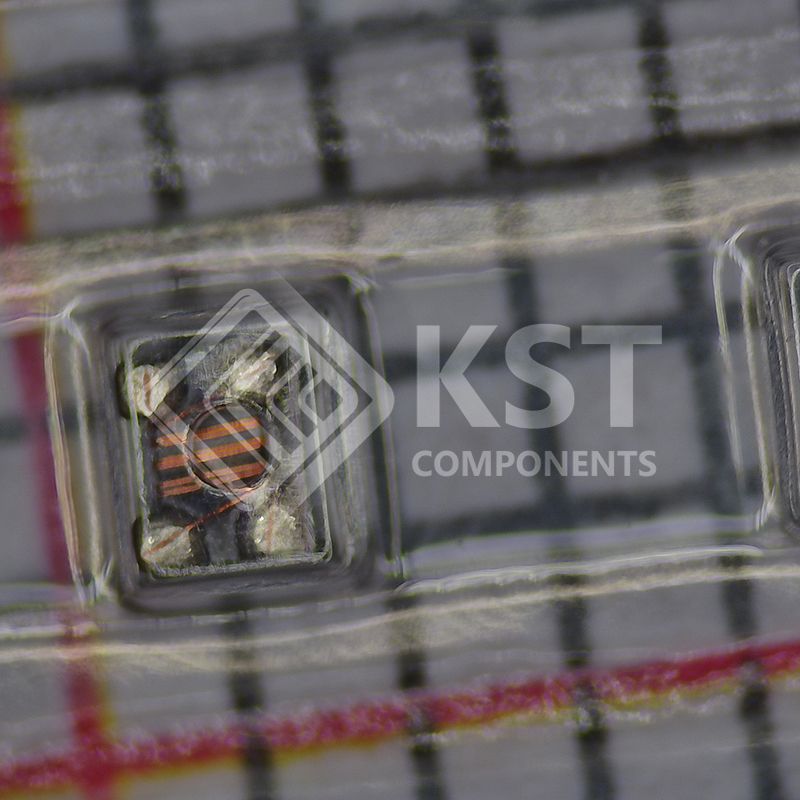

SDCW1210U-2-900TF
Part Number:
SDCW1210U-2-900TF
Product Classification:
I/O Relay Modules
Manufacturer:
Times Microwave Systems
Description:
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 280mA DCR 500mOhm
Packaging:
-
ROHS Status:
No
Currency:
USD
|
Manufacturer |
Shenzhen Sunlord Electronics Co., Ltd.
|
|
|
Series |
|
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Filter Type |
Signal Line
|
|
|
Number of Lines |
2
|
|
|
Impedance @ Frequency |
90 Ohms @ 100 MHz
|
|
|
Current Rating (Max) |
280mA
|
|
|
DC Resistance (DCR) (Max) |
500mOhm
|
|
|
Voltage Rating - DC |
20V
|
|
|
Voltage Rating - AC |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Ratings |
-
|
|
|
Approval Agency |
-
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Size / Dimension |
0.047" L x 0.039" W (1.20mm x 1.00mm)
|
|
|
Height (Max) |
0.035" (0.90mm)
|
|
|
Package / Case |
0504 (1210 Metric), 4 PC Pad
|
