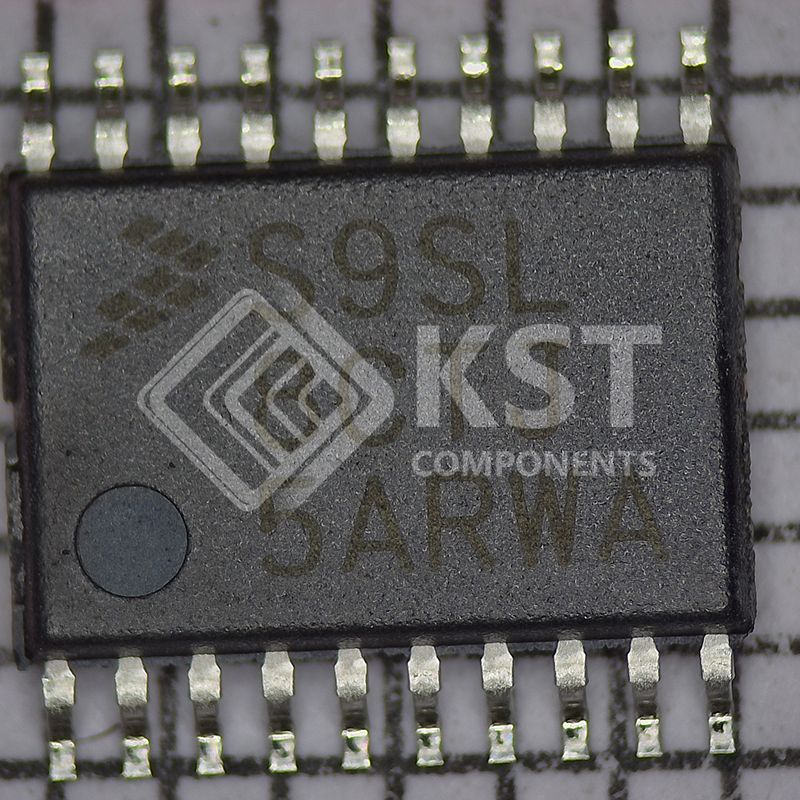

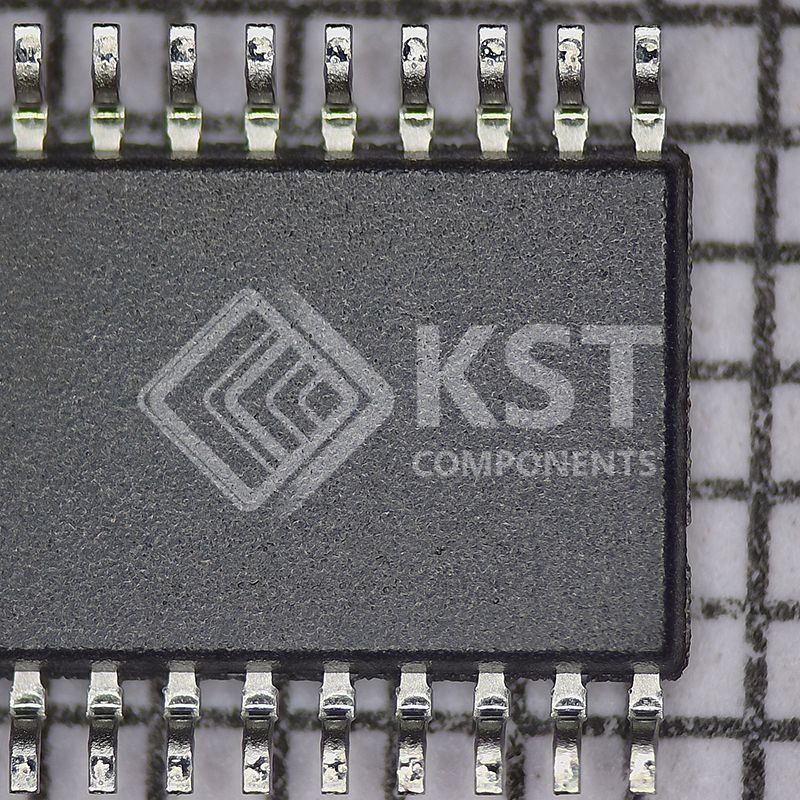

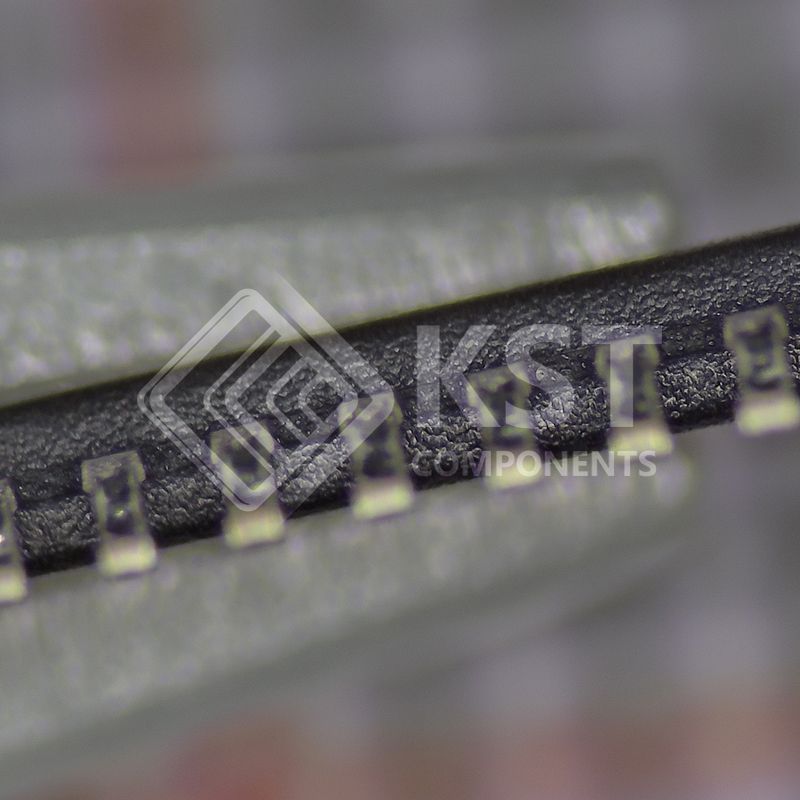

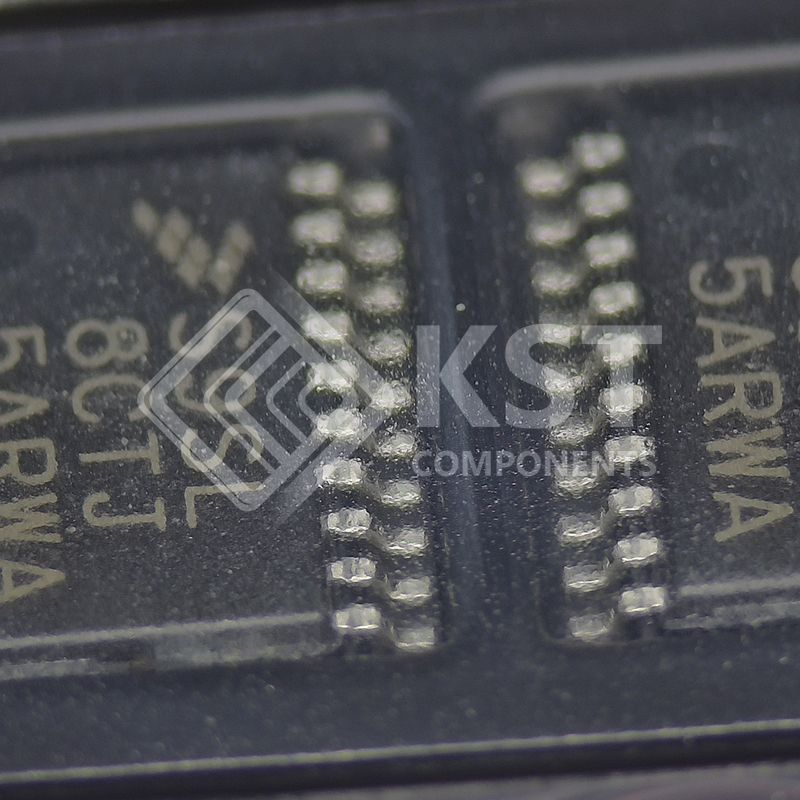

S9S08SL8F1CTJR
Part Number:
S9S08SL8F1CTJR
Product Classification:
Audio Transformers
Manufacturer:
AirBorn
Description:
IC MCU 8BIT 8KB FLASH 20TSSOP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Embedded
Microcontrollers
|
|
|
Mfr |
NXP USA Inc. |
|
|
Series |
S08 |
|
|

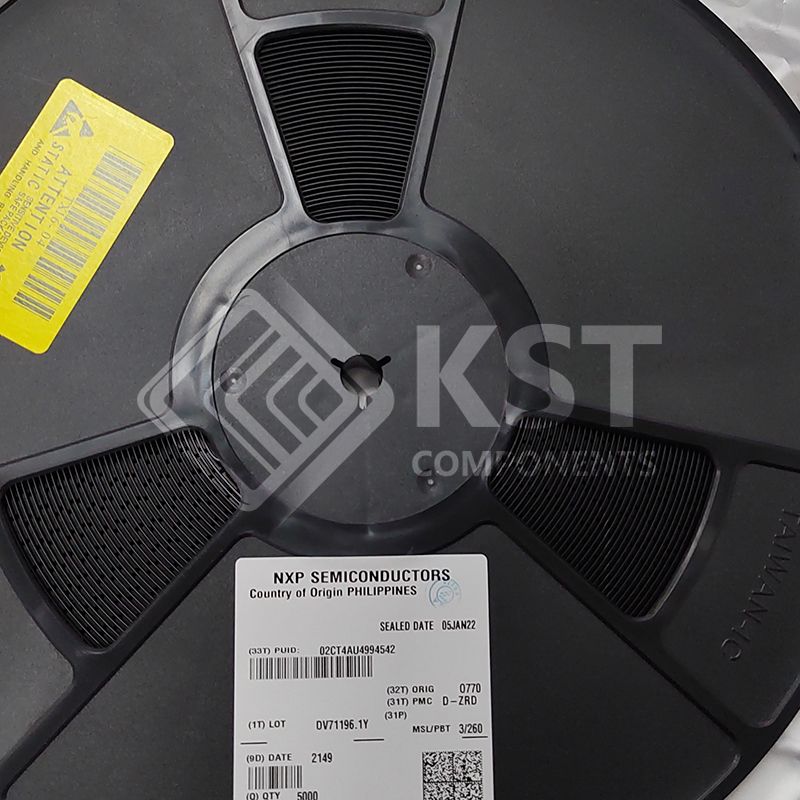

Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
DigiKey Programmable |
Not Verified
|
|
|
Core Processor |
S08
|
|
|
Core Size |
8-Bit
|
|
|
Speed |
40MHz
|
|
|
Connectivity |
I2C, LINbus, SCI, SPI
|
|
|
Peripherals |
LVD, POR, PWM, WDT
|
|
|
Number of I/O |
16
|
|
|
Program Memory Size |
8KB (8K x 8) |
|
|
Program Memory Type |
FLASH
|
|
|
EEPROM Size |
256 x 8
|
|
|
RAM Size |
512 x 8
|
|
|
Voltage - Supply (Vcc/Vdd) |
2.7V ~ 5.5V
|
|
|
Data Converters |
A/D 12x10b
|
|
|
Oscillator Type |
External
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
20-TSSOP
|
|
|
Package / Case |
20-TSSOP (0.173", 4.40mm Width)
|
|
|
Base Product Number |
S9S08 |
