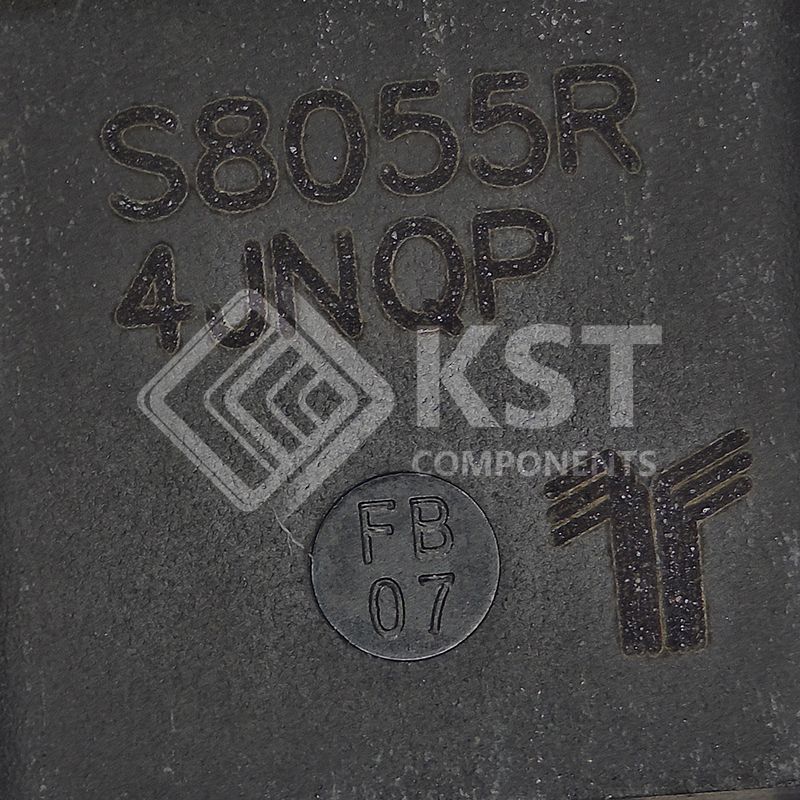

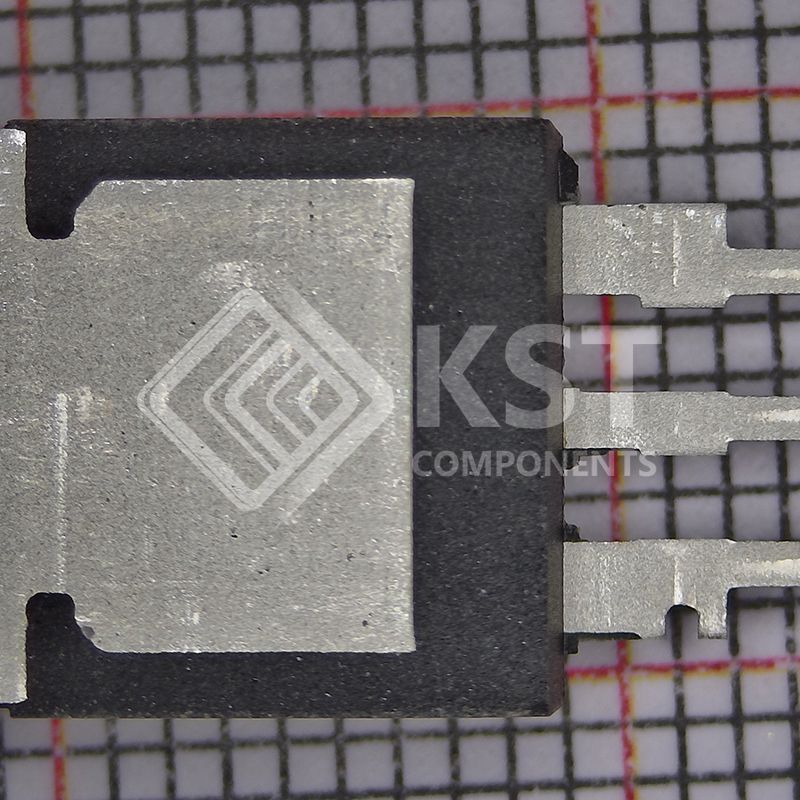

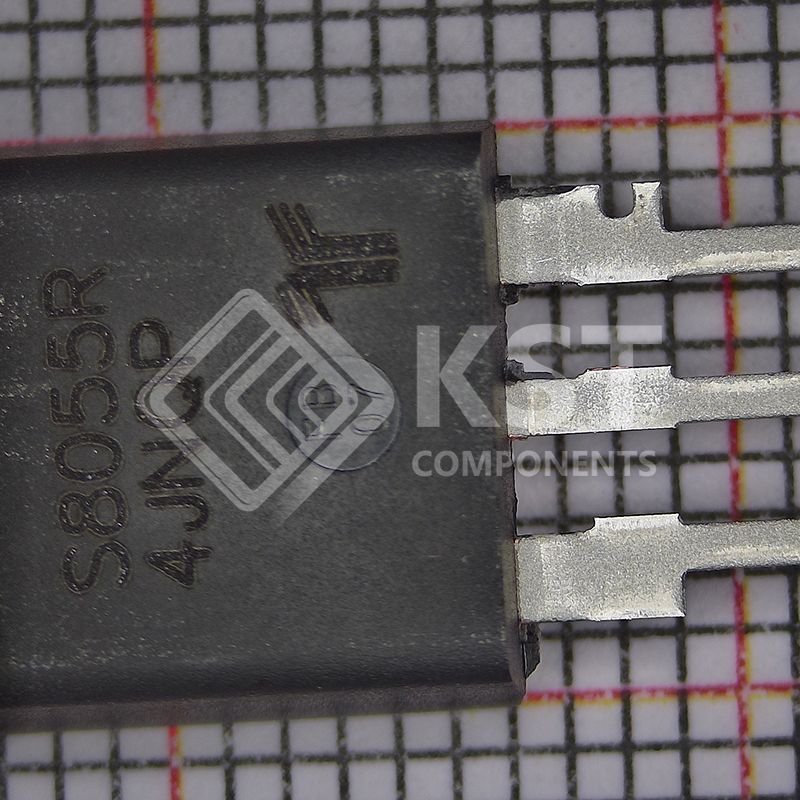

S8055RTP
Part Number:
S8055RTP
Product Classification:
Electrical, Specialty Fuses
Manufacturer:
AEM Aerospace and Defense
Description:
SCR 800V 55A TO220
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Thyristors
SCRs
|
|
|
Manufacturer |
Littelfuse Inc.
|
|
|
Series |
-
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Voltage - Off State |
800 V
|
|
|
Voltage - Gate Trigger (Vgt) (Max) |
1.5 V
|
|
|
Current - Gate Trigger (Igt) (Max) |
40 mA
|
|
|
Voltage - On State (Vtm) (Max) |
1.8 V
|
|
|
Current - On State (It (AV)) (Max) |
35 A
|
|
|
Current - On State (It (RMS)) (Max) |
55 A
|
|
|
Current - Hold (Ih) (Max) |
60 mA
|
|
|
Current - Off State (Max) |
20 µA
|
|
|
Current - Non Rep. Surge 50, 60Hz (Itsm) |
550A, 650A
|
|
|
SCR Type |
Standard Recovery
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Through Hole
|
|
|

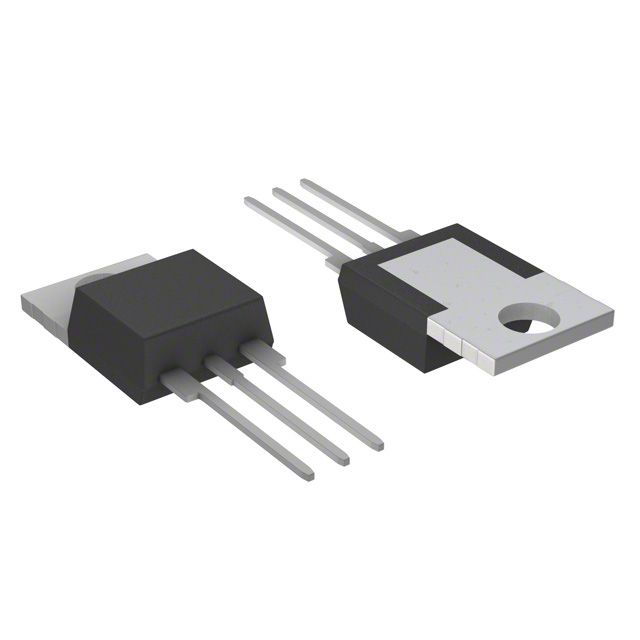

Package / Case |
TO-220-3
|
|
|
Supplier Device Package |
TO-220 Non-Isolated Tab
|
