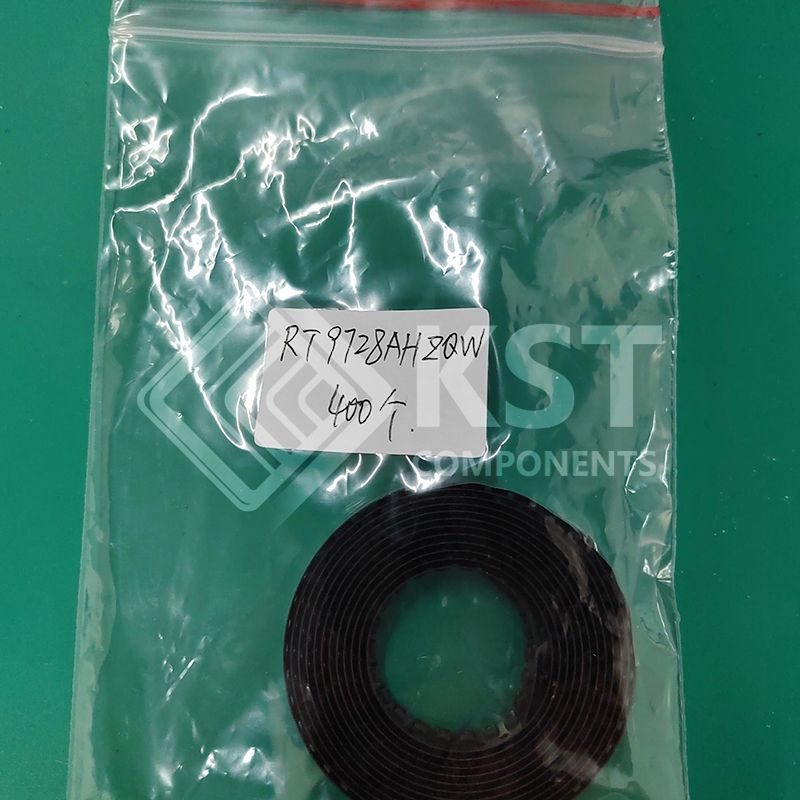

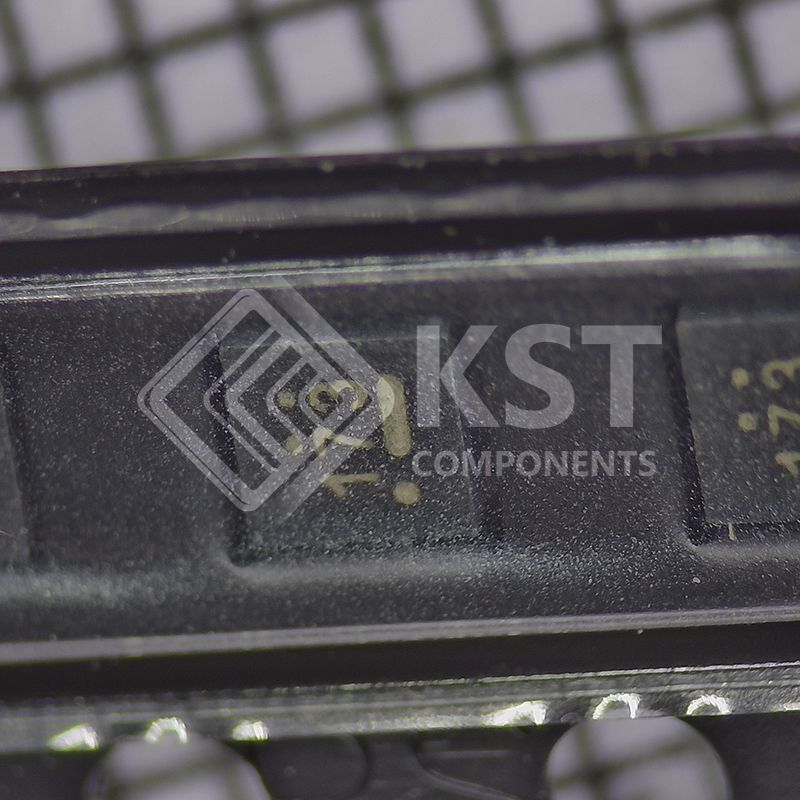

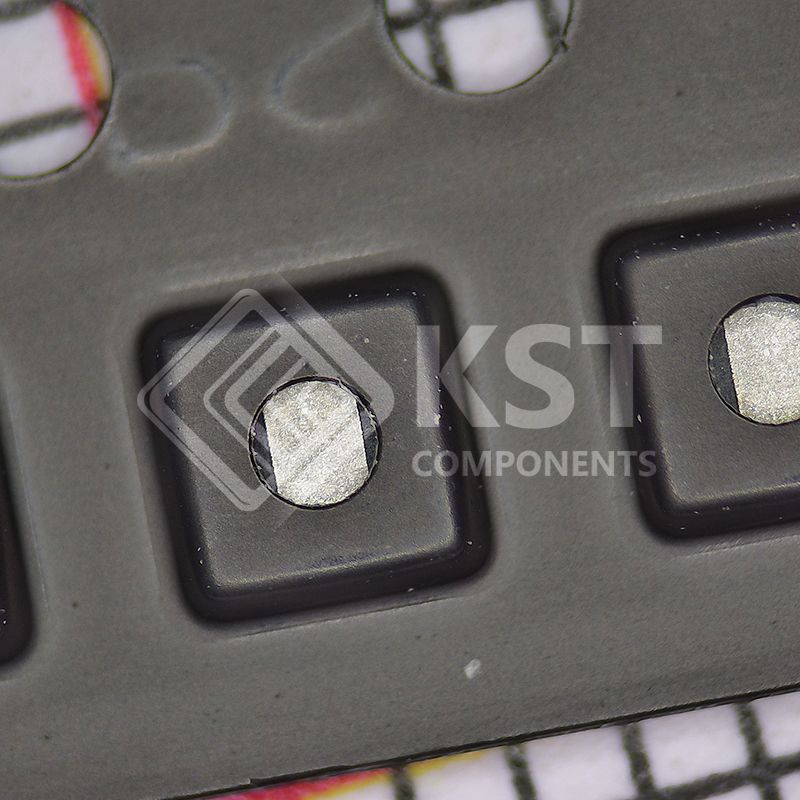

RT9728AHZQW
Part Number:
RT9728AHZQW
Product Classification:
Keylock Switches
Manufacturer:
Amgis
Description:
Power Switch/Driver 1:1 P-Channel 1.3A 6-WDFN (2x2)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Mfr |
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Type |
|
|
|
Number of Outputs |
1
|
|
|
Ratio - Input:Output |
1:1
|
|
|
Output Configuration |
High Side
|
|
|
Output Type |
P-Channel
|
|
|
Interface |
On/Off
|
|
|
Voltage - Load |
2.5V ~ 5.5V
|
|
|
Voltage - Supply (Vcc/Vdd) |
Not Required
|
|
|
Current - Output (Max) |
1.3A
|
|
|
Rds On (Typ) |
120mOhm
|
|
|
Input Type |
Non-Inverting
|
|
|
Features |
Status Flag
|
|
|
Fault Protection |
Current Limiting (Adjustable), Over Temperature, UVLO
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
6-WDFN (2x2)
|
|
|
Package / Case |
|
|
|
Base Product Number |
