RT5797ALGQW
Part Number:
RT5797ALGQW
Product Classification:
Keylock Switches
Manufacturer:
Amgis
Description:
IC REG BUCK ADJ 3A 8WDFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Richtek USA Inc. |
|
|
Series |
-
|
|
|

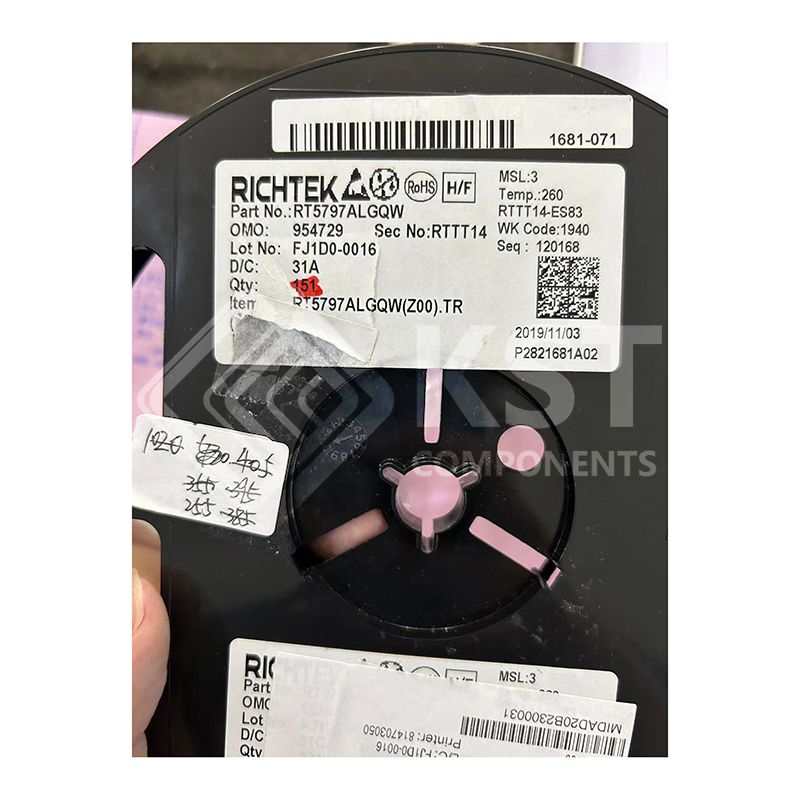

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck |
|
|
Output Type |
Adjustable |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
2.7V
|
|
|
Voltage - Input (Max) |
5.5V
|
|
|
Voltage - Output (Min/Fixed) |
0.6V |
|
|
Voltage - Output (Max) |
3.4V
|
|
|
Current - Output |
3A |
|
|
Frequency - Switching |
1MHz
|
|
|
Synchronous Rectifier |
Yes
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|

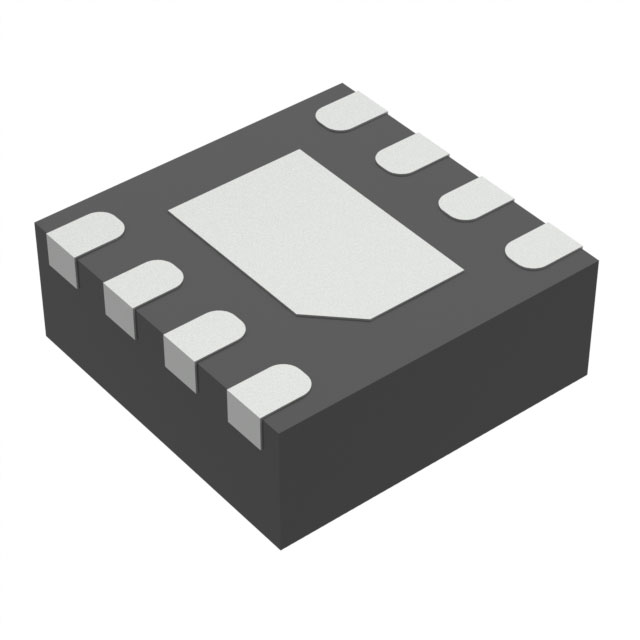

Package / Case |
8-WFDFN Exposed Pad |
|
|
Supplier Device Package |
8-WDFN (2x2)
|
|
|
Base Product Number |
RT5797 |
