RCLAMP3374N
Part Number:
RCLAMP3374N
Product Classification:
Specialty Transformers
Manufacturer:
ACES GROUP
Description:
TVS DIODE 3.3VWM 18VC SLP3020N10
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
TVS
Diodes
|
|
|
Mfr |
Semtech Corporation |
|
|
Series |
RailClamp® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Steering (Rail to Rail)
|
|
|
Unidirectional Channels |
4
|
|
|
Voltage - Reverse Standoff (Typ) |
3.3V (Max)
|
|
|
Voltage - Breakdown (Min) |
3.5V
|
|
|
Voltage - Clamping (Max) @ Ipp |
18V
|
|
|
Current - Peak Pulse (10/1000µs) |
25A (8/20µs)
|
|
|
Power - Peak Pulse |
1000W (1kW)
|
|
|
Power Line Protection |
Yes
|
|
|
Applications |
Ethernet
|
|
|
Capacitance @ Frequency |
3.6pF @ 1MHz
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q100
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

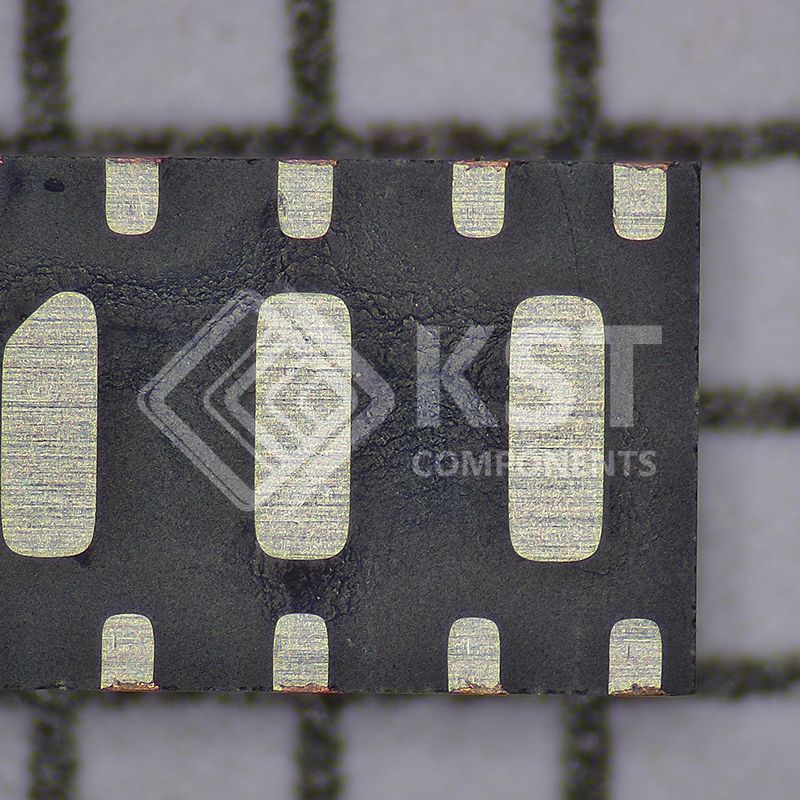

10-UDFN Exposed Pad
|
|
|
Supplier Device Package |
SLP3020N10 |
|
|
Base Product Number |
RCLAMP3374 |
