RB521S30T1G
Part Number:
RB521S30T1G
Product Classification:
Toggle Switches
Manufacturer:
ADDA USA
Description:
DIODE SCHOTTKY 30V 200MA SOD523
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|
Packaging |

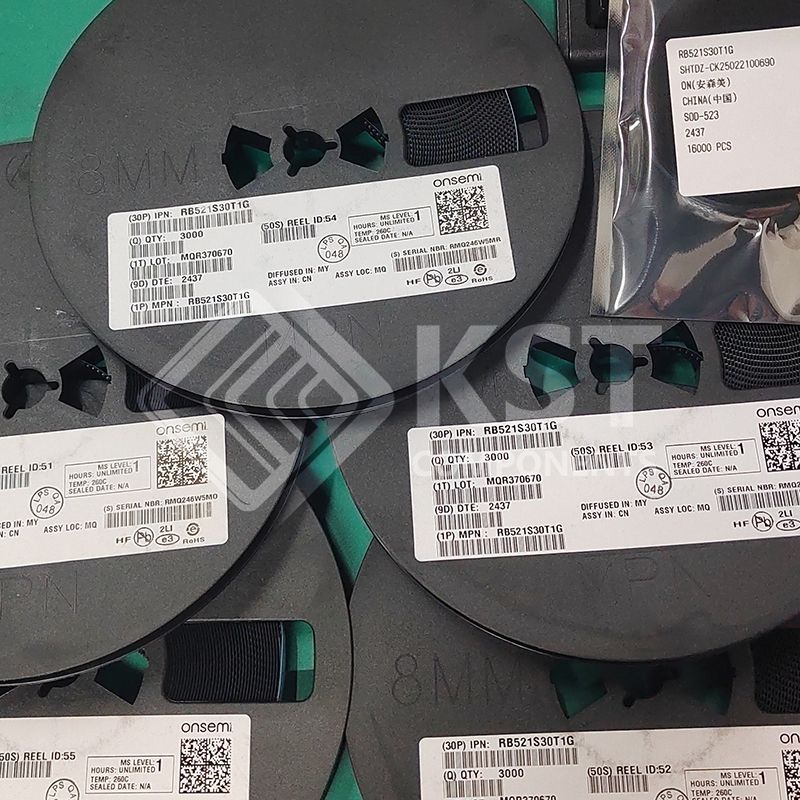

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
Schottky |
|
|
Voltage - DC Reverse (Vr) (Max) |
30 V
|
|
|
Current - Average Rectified (Io) |
200mA
|
|
|
Voltage - Forward (Vf) (Max) @ If |
500 mV @ 200 mA
|
|
|
Speed |
Small Signal =< 200mA (Io), Any Speed
|
|
|
Current - Reverse Leakage @ Vr |
30 µA @ 10 V
|
|
|
Capacitance @ Vr, F |
-
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |

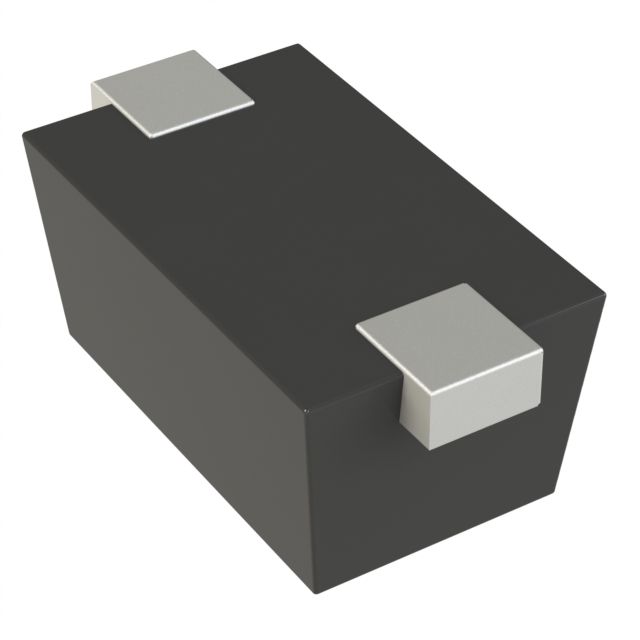

SC-79, SOD-523 |
|
|
Supplier Device Package |
SOD-523
|
|
|
Operating Temperature - Junction |
-55°C ~ 125°C
|
|
|
Base Product Number |
RB521 |
