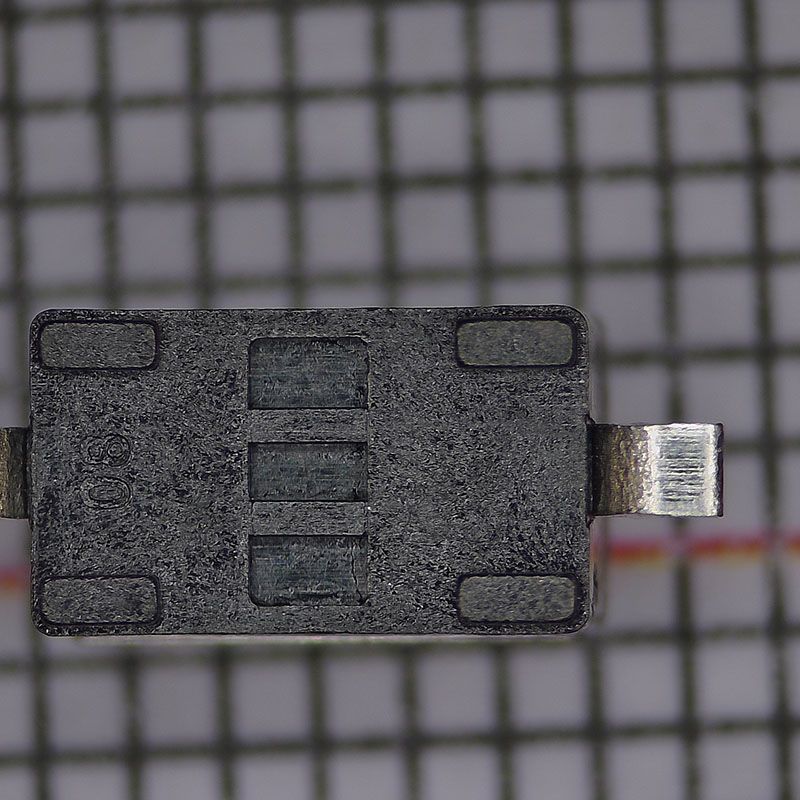

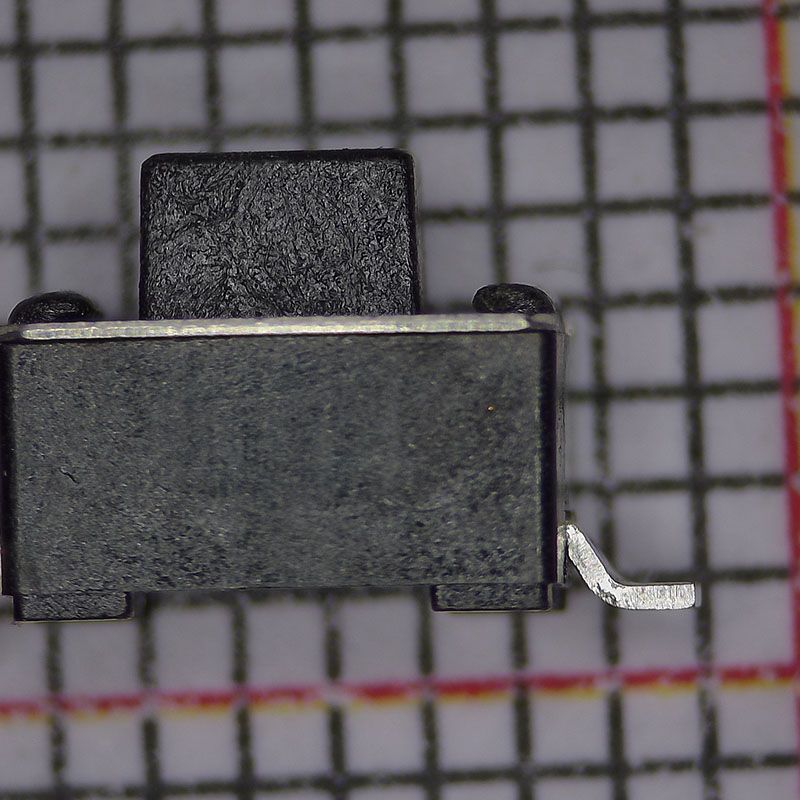

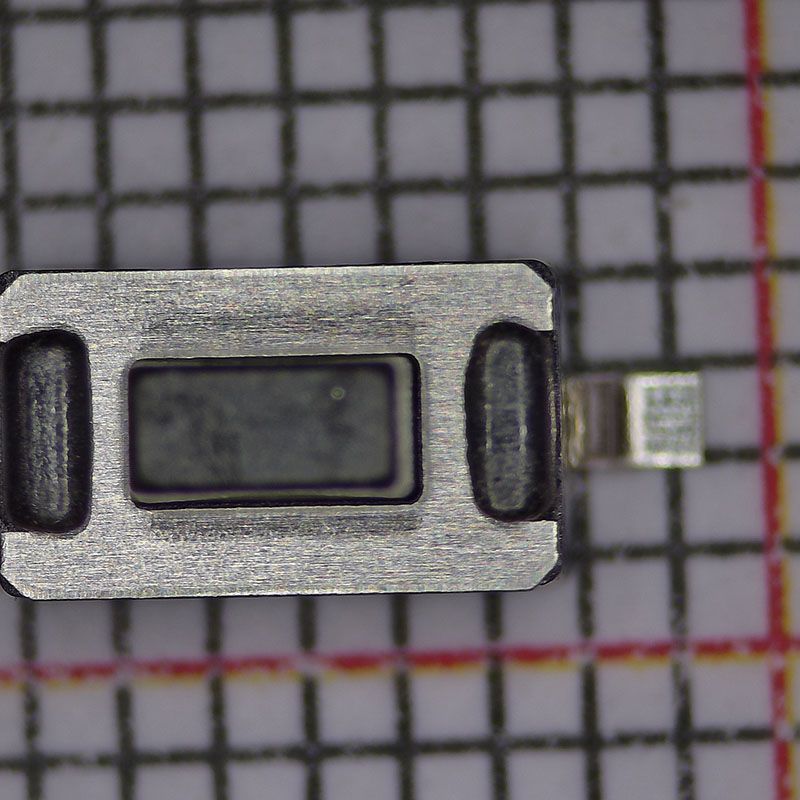

PTS636 SM50 SMTR LFS
Part Number:
PTS636 SM50 SMTR LFS
Product Classification:
Hex, Torx Keys
Manufacturer:
Molex
Description:
SWITCH TACTILE SPST-NO 0.05A 12V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Switches
Tactile Switches
|
|
|
Mfr |
C&K |
|
|
Series |
PTS636 |
|
|

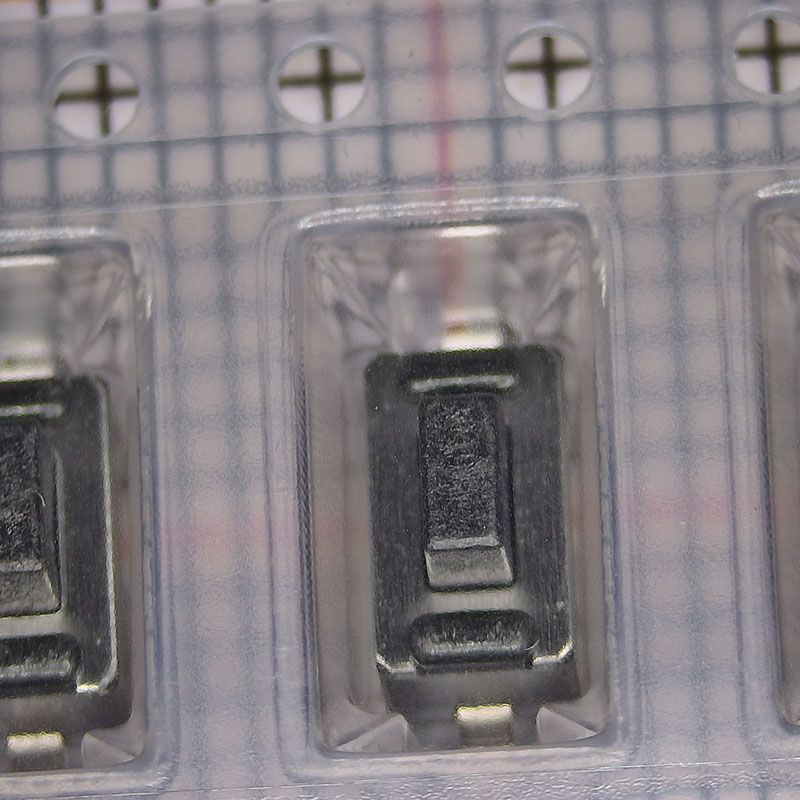

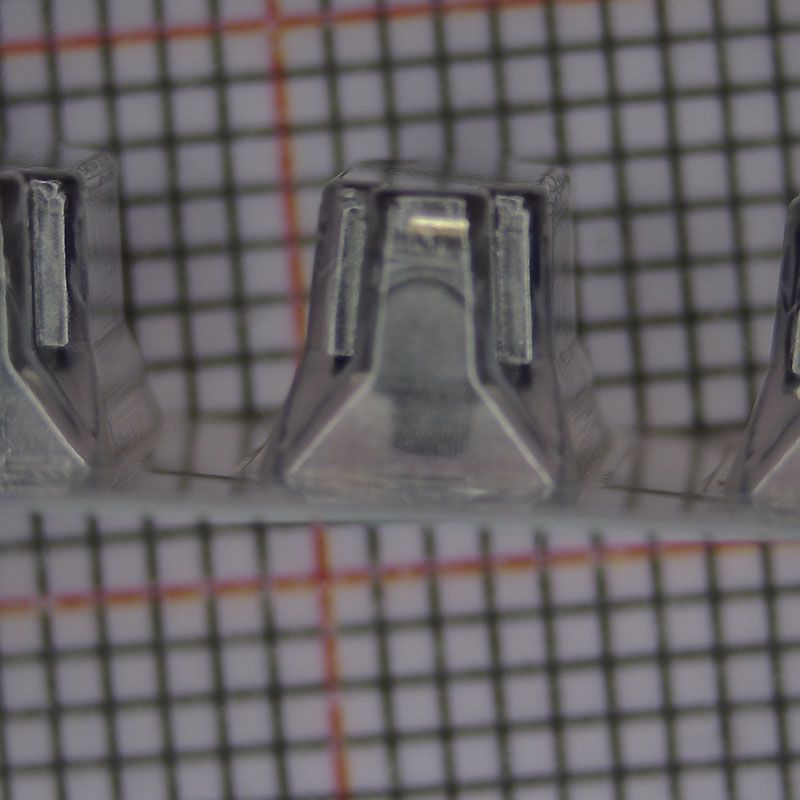

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Circuit |
SPST-NO
|
|
|
Switch Function |
Off-Mom
|
|
|
Contact Rating @ Voltage |
0.05A @ 12VDC
|
|
|
Actuator Type |
Rectangular Button
|
|
|
Mounting Type |
Surface Mount |
|
|
Actuator Height off PCB, Vertical |
5.00mm
|
|
|
Actuator Length, Right Angle |
-
|
|
|
Actuator Orientation |
Top Actuated
|
|
|
Termination Style |
Gull Wing
|
|
|
Outline |
6.00mm x 3.50mm
|
|
|
Illumination |
Non-Illuminated
|
|
|
Illumination Type, Color |
-
|
|
|
Illumination Voltage (Nominal) |
-
|
|
|
Operating Force |
180gf
|
|
|
Ingress Protection |
IP40
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 90°C
|
|
|
Actuator Material |
-
|
|
|
Switch Travel |
0.30mm
|
|
|
Mechanical Life |
50,000 Cycles
|
|
|
Base Product Number |
PTS636 |
