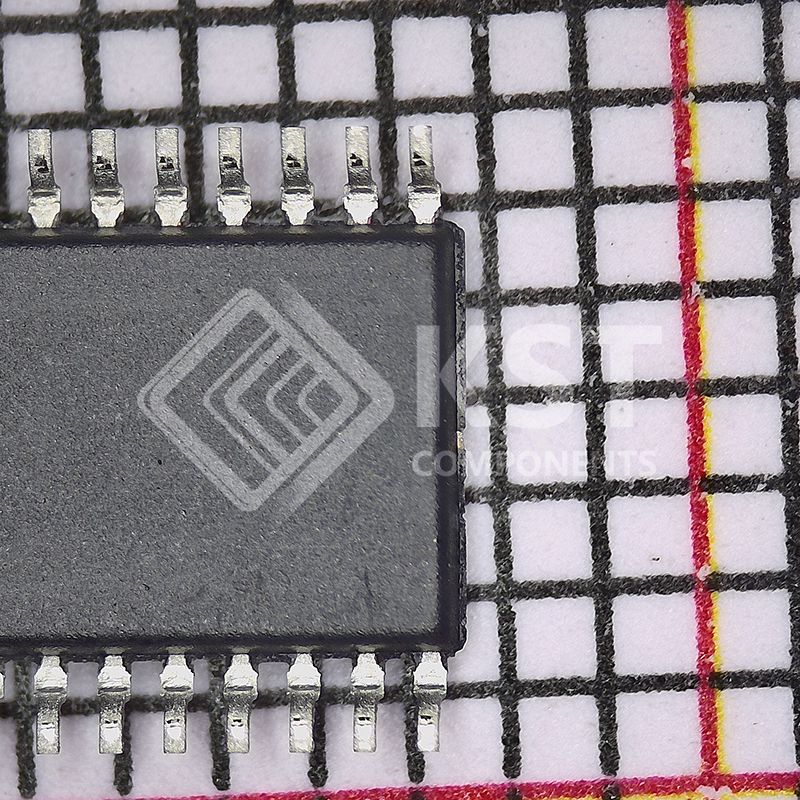

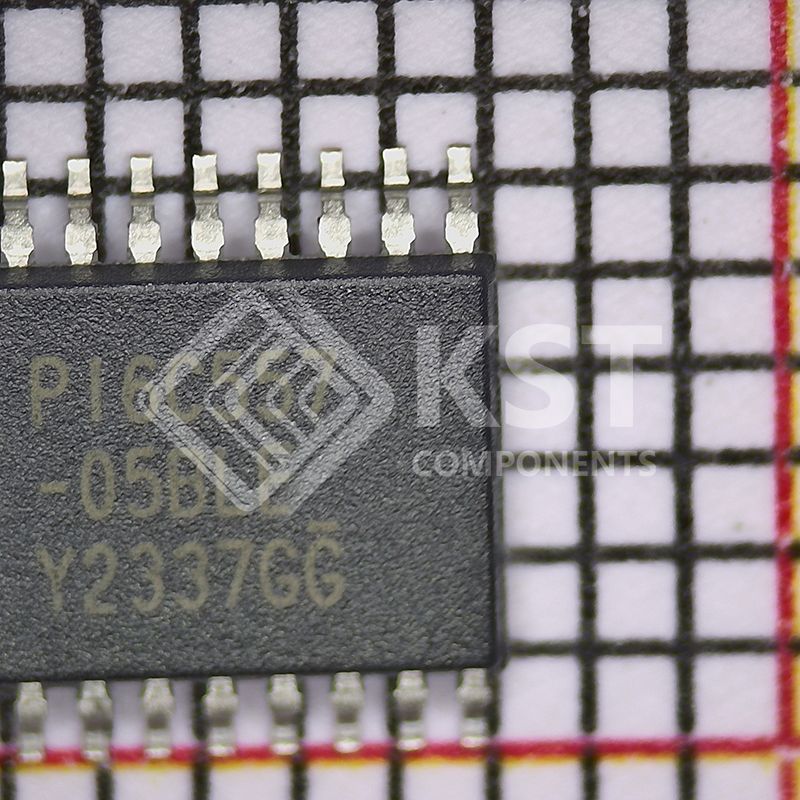

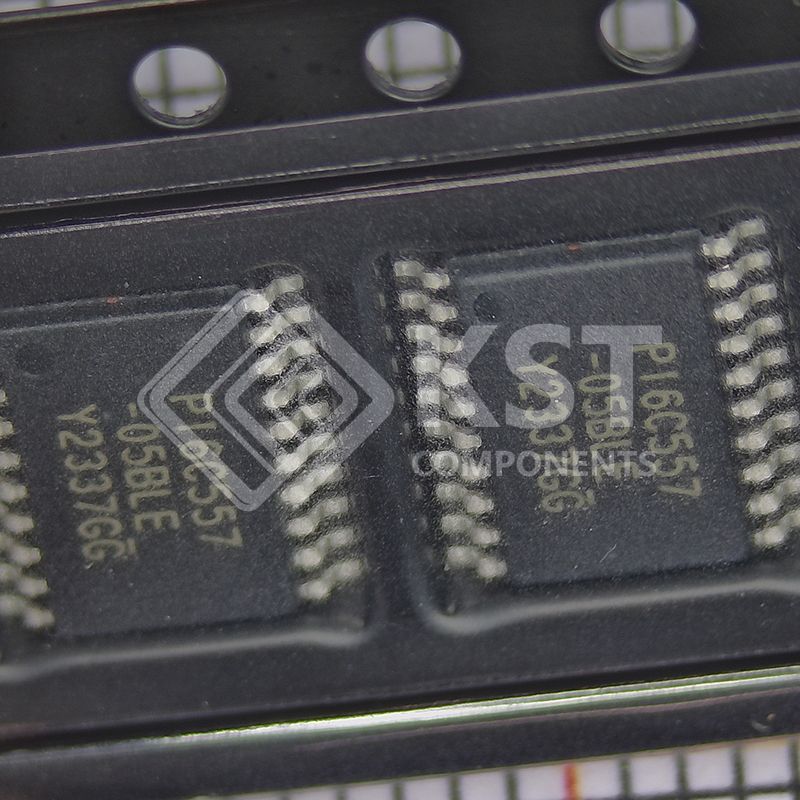

PI6C557-05BLEX

Î PCIe® 3.0 complaint
• PCIe 3.0 Phase jitter: 0.48ps RMS (High Freq. Typ.)
Î LVDS compatible outputs
Î Supply voltage of 3.3V ±5%
Î 25MHz crystal or clock input frequency
Î HCSL outputs, 0.7V Current mode differential pair
Î Jitter 40ps cycle-to-cycle (typ)
Î Spread of -0.5%, -1.0%, -1.5%, and no spread
Î Industrial temperature range
Î Spread Bypass option available
Î Spread and frequency selection via external pins
Î Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Î Halogen and Antimony Free. “Green” Device (Note 3)
Î For automotive applications requiring specific change control
(i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please contact
us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Î Packaging: (Pb-free and Green)

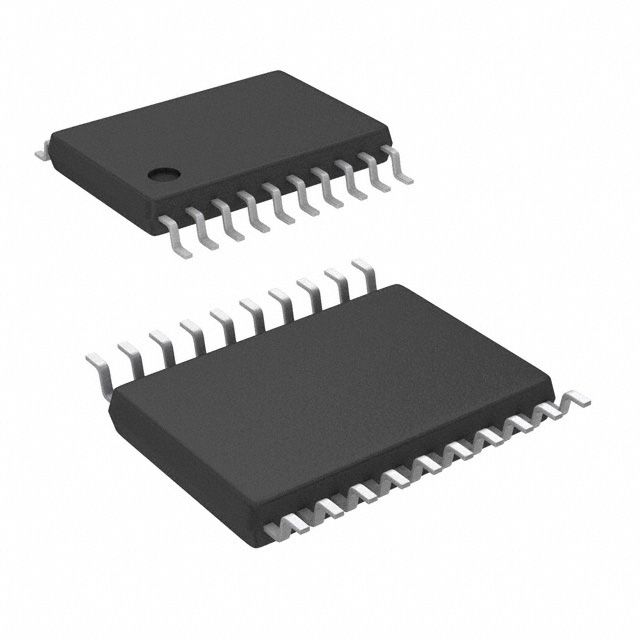

• 20-pin, TSSOP (L)
