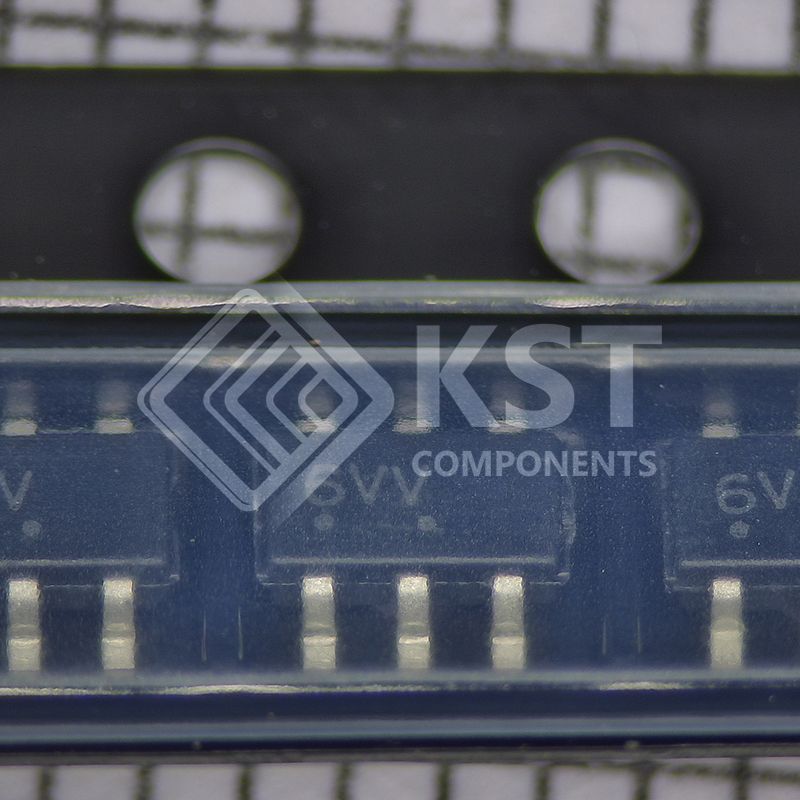

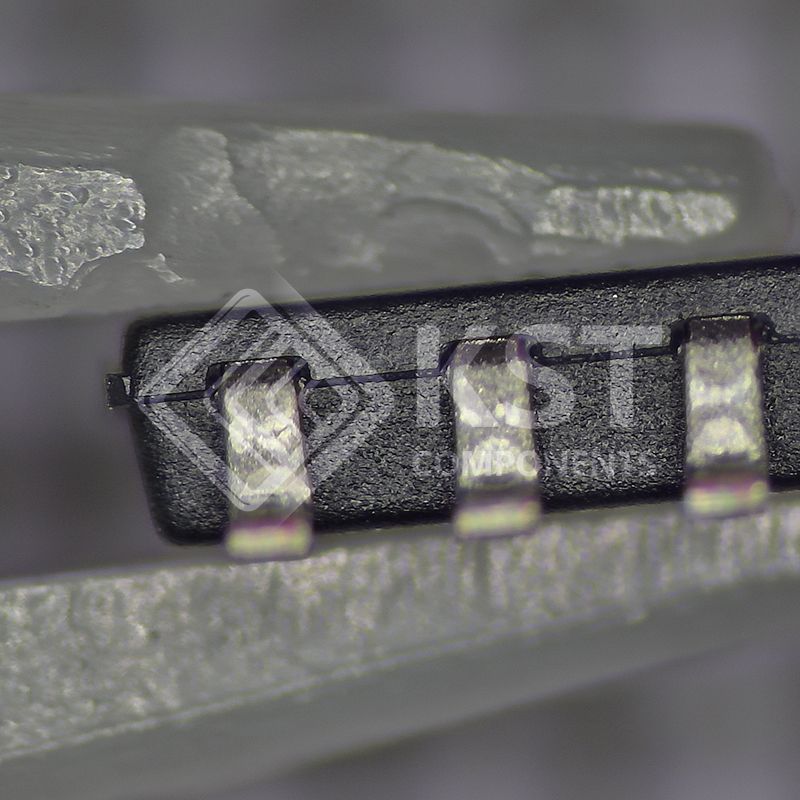

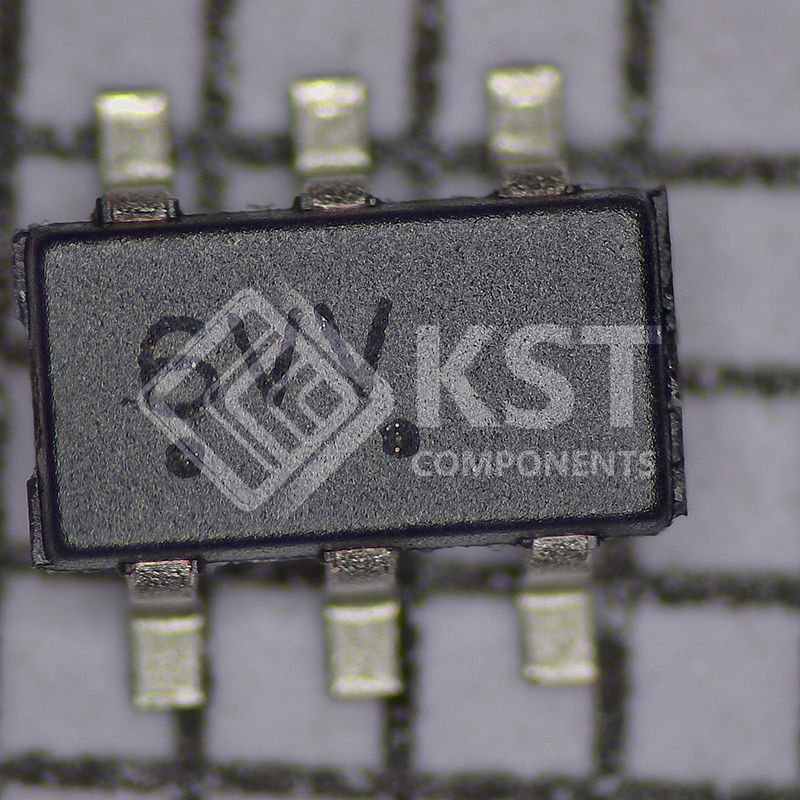

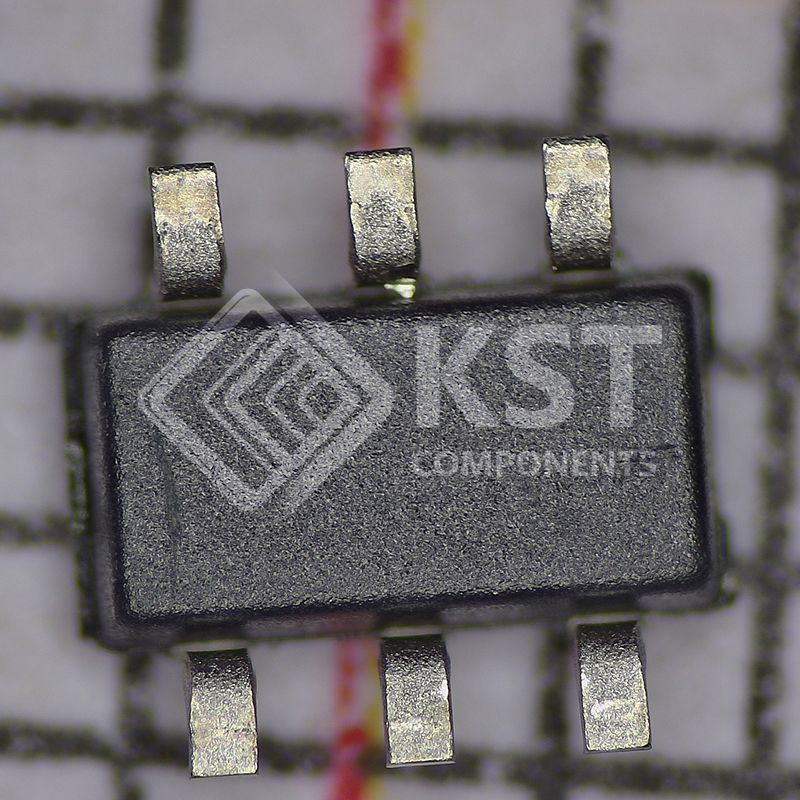

NUF2101MT1G
Part Number:
NUF2101MT1G
Product Classification:
Configurable Switch Illumination Sources
Manufacturer:
ADDA USA
Description:
FILTER RC(PI) 30 OHMS ESD SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Filters
EMI/RFI Filters (LC, RC Networks)
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |

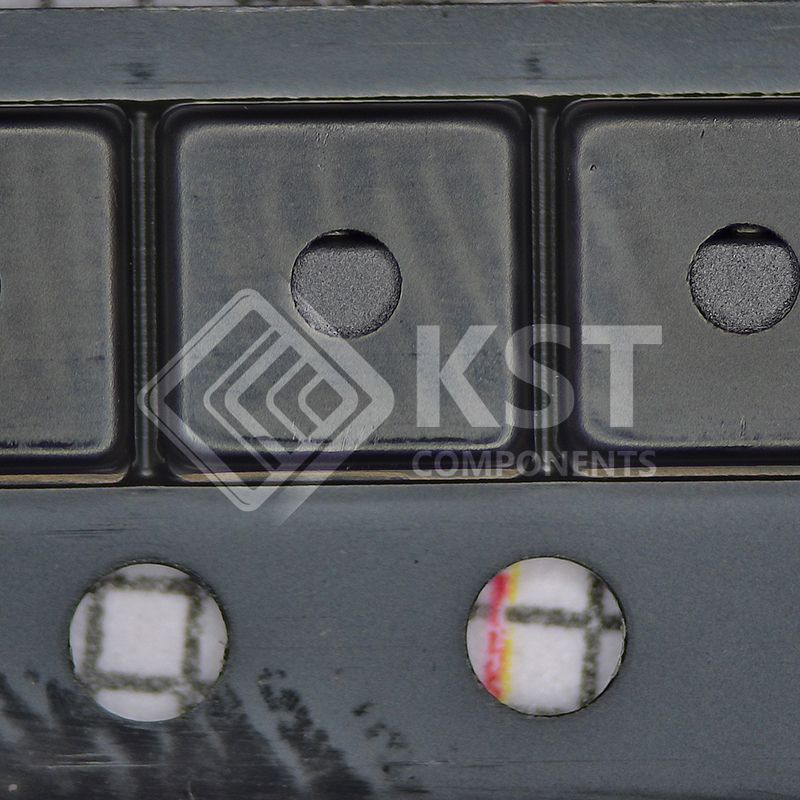

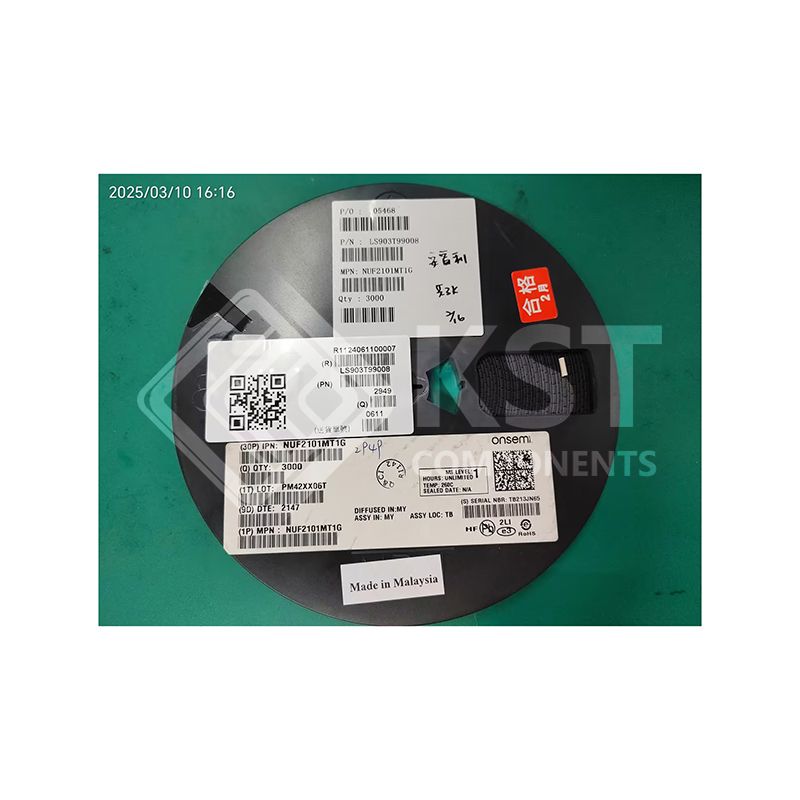

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Low Pass
|
|
|
Filter Order |
2nd
|
|
|
Technology |
RC (Pi)
|
|
|
Number of Channels |
3
|
|
|
Center / Cutoff Frequency |
-
|
|
|
Attenuation Value |
-
|
|
|
Resistance - Channel (Ohms) |
30
|
|
|
Values |
R = 30Ohms, C = 55pF (Total)
|
|
|
ESD Protection |
Yes
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Applications |
USB
|
|
|
Voltage - Rated |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
SC-74, SOT-457
|
|
|
Size / Dimension |
0.118" L x 0.059" W (3.00mm x 1.50mm)
|
|
|
Height |
0.043" (1.09mm)
|
|
|
Base Product Number |
NUF2101 |
