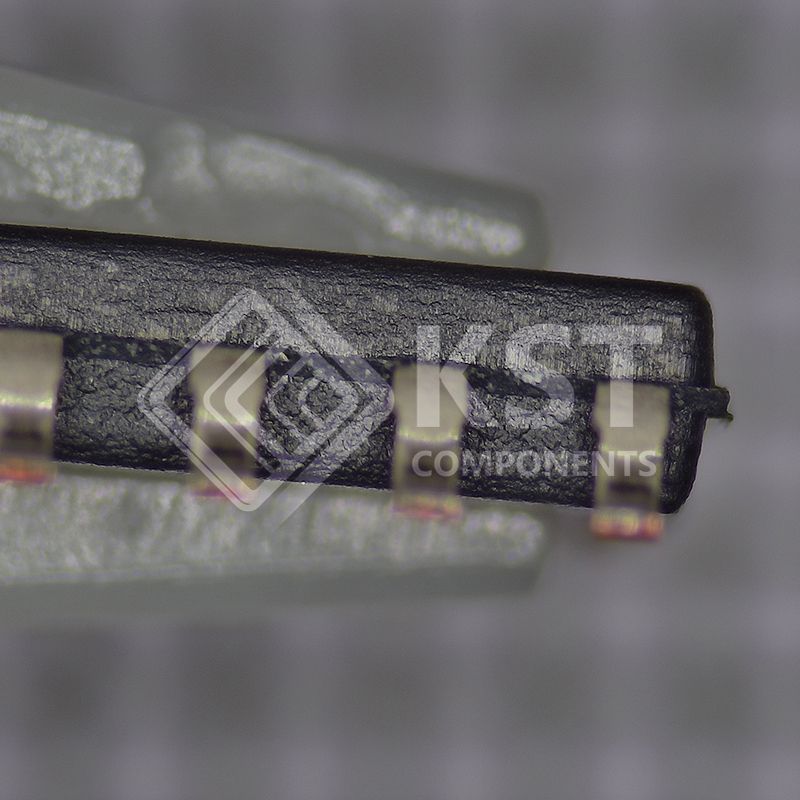

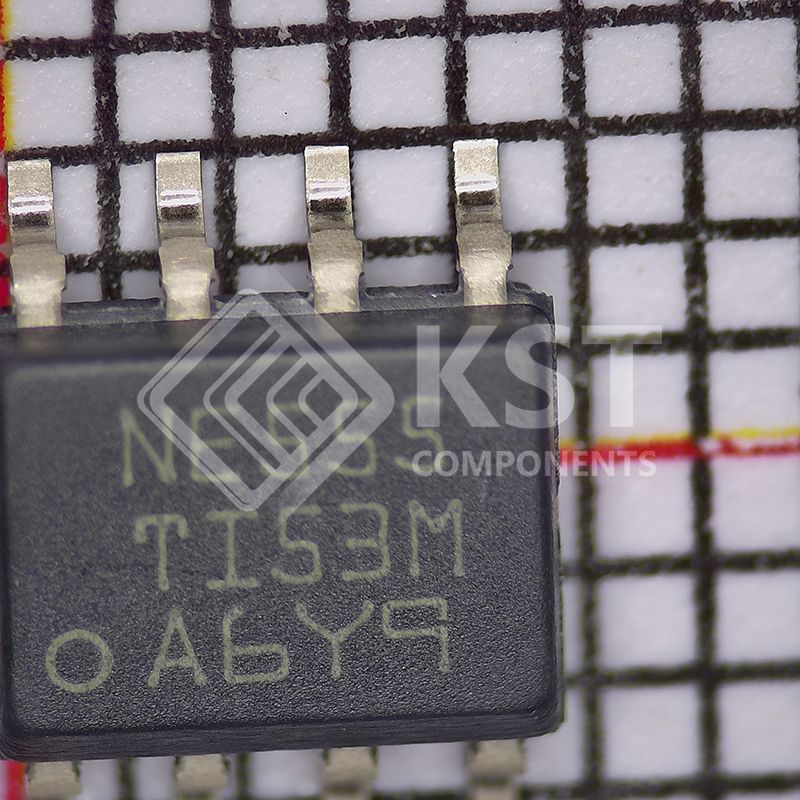

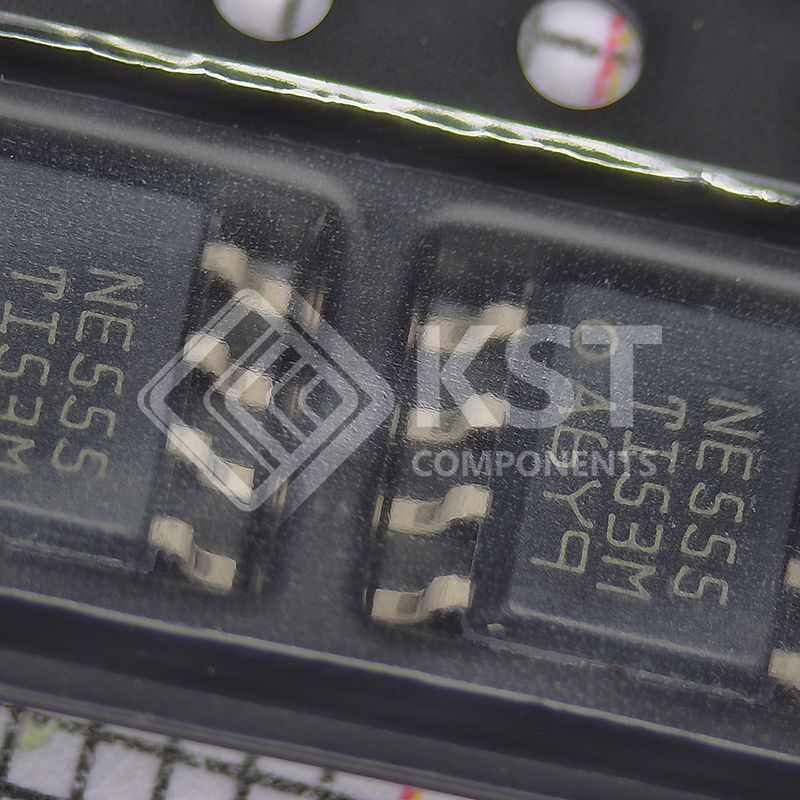

NE555DR
Part Number:
NE555DR
Product Classification:
Alarms, Buzzers, and Sirens
Manufacturer:
3PEAK
Description:
IC OSC SGL TIMER 100KHZ 8-SOIC
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Clock/Timing
Programmable Timers and Oscillators
|
|
|
Manufacturer |
Texas Instruments
|
|
|
Series |
-
|
|
|
Packaging |

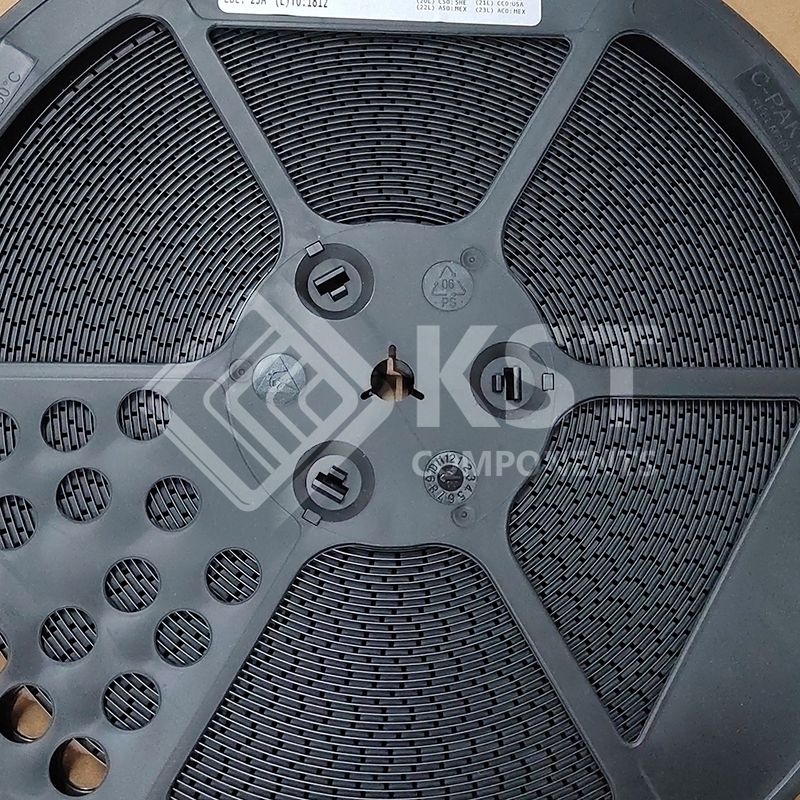

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
555 Type, Timer/Oscillator (Single)
|
|
|
Count |
-
|
|
|
Frequency |
100kHz
|
|
|
Voltage - Supply |
4.5V ~ 16V
|
|
|
Current - Supply |
10 mA
|
|
|
Operating Temperature |
0°C ~ 70°C
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SOIC
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
NE555 |
