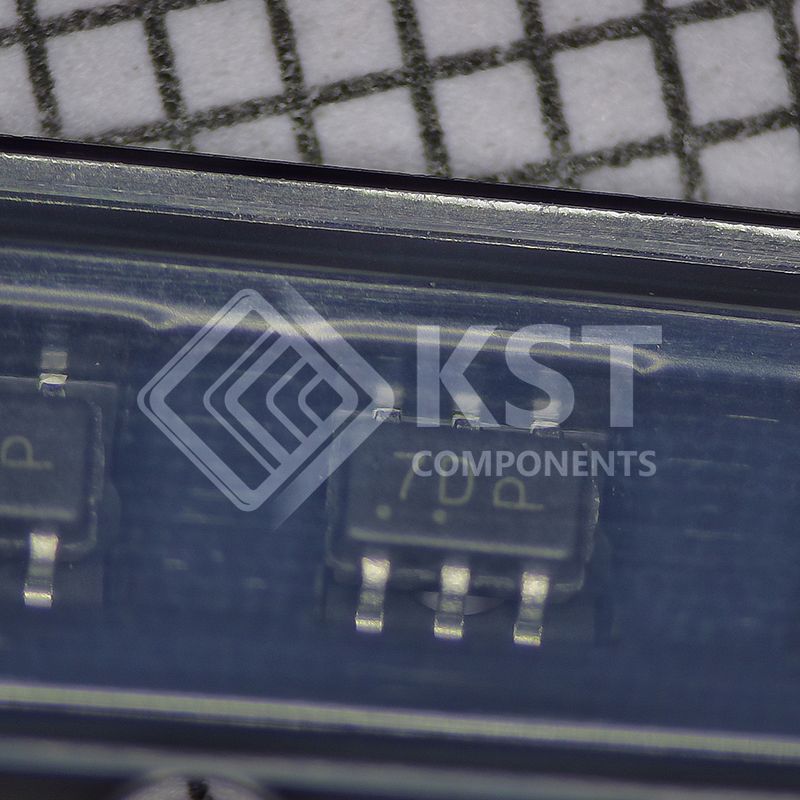

MUN5214DW1T1G
Part Number:
MUN5214DW1T1G
Product Classification:
Specialty Transformers
Manufacturer:
ADDA USA
Description:
TRANS 2NPN PREBIAS 0.25W SOT363
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Discrete Semiconductor Products
Transistors
Bipolar (BJT)
Bipolar Transistor Arrays, Pre-Biased
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |

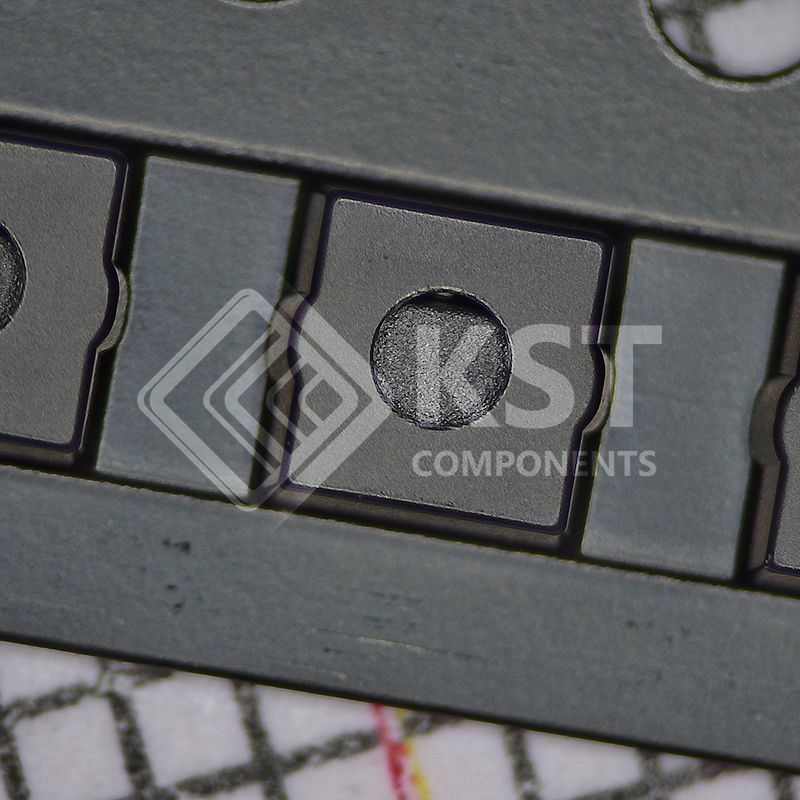

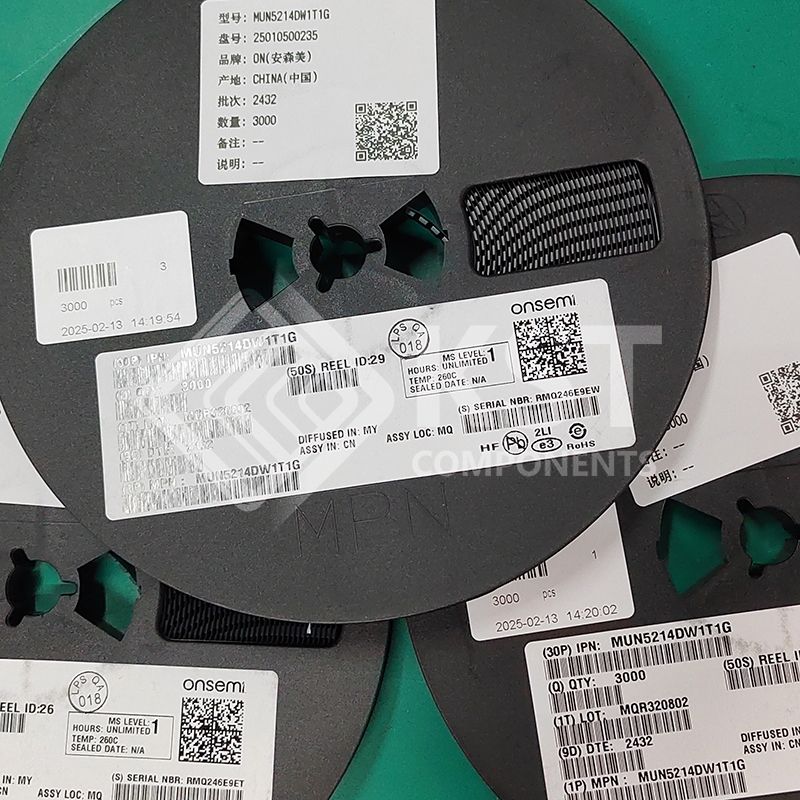

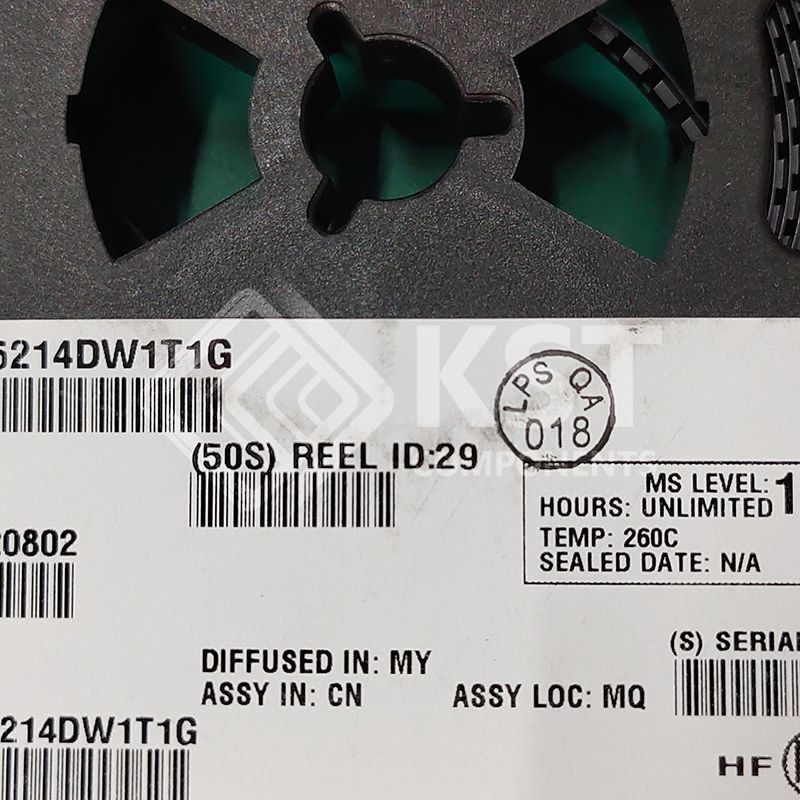

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Transistor Type |
2 NPN - Pre-Biased (Dual)
|
|
|
Current - Collector (Ic) (Max) |
100mA
|
|
|
Voltage - Collector Emitter Breakdown (Max) |
50V
|
|
|
Resistor - Base (R1) |
10kOhms
|
|
|
Resistor - Emitter Base (R2) |
47kOhms
|
|
|
DC Current Gain (hFE) (Min) @ Ic, Vce |
80 @ 5mA, 10V
|
|
|
Vce Saturation (Max) @ Ib, Ic |
250mV @ 300µA, 10mA
|
|
|
Current - Collector Cutoff (Max) |
500nA
|
|
|
Frequency - Transition |
-
|
|
|
Power - Max |
250mW
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-TSSOP, SC-88, SOT-363
|
|
|
Supplier Device Package |
SC-88/SC70-6/SOT-363
|
|
|
Base Product Number |
MUN5214 |
