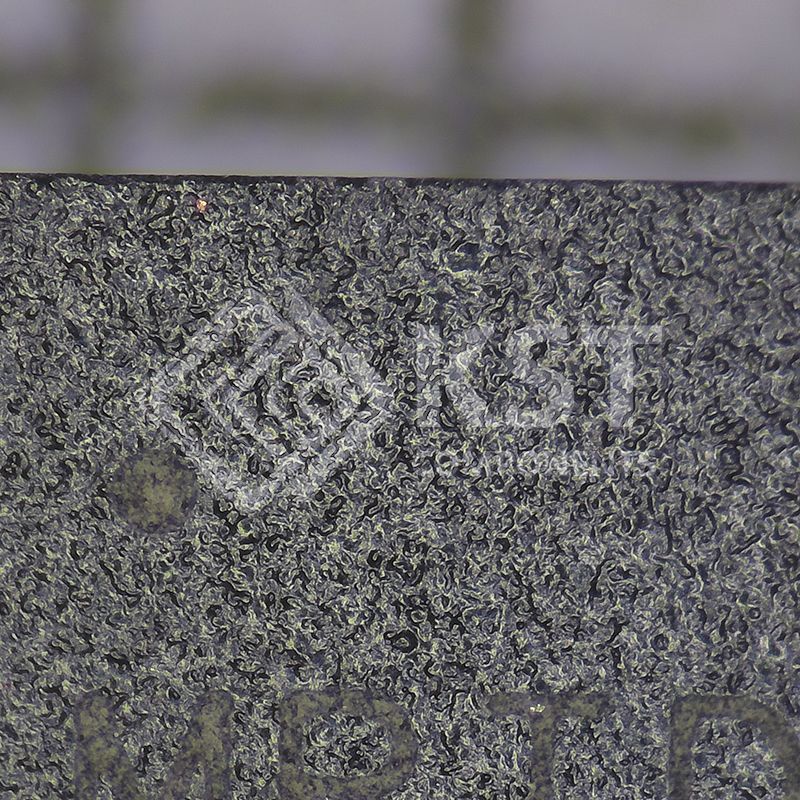

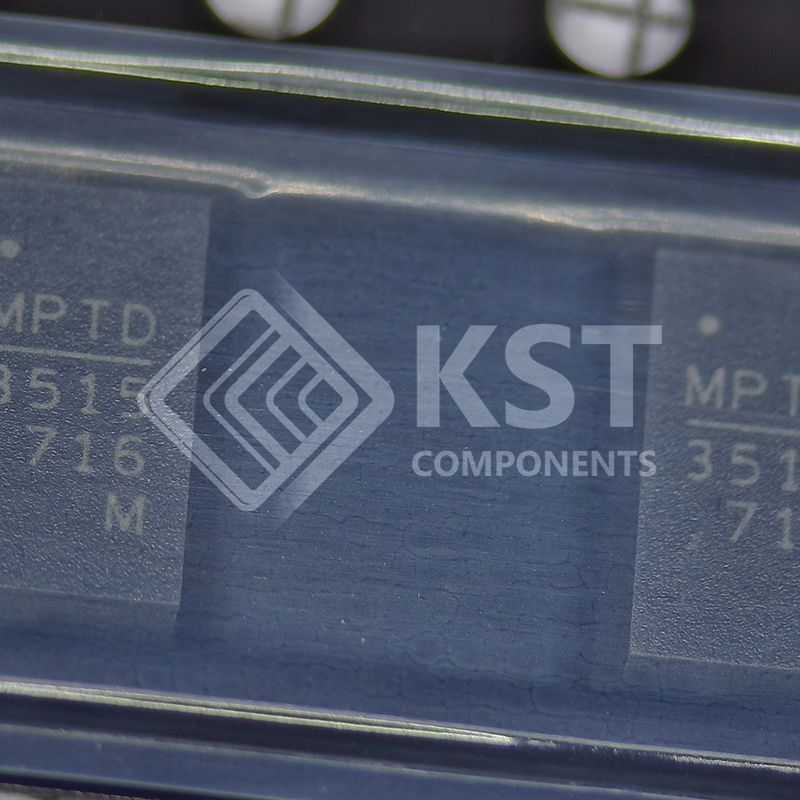

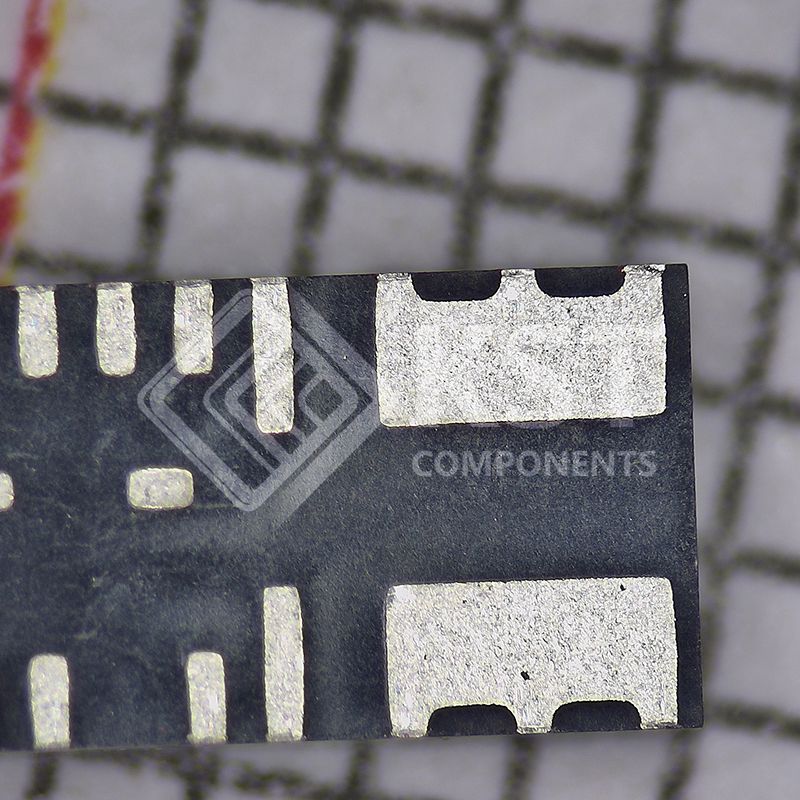

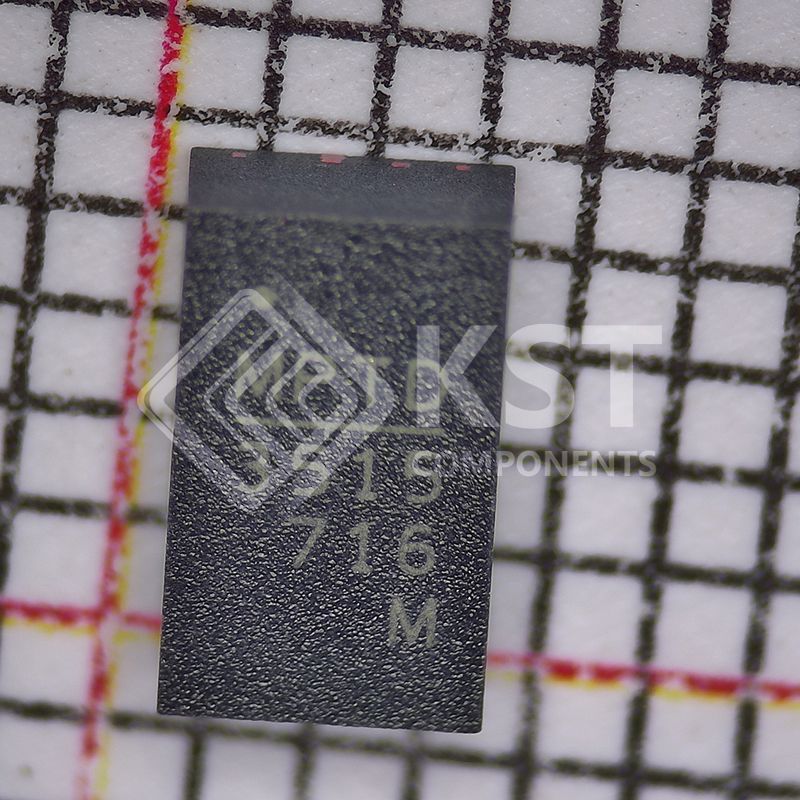

MPM3515GQV-Z
Part Number:
MPM3515GQV-Z
Product Classification:
Programmable Display Switches
Manufacturer:
Allegro MicroSystems
Description:
DC DC CONVERTER 0.8-30V
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Mfr |
Monolithic Power Systems Inc. |
|
|
Series |
-
|
|
|
Packaging |

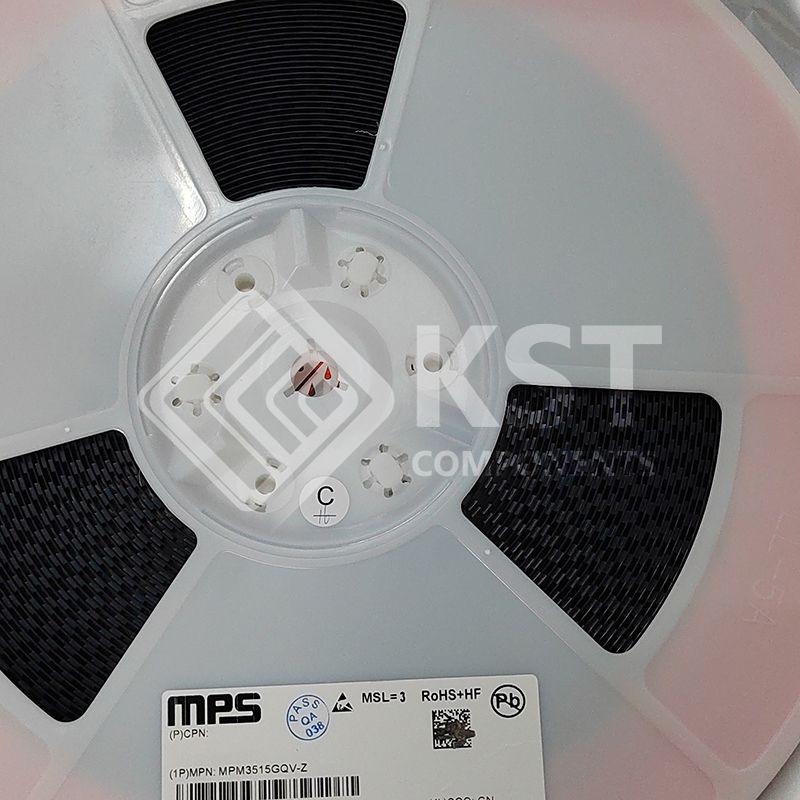

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Non-Isolated PoL Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
4V
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output 1 |
0.8 ~ 30V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
1.5A
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
OCP, OTP, UVLO
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Efficiency |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
17-PowerLQFN Module
|
|
|
Size / Dimension |
0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
|
|
|
Supplier Device Package |
17-QFN (3x5)
|
|
|
Base Product Number |
MPM3515 |
