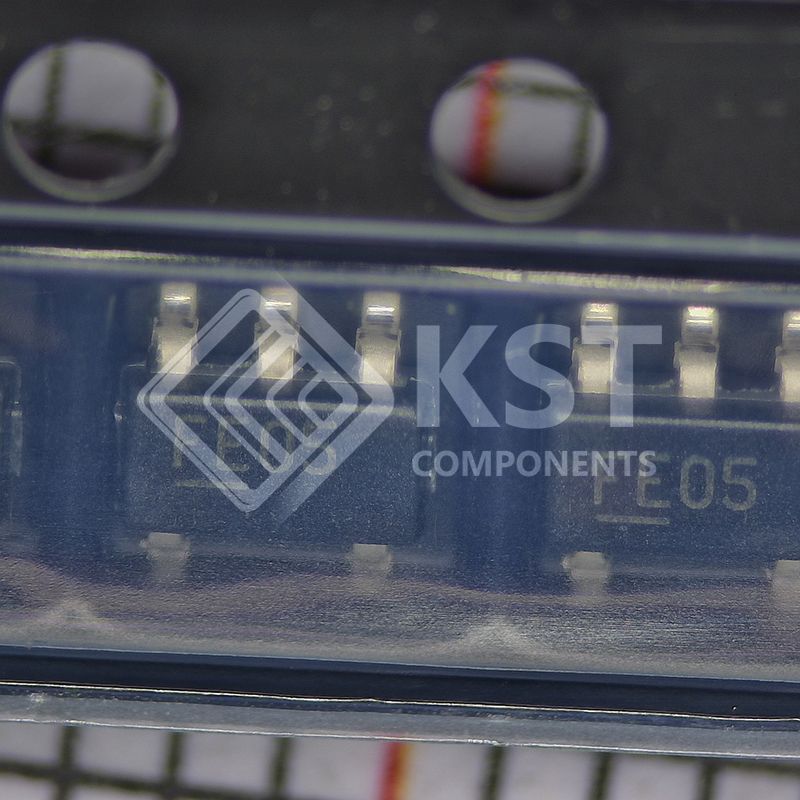

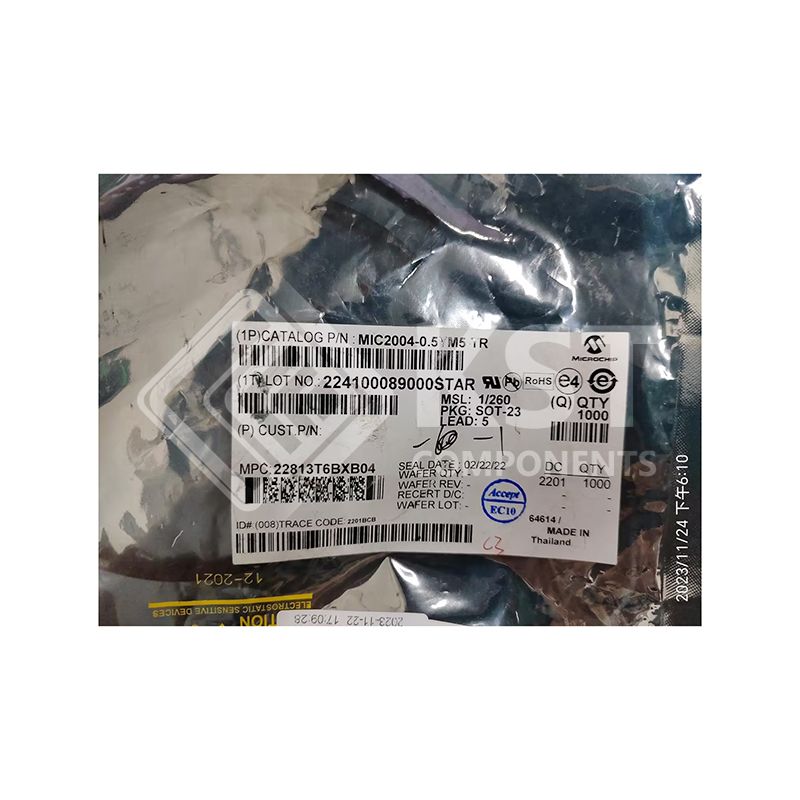

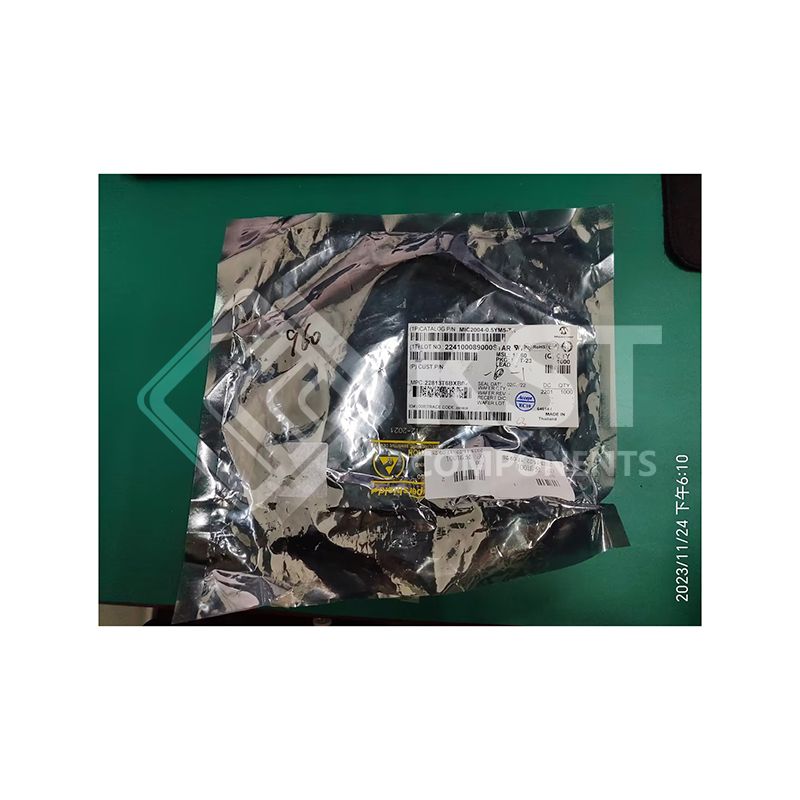

MIC2004-0.5YM5-TR
Part Number:
MIC2004-0.5YM5-TR
Product Classification:
Keylock Switches
Manufacturer:
3RLab
Description:

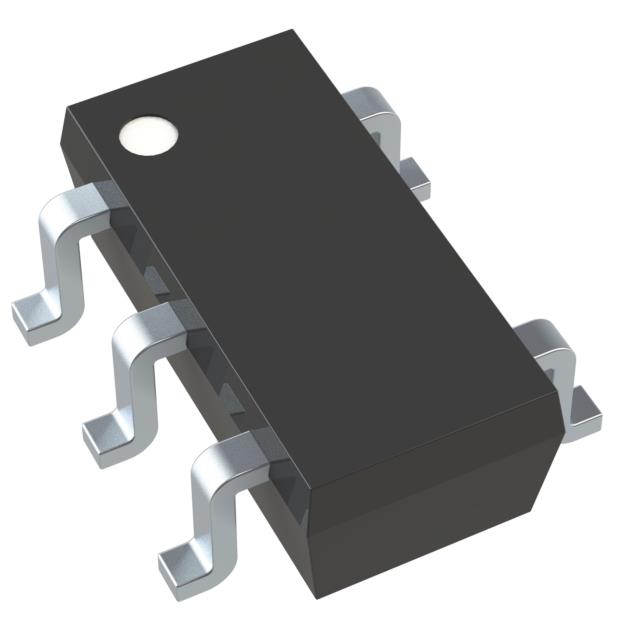

Power Switch/Driver 1:1 P-Channel 500mA SOT-23-5
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
- MIC20X3 - MIC20X9
- 170mO typical on-resistance @ 5V
- Enable active high or active low
- 2.5V-5.5V operating range
- Pre-set current limit values of 0.5A, 0.8A, and 1.2A*
- Adjustable current limit 0.2A to 2.0A* (MIC20X7-MIC20X9)
- Adjustable current limit 0.1A to 0.9A* (MIC20X9A)
- Undervoltage lock-out (UVLO)
- Variable UVLO allows adjustable UVLO thresholds*
- Automatic load discharge for capacitive loads*
- Soft-start prevents large current inrush
- Adjustable slew rate allows custom slew rates*
- Automatic-on output after fault
- Thermal protection
- UL recognized
| Driver Type | USB Power Dist |
| Type | Single |
| Vin Min (V) | 2.5 |
| Vin Max (V) | 5.5 |
| Max SW Current (A) | 0 |
| Current Limit Fixed (Min) | 500mA, 800mA, 1.2A |
| Current Limited | Yes |
| RDS ON @5V (mO) | 70 |
| Enable Logic | Active High |
| VEN (V) | 0 |
| Oja (C/W) | 230, 90 |
| UVLO | Yes |
| Thermal Shutdown | Yes |
| Flag Transient Filter | Yes |
| UL Approved | Yes |
| Switch Element | P-Ch |
