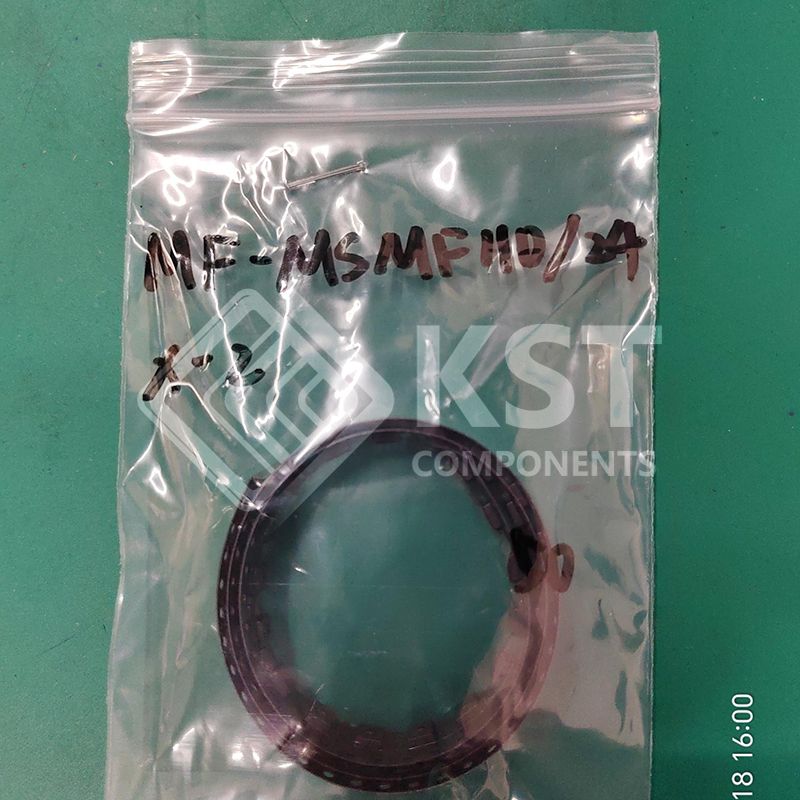

MF-MSMF110 24X-2
Part Number:
MF-MSMF110 24X-2
Product Classification:
Fan Accessories
Manufacturer:
Almit (ANA TRADING)
Description:
PTC RESET FUSE 24V 1.1A 1812
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Circuit Protection
PTC Resettable Fuses
|
|
|
Manufacturer |
Bourns Inc.
|
|
|
Series |
Multifuse®, MF-MSMF |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Polymeric
|
|
|
Voltage - Max |
24V
|
|
|
Current - Hold (Ih) (Max) |
1.1 A
|
|
|
Current - Trip (It) |
2.2 A
|
|
|
Current - Max |
20 A
|
|
|
Time to Trip |
500 ms
|
|
|
Resistance - Initial (Ri) (Min) |
60 mOhms
|
|
|
Resistance - Post Trip (R1) (Max) |
180 mOhms
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Grade |
Automotive
|
|
|
Qualification |
AEC-Q200
|
|
|
Ratings |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1812 (4532 Metric), Concave
|
|
|
Size / Dimension |
0.181" L x 0.128" W (4.60mm x 3.24mm)
|
|
|
Height - Seated (Max) |
-
|
|
|
Thickness (Max) |
0.033" (0.85mm)
|
|
|
Lead Spacing |
-
|
|
|
Approval Agency |
cURus, TUV
|
|
|
Base Product Number |
MF-MSMF |
