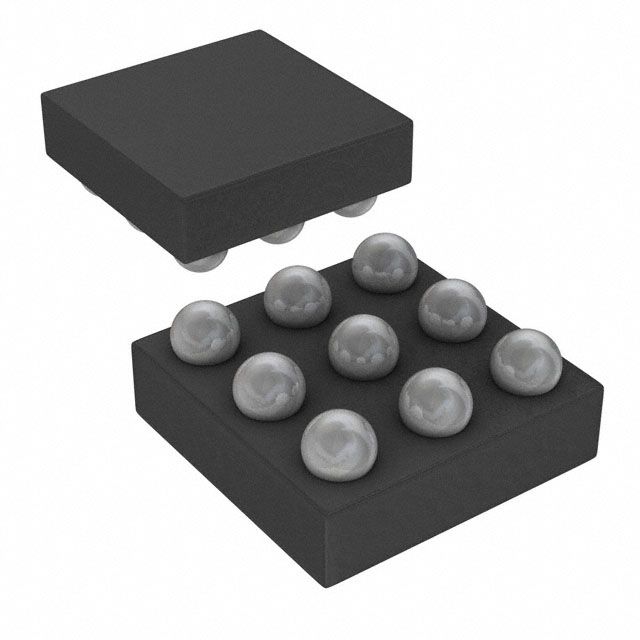

MAX14689EWL＋T
Part Number:
MAX14689EWL＋T
Product Classification:
Bipolar RF Transistors
Manufacturer:
Aeonsemi Inc.
Description:
IC SWITCH DPDT X 1 450MOHM 9WLP
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Circuit |
DPDT
|
|
|
Multiplexer/Demultiplexer Circuit |
4:2
|
|
|
Number of Circuits |
1
|
|
|
On-State Resistance (Max) |
450mOhm
|
|
|
Channel-to-Channel Matching (ΔRon) |
5mOhm
|
|
|
Voltage - Supply, Single (V+) |
1.6V ~ 5.5V
|
|
|
Voltage - Supply, Dual (V±) |
-
|
|
|
Switch Time (Ton, Toff) (Max) |
200µs, 30µs
|
|
|
-3db Bandwidth |
110MHz
|
|
|
Charge Injection |
-
|
|
|
Channel Capacitance (CS(off), CD(off)) |
25pF
|
|
|
Current - Leakage (IS(off)) (Max) |
100nA
|
|
|
Crosstalk |
-100dB @ 100kHz
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
9-WFBGA, WLBGA
|
|
|
Supplier Device Package |
9-WLP (1.26x1.26)
|
|
|
Base Product Number |
MAX14689 |
