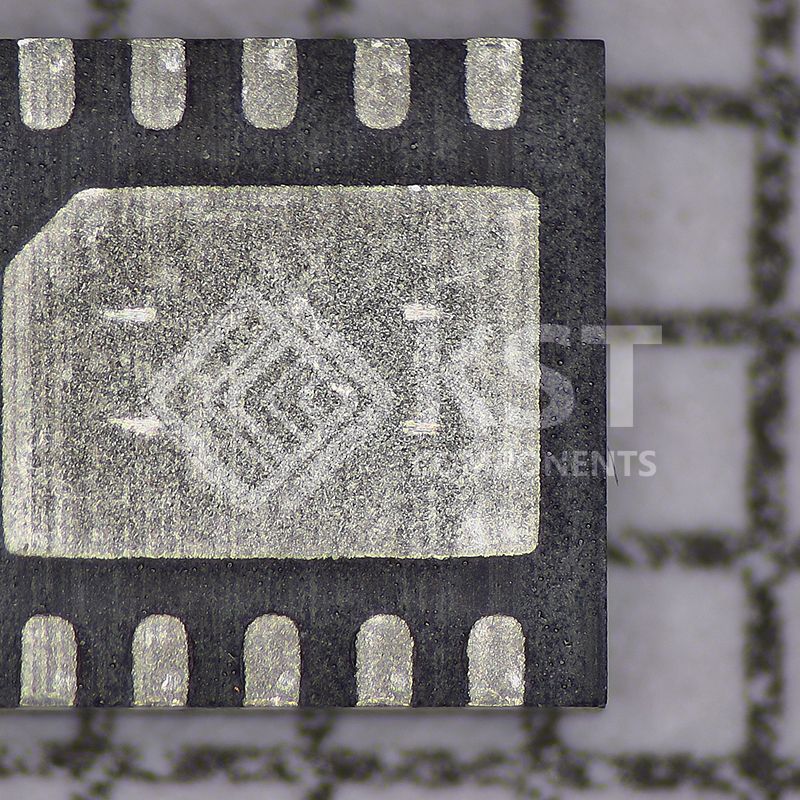

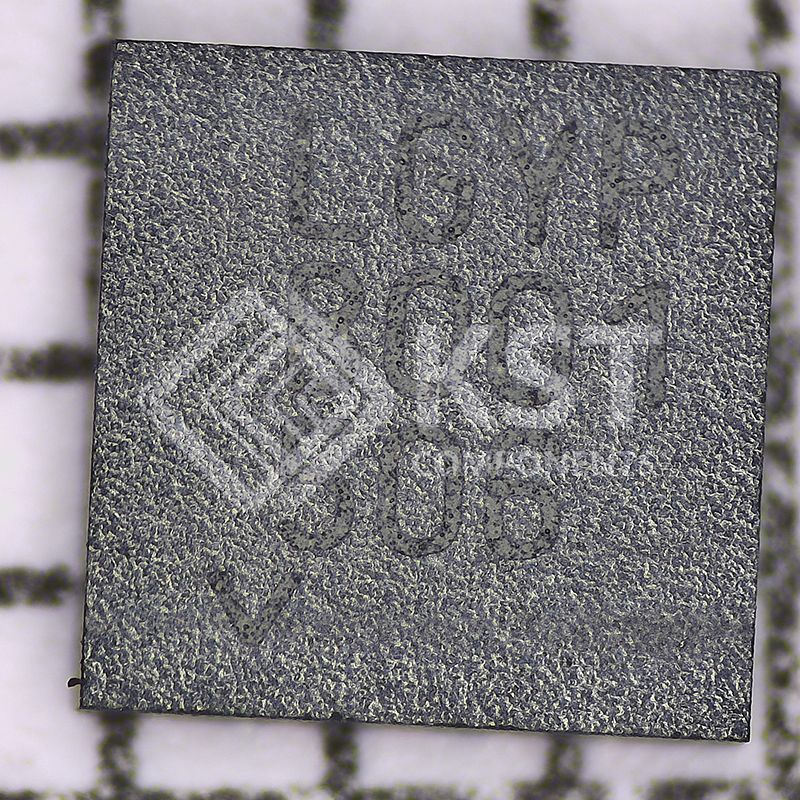

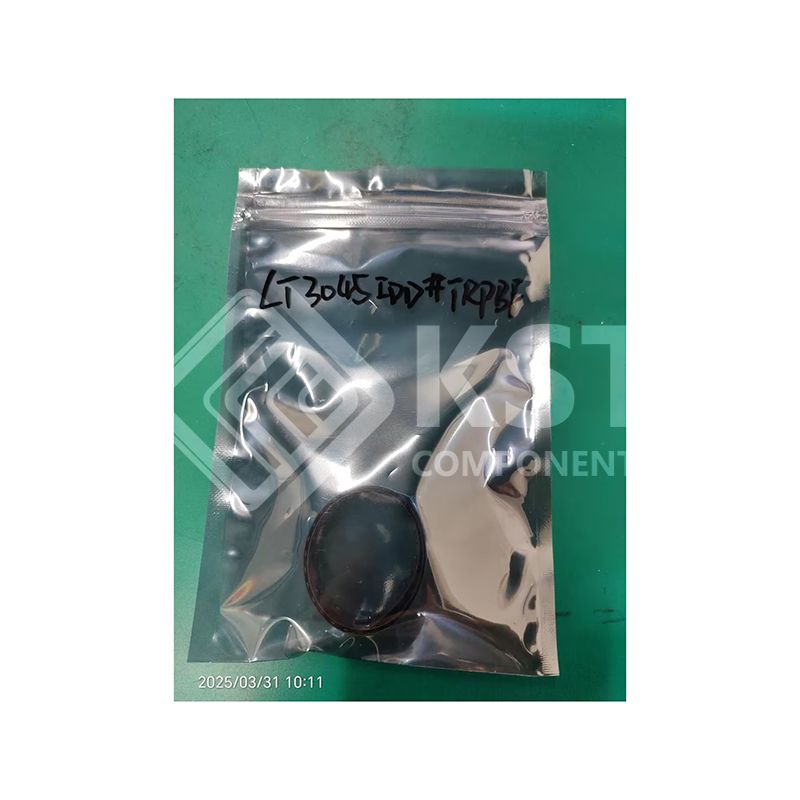

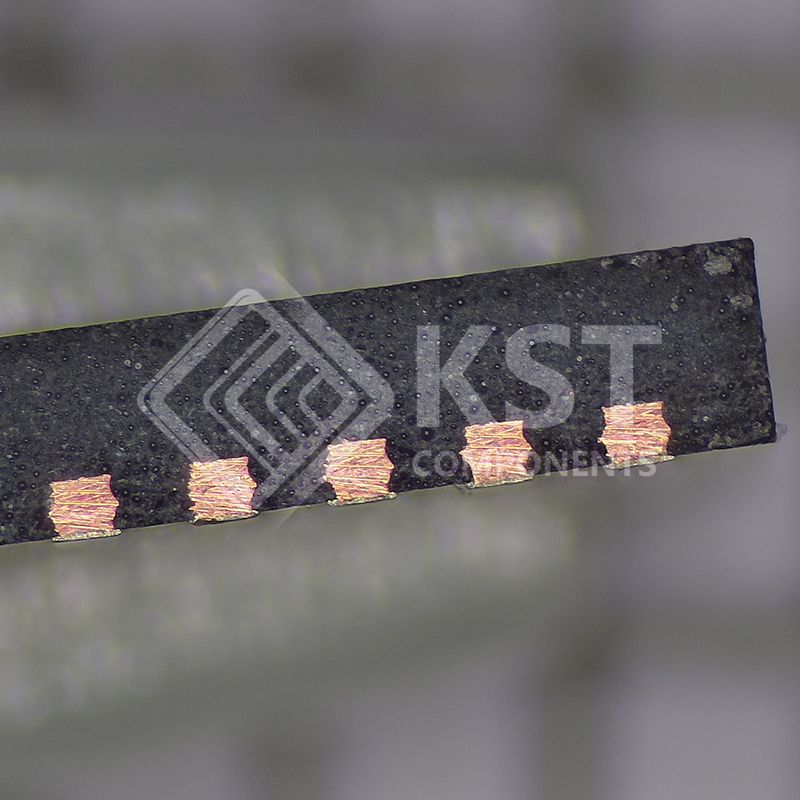

LT3045IDD#TRPBF
Part Number:
LT3045IDD#TRPBF
Product Classification:
Keylock Switches
Manufacturer:
AEM Central Semiconductor
Description:
IC REG LIN POS ADJ 500MA 10DFN
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|
Packaging |

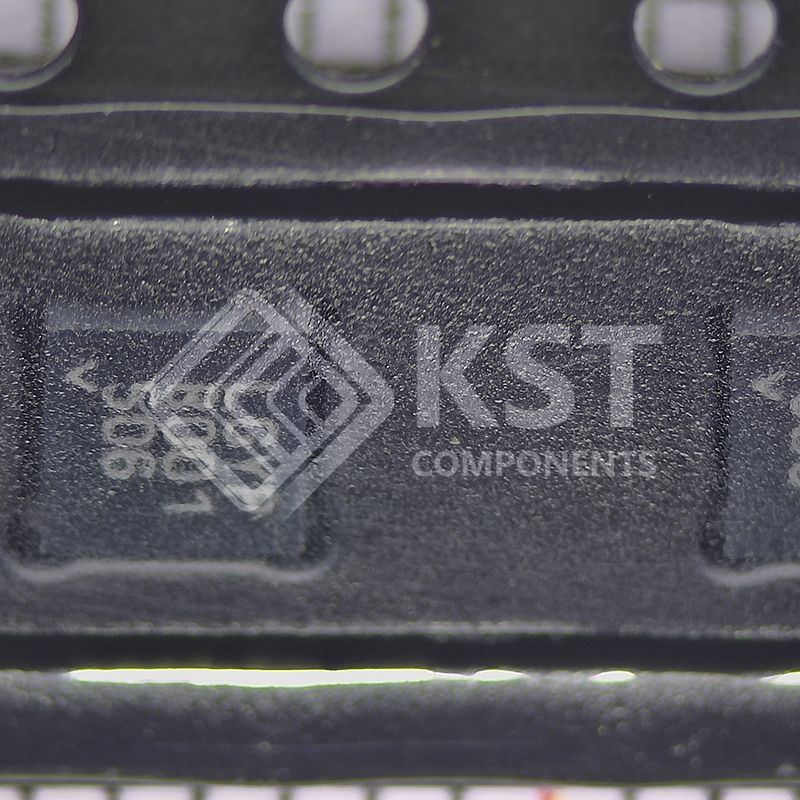

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
20V
|
|
|
Voltage - Output (Min/Fixed) |
0V
|
|
|
Voltage - Output (Max) |
15V |
|
|
Voltage Dropout (Max) |
0.45V @ 500mA
|
|
|
Current - Output |
500mA |
|
|
Current - Quiescent (Iq) |
20 µA
|
|
|
Current - Supply (Max) |
25 mA
|
|
|
PSRR |
117dB ~ 53dB (120Hz ~ 10MHz)
|
|
|
Control Features |
Enable, Power Good, Soft Start
|
|
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
10-WFDFN Exposed Pad
|
|
|
Supplier Device Package |
10-DFN (3x3)
|
|
|
Base Product Number |
LT3045 |
