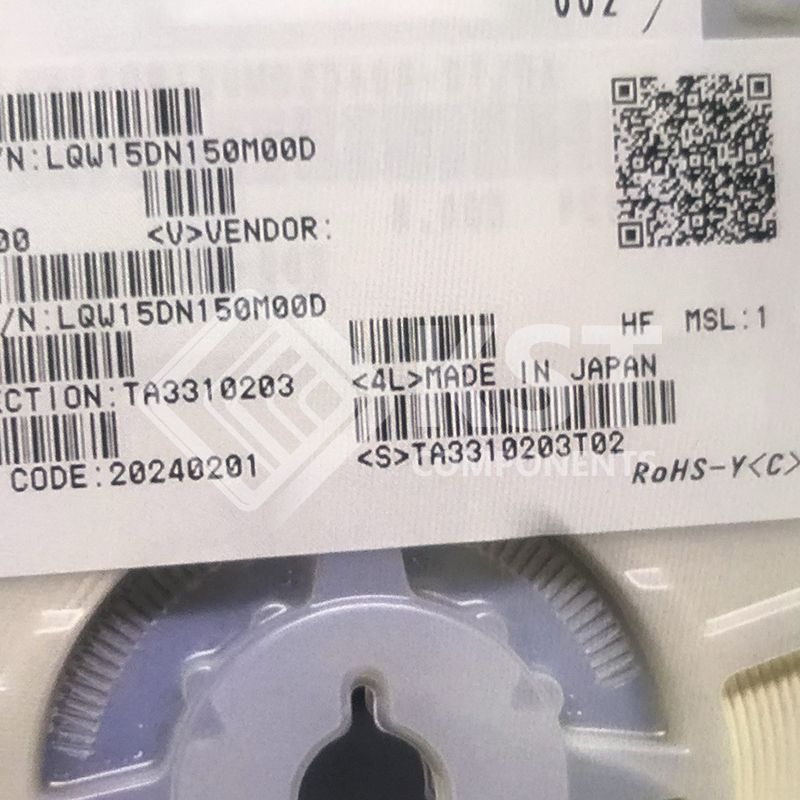

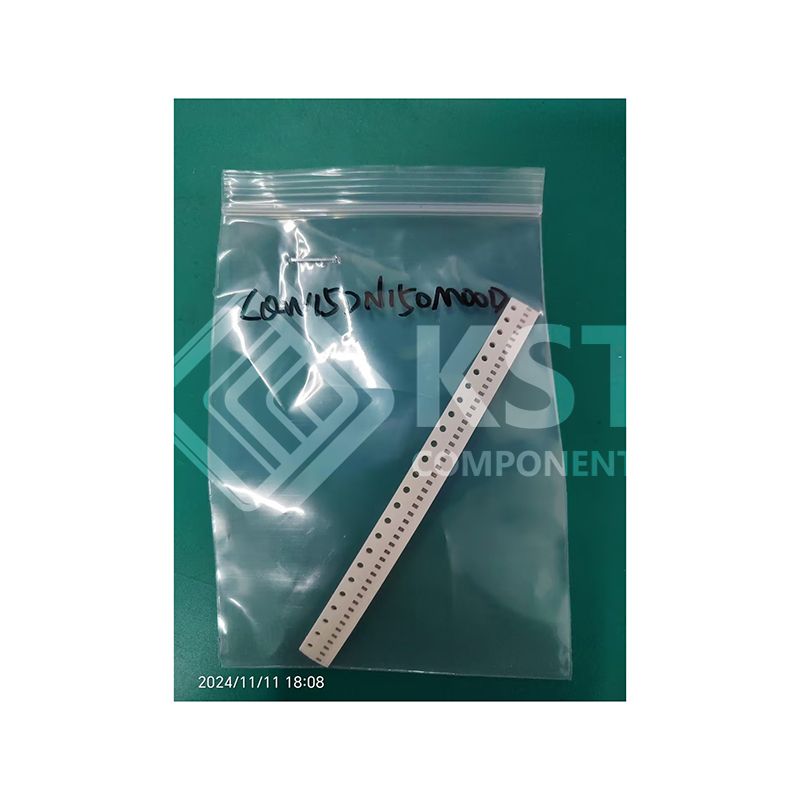

LQW15DN150M00D
Part Number:
LQW15DN150M00D
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 15UH 100MA 6.555OHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQW15 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|

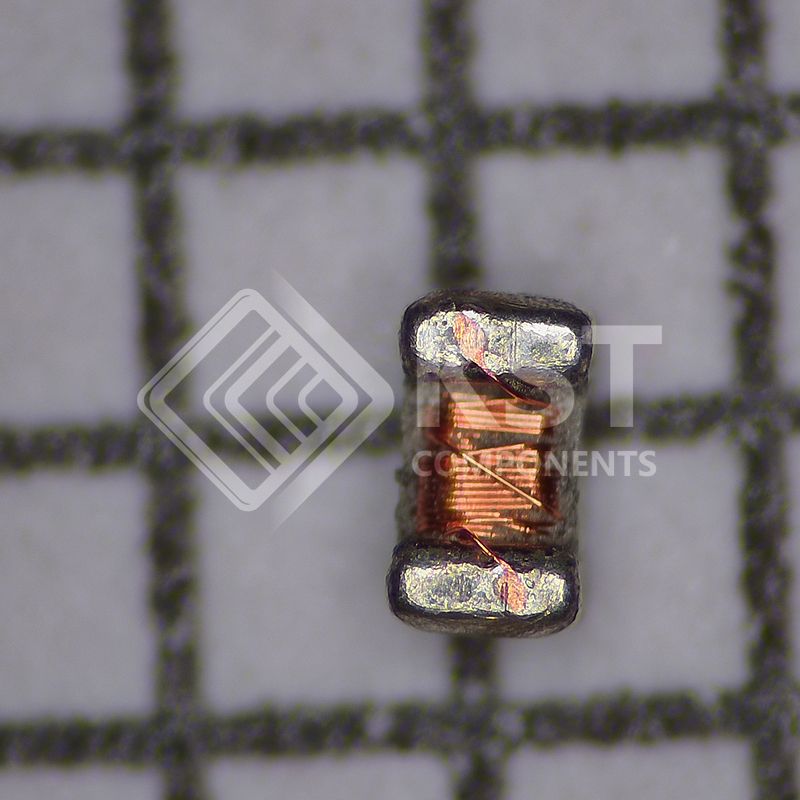

Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
15 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
100 mA |
|
|
Current - Saturation (Isat) |
100mA
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
6.555Ohm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
20MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Inductance Frequency - Test |
10 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|

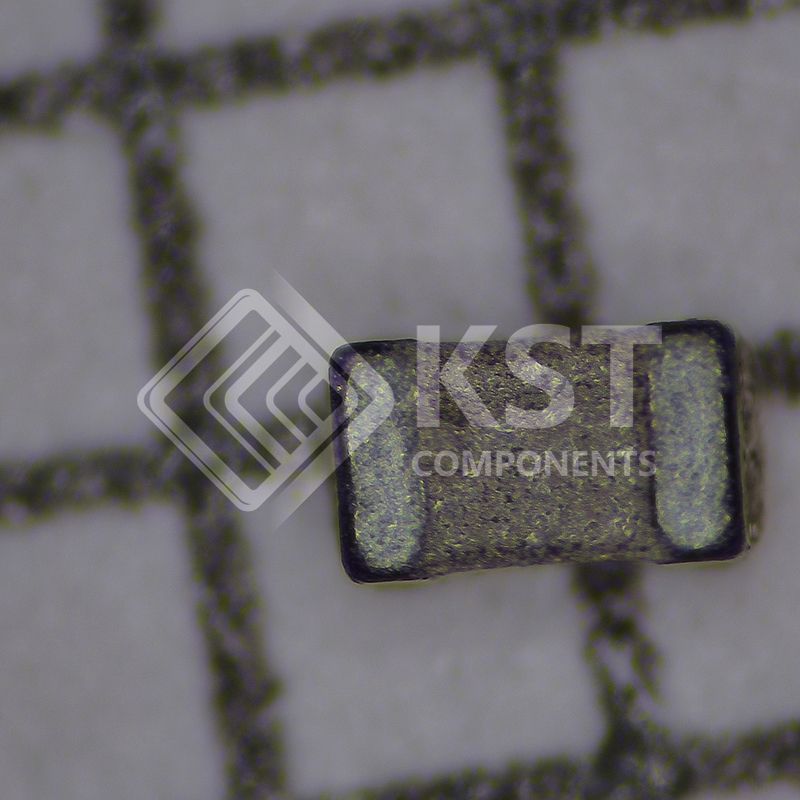

Package / Case |
0402 (1005 Metric)
|
|
|
Supplier Device Package |
0402
|
|
|
Size / Dimension |
0.043" L x 0.026" W (1.10mm x 0.65mm)
|
|
|
Height - Seated (Max) |
0.028" (0.70mm)
|
|
|
Base Product Number |
LQW15DN |
