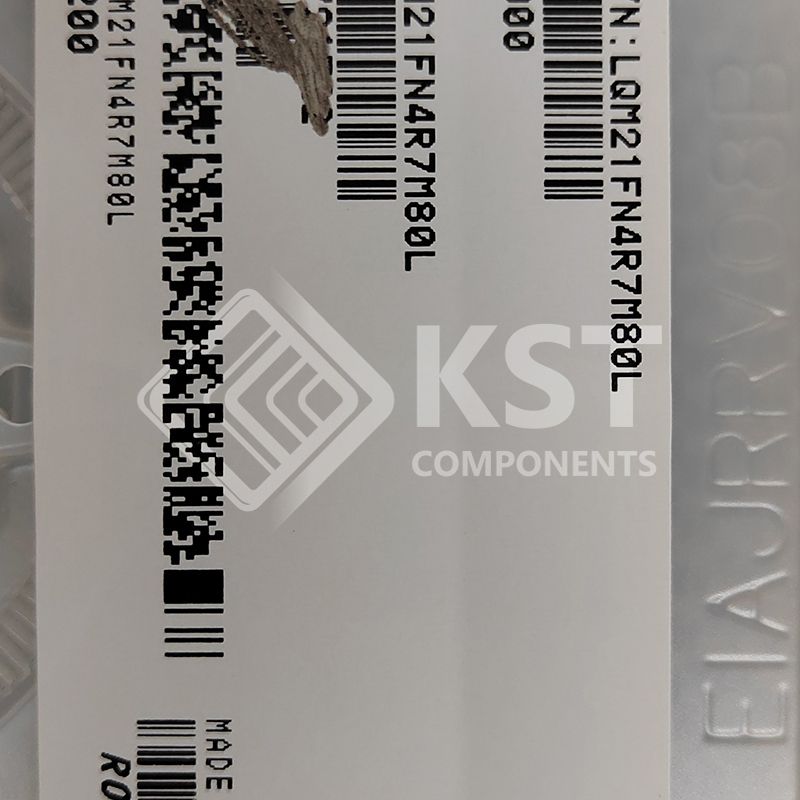

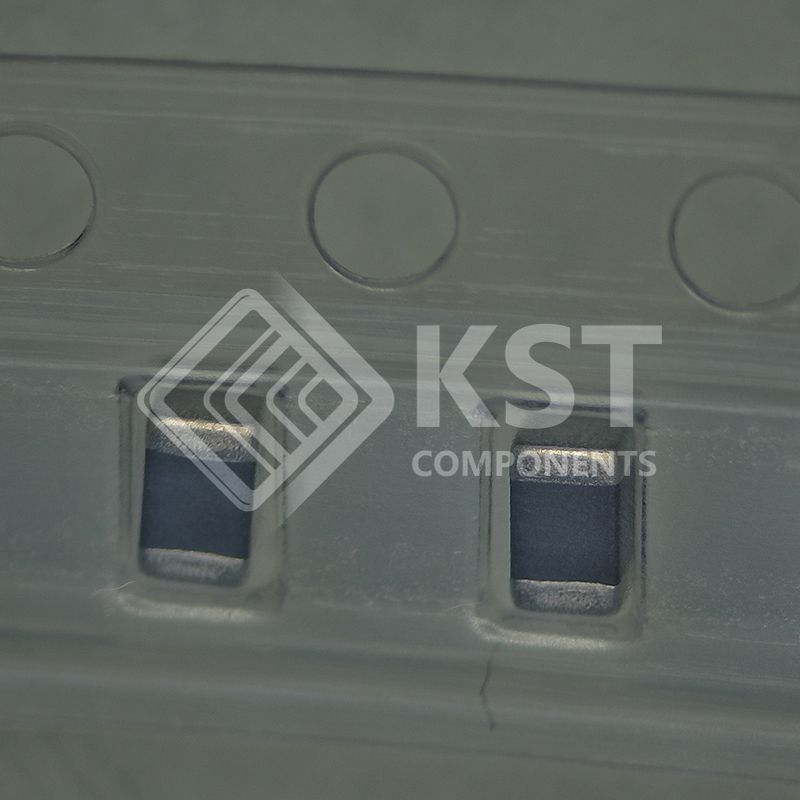

LQM21FN4R7M80L
Part Number:
LQM21FN4R7M80L
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AerosUSA
Description:
FIXED IND 4.7UH 120MA 234MOHM SM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Murata Electronics |
|
|
Series |
LQM21 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Multilayer
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
4.7 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
120 mA |
|
|
Current - Saturation (Isat) |
120mA
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
234mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
25MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
1 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0805 (2012 Metric)
|
|
|
Supplier Device Package |
0805 (2012 Metric)
|
|
|
Size / Dimension |
0.079" L x 0.049" W (2.00mm x 1.25mm)
|
|
|
Height - Seated (Max) |
0.041" (1.05mm)
|
|
|
Base Product Number |
LQM21FN |
